QS1L03AA0MA01S0F

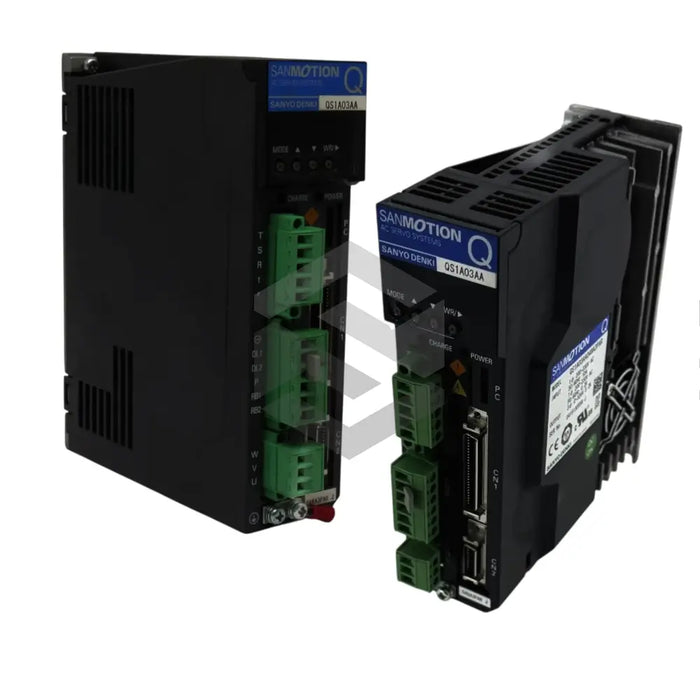

The QS1L03AA0MA01S0F servo amplifier by Sanyo Denki is part of the Q SANMOTION Servo Amplifiers line, designed for precise speed, torque, and position control in industrial automation. Encased in a lightweight ABS resin housing weighing 1.3 kg, it measures 150 mm height, 50 mm width, and 130 mm depth for compact installation. The unit supports a storage temperature of –20 to +65°C and withstands shock resistance up to 98 m/s² for two rotations (vertical), ensuring robustness during transport and handling. Featuring a five-digit LED display with pressure-sensitive keys, operators gain clear real-time feedback and diagnostic data. The amplifier integrates an air blower to maintain optimal internal temperatures, enhancing continuous operation. Designed for single-phase AC operation, it accepts 200–230 V ±10%/–15%, 50/60 Hz ±3 Hz input power.

Performance is driven by the high-efficiency IGBT PWM sinusoidal drive control, delivering smooth current waveforms and low harmonics. A dynamic brake built-in feature enables rapid deceleration and safe stopping under load. Airflow direction is optimized right-to-left, inside-to-outside, requiring a minimum clearance for proper ventilation. Comprehensive protection functions include overcurrent, overload, overvoltage, and amplifier overheat safeguards to prevent damage during transient events. Vibration resistance up to 24.5 m/s² in any direction and shock resistance ensure stable performance in demanding environments. The terminal arrangement (T, S, R, r, t, DL1, DL2, RB1, RB2, W, V, U) facilitates straightforward wiring for mains, motor, and control connections.

Engineered for reliability, the QS1L03AA0MA01S0F supports vertical installation orientation and operates seamlessly with Q series servo motors for integrated system design. Its robust ABS resin material offers resistance to mechanical wear, while the applied shock and vibration ratings reduce downtime and maintenance needs. A 12-month warranty from Wake Industrial underscores the manufacturer’s confidence in durability. Compact dimensions and lightweight construction simplify retrofitting and space-constrained layouts in assembly lines, robotics, and packaging machinery. This amplifier is ideal for vibration-sensitive applications requiring consistent performance and easy monitoring.
