QS1L03AC

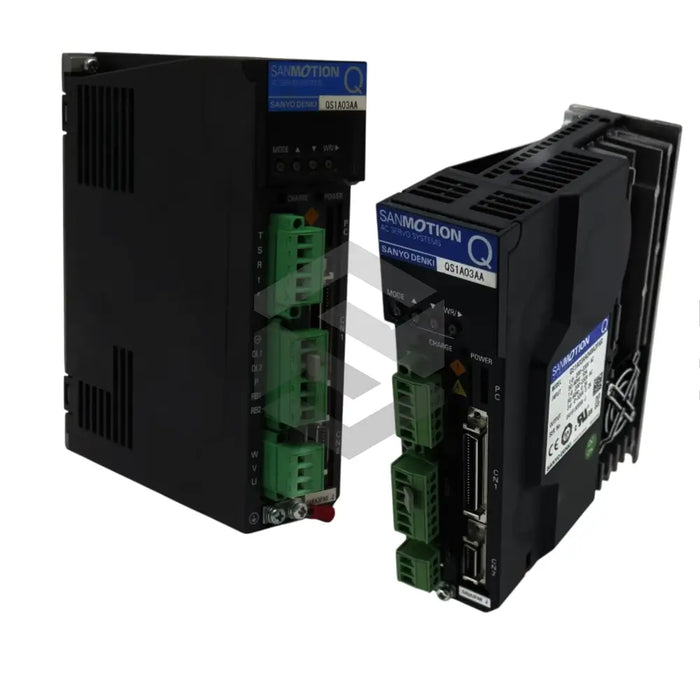

The Sanyo Denki QS1L03AC servo amplifier is a high-performance component in the Q SANMOTION Servo Amplifiers series, designed for advanced industrial automation applications. This device utilizes IGBT PWM control with sine wave drive to ensure smooth and precise motor operation under varying load conditions. Forced air cooling provides effective thermal management during continuous operation, maintaining stability in demanding environments. With a wide voltage range of 0 to 326V and compatibility with both 50 Hz and 60 Hz power supply frequencies, the QS1L03AC offers flexibility for global installations. Its streamlined panel-mount form factor simplifies integration into existing control cabinets and machinery.

The QS1L03AC delivers a suite of technical specifications optimized for servo control: it accepts a command voltage of 2.0V at 1000 min⁻¹ frequency rate for precise speed and torque commands, and it features an input resistance of 10 kΩ for signal conditioning. The amplifier’s nominal current rating of 30A supports sustained motor drive, while its peak output current at 150% of standard rating accommodates brief overloads. Continuous output current reaches 5.2A, enabling medium-power servo motors to operate effectively. The device’s frame size matches standard 30A servo amplifiers, and built-in analog/digital interface options facilitate feedback integration. Installation is achieved via panel mount hardware, and it carries an industrial grade environmental rating to withstand factory floor conditions. Core protection features include overcurrent, overvoltage, and thermal shutdown, safeguarding both amplifier and motor.

Operational performance has been engineered for reliability: the amplifier functions across an operating temperature range of 0 to 55°C and can be stored between -20 to +65°C without degradation. Humidity tolerance under 90% RH (non-condensing) ensures consistent performance in varied climates, while vibration resistance of 0.5G and shock resistance of 2G protect internal components from mechanical stress. The unit has been tested for two-hour vibration endurance in the X, Y, and Z axes, and it operates at elevations up to 200m above sea level. Forced air cooling further prevents thermal shutdown during high-duty cycles. Input frequency flexibility (50/60 Hz) and a wide voltage range allow seamless integration with industrial power systems.

System integration is simplified by adherence to industry standards: the QS1L03AC is IP20 classified when configured as specified, making it compatible with sealed control enclosures. It communicates seamlessly with standard servo motors via its servo motor interface, and it can be paired with higher-level automation controllers for coordinated motion tasks. Target applications include CNC machining, robotic assembly, packaging machinery, and general industrial automation where precise velocity, torque, and position control are essential. The robust design and comprehensive protection suite make the QS1L03AC servo amplifier an ideal choice for engineers seeking reliable, high-performance servo control in challenging environments.
