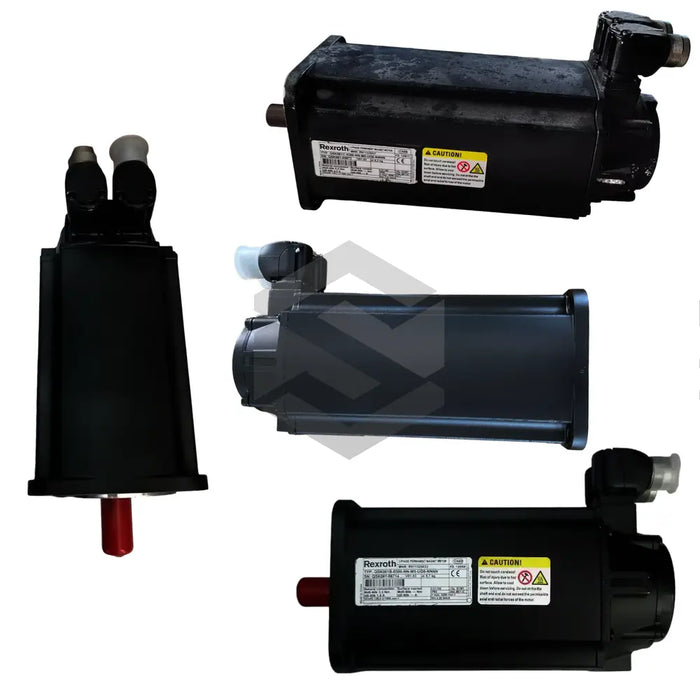

QSK075C-0300-NN-M5-UGO-NNNN
The QSK075C-0300-NN-M5-UGO-NNNN servo motor from Bosch Rexroth Indramat is a precision actuator in the acclaimed QSK Servo Motors series, designed for demanding industrial automation tasks. This synchronous servo motor delivers a high Holding Torque of 23.00 Nm and achieves a Maximum Velocity of 5,000 min⁻¹, enabling rapid acceleration and accurate positioning. Encased to Degree Of Protection (iec 60529) IP65 standards, it ensures robust defense against dust ingress and low-pressure water jets. Weighing just Weight of 16.4 kg, the unit offers an optimized power-to-weight ratio for streamlined machinery integration. Its compact Frame Size 075 and Frame Length C dimensions facilitate installation in confined spaces without sacrificing performance or durability.
Performance is enhanced by an advanced Encoder Technology Optical system with Distinguishable Revolutions of 4,096 (M5), delivering high-resolution feedback for precise motion control. Natural convection Cooling maintains optimal thermal conditions under continuous operation, while a rotatable 240° Connection Type plug allows flexible cable routing. The rotor’s Moment Of Inertia Of The Rotor of 0.00352 kg·m² ensures agile response to control inputs, and an Encoder Max. Current Consumption of 60 mA minimizes auxiliary power draw. The robust Shaft Type plain shaft with sealing ring enables direct mechanical coupling and simplifies maintenance. With a standardized Winding specification of 0300, the motor integrates seamlessly with common drive systems, reducing commissioning time.
Engineered for long-term reliability, the QSK075C-0300-NN-M5-UGO-NNNN operates reliably in ambient temperatures from Surrounding Air Temperature During Operation 0 – 40 °C and withstands industrial vibration and shock. The high ingress protection and sealed shaft interface ensure consistent performance in harsh environments such as packaging lines, CNC machinery, and robotic cells. Its modular design supports standard mounting interfaces, enabling straightforward retrofits or system upgrades without custom adaptation. With a documented Sound Pressure Level of 61.1 dB[A] (±3), the motor meets ergonomic requirements for operator safety and comfort. This combination of precision, durability, and ease of integration makes the QSK servo motor ideal for a wide range of industrial automation applications.
