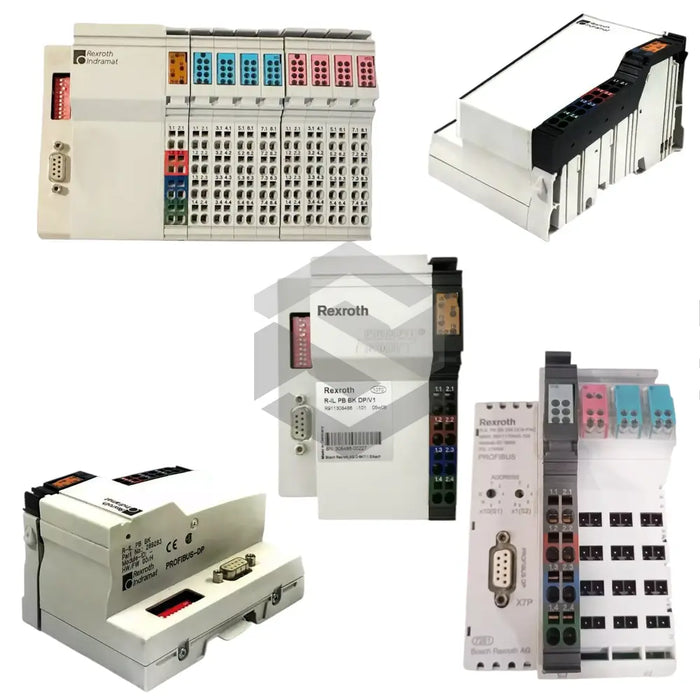

S image of R-IL PB BK

R-IL PB BK

by Bosch Rexroth Indramat
$594.63 - $1,727.58
$594.63
$594.63 - $1,727.58
$594.63

The R-IL PB BK from Bosch Rexroth Indramat features 8 digital inputs and 4 digital outputs. Part of the R-IL PROFIBUS Bus Couplers series, it supports up to 61 local bus devices and achieves data speeds up to 12 Mbps. This bus coupler operates within -25 °C to 60 °C and provides IP20 protection.

It uses a spring-cage connection method, dissipates only 1.7 W, and weighs 320 g. Each output channel delivers up to 500 mA. It connects via a 9-pin D-SUB interface for reliable PROFIBUS DP communication.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Connection Method

Spring-cage connection

Data Transmission Speed

9.6 kbps to 12 Mbps

Degree Of Protection

IP20

Dimensions

Width 80 mm, Height 119.8 mm, Depth 71.5 mm

Interface Type

PROFIBUS DP with 9-position D-SUB female connector

Maximum Output Current Per Channel

500 mA

Maximum Process Data

488 Bytes per station

Nominal Input Voltage

24 V DC

Number Of Digital Inputs

8

Number Of Digital Outputs

4

Number Of Supported Local Bus Devices

61

Operating Temperature Range

-25°C to 60°C

Power Dissipation

1.7 W

Supply Voltage Range

19.2 V DC to 30 V DC

Weight

320 g
