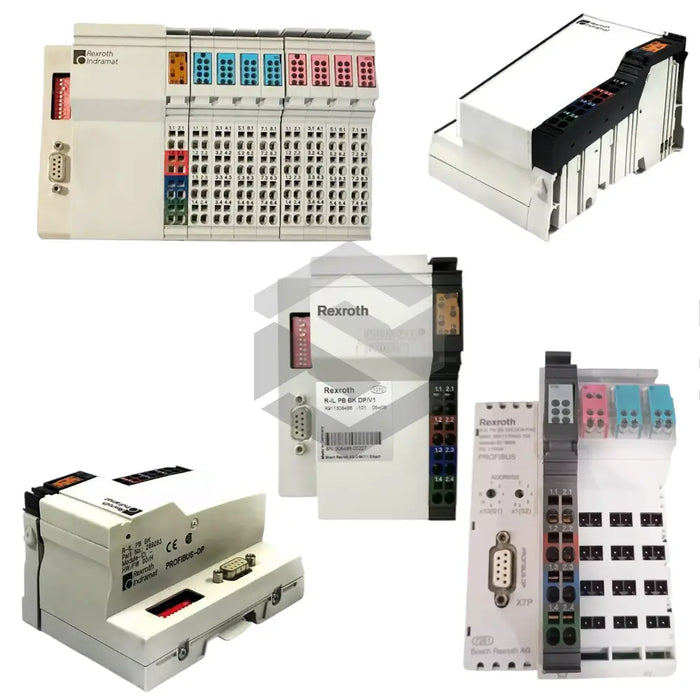

The R-IL PB BK DI8 DO4/CN-PAC is a bus coupler from Bosch Rexroth Indramat's R-IL PROFIBUS Bus Couplers series, operating on 24 V DC power. Featuring 8 digital inputs, 4 digital outputs and IP20 protection, it supports up to 63 local bus nodes with automatic PROFIBUS DP transmission speeds up to 12 MBit/s. A D-sub 9-pin interface and compact 80 x 120 x 71.5 mm housing ensure easy integration.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Connection Type
D-sub 9-pin socket
Degree Of Protection
IP20
Digital Inputs
8
Digital Outputs
4
Dimensions
80 x 120 x 71.5 mm
Fieldbus System
PROFIBUS DP
Humidity In Operation
5% to 90% (non-condensing)
Input Voltage Range ('0' Signal)
-30 V DC to 5 V DC
Input Voltage Range ('1' Signal)
15 V DC to 30 V DC
Maximum Local Bus Nodes
63 (including 2 on fieldbus coupler)
Maximum Operation Temperature
-25°C to +55°C
Maximum Output Current Per Channel
500 mA
Power Supply Voltage
24 V DC
Transmission Speed
9.6 kBit/s to 12 MBit/s (automatic detection)
Weight
320 g
