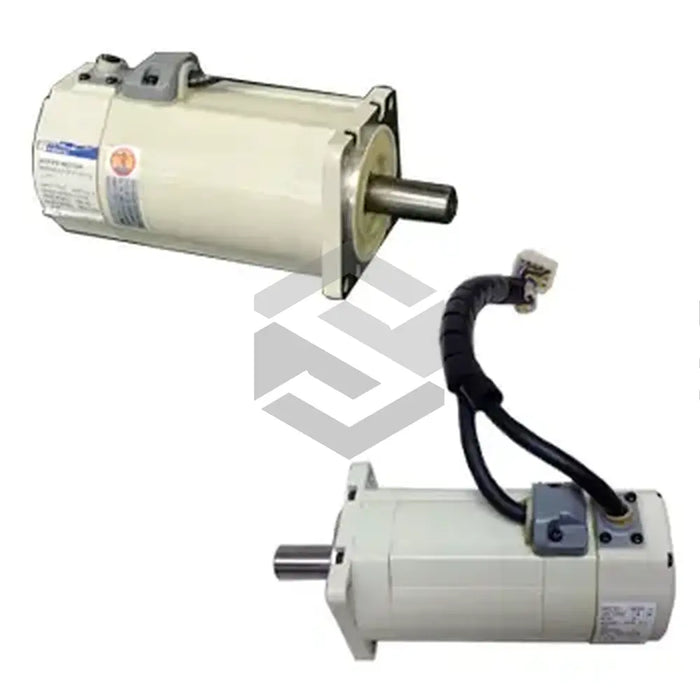

The Bosch Rexroth Indramat R113079543 (MMD042A-030-EGO-CN) is a specially engineered AC servo motor. Designed to pair with an AC servo drive from the same manufacturer, it comes with both brake and non-brake versions. The servo motor's operation and storage should be in a controlled environment — free from direct sunlight and within appropriate humidity and temperature limits — to avoid damage. Its installation needs to be correct, ensuring power and feedback connections are properly mounted. Using the AC servo motor for tasks outside its specified applications can lead to malfunctions.
The R113079543 (MMD042A-030-EGO-CN) exhibits impressive weight and technical specifications. Its weight differs depending upon the presence of a brake — with brake, 2.0 kg, and without brake, 1.6 kg. The rotor moment of inertia also varies between both versions at 0.4 x 10-4 kgm² and 0.37 x 10-4 kgm² respectively. This servo motor works optimally under conditions up to 1000 meters above sea level. Storage and transport temperature for this model must be kept between -20 and +40 degrees Celsius, and operations are suitable in an ambient temperature of a 0 to 40 degrees Celsius range. It offers a continuous torque at standstill of 1.3 Nm, while its maximum theoretical torque reaches up to 3.36 Nm.
