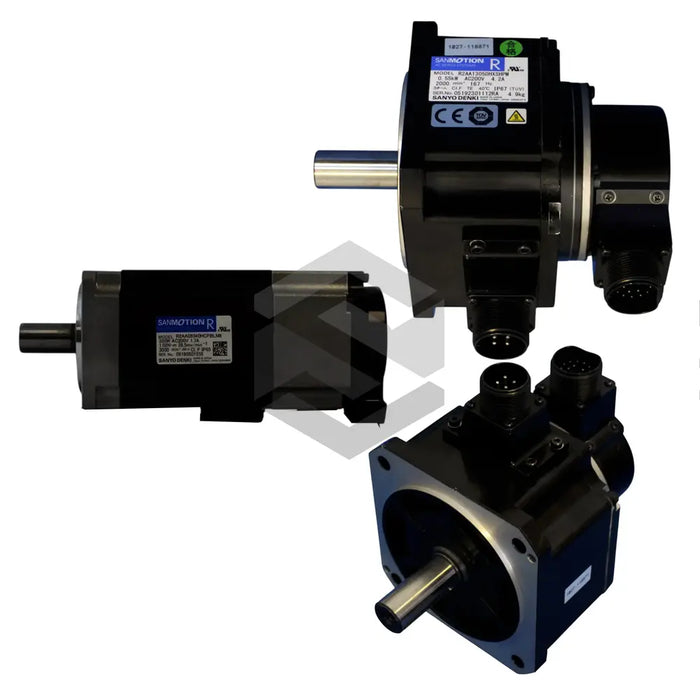

S image of R2AA06020FXPN3M

R2AA06020FXPN3M

by Sanyo Denki
$5,995.34 - $6,594.87
$5,995.34
$5,995.34 - $6,594.87
$5,995.34
The R2AA06020FXPN3M servo motor from Sanyo Denki’s R SANMOTION Servo Motors series delivers 200 W of rated output at a 3000 rpm rated speed and achieves a peak torque at stall of 1.18 N·m with a continuous stall torque of 0.686 N·m. It provides a rated torque of 0.637 N·m and operates at a rated armature current of 1.5 Arms with a phase resistance of 2.7 Ω. The motor’s torque constant of 0.559 N·m/Arms ensures precise current-to-torque conversion, while its compact design features a 60-mm flange, 0.96 kg mass including encoder, and brake static friction torque of 1.37 N·m, making it ideal for high-dynamic applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Brake Mass

0.27 kg

Brake Static Friction Torque

1.37 (minimum)

Continuous Torque At Stall

0.686 N·m

Mass (including Encoder)

0.96 kg

Peak Torque At Stall

1.18 N·m

Phase Resistance

2.7 Ω

Rated Armature Current

1.5 Arms

Rated Output

200 W (0.2 kW)

Rated Power Rate

19 kW/s

Rated Speed

3000 rpm

Rated Torque

0.637 N·m

Rotor Inertia (no Encoder)

0.0627 ×10⁻⁴ kg·m²

Rotor Inertia (with Encoder)

0.0033 ×10⁻⁴ kg·m²

Torque Constant

0.559 N·m/Arms
