R406-011E93

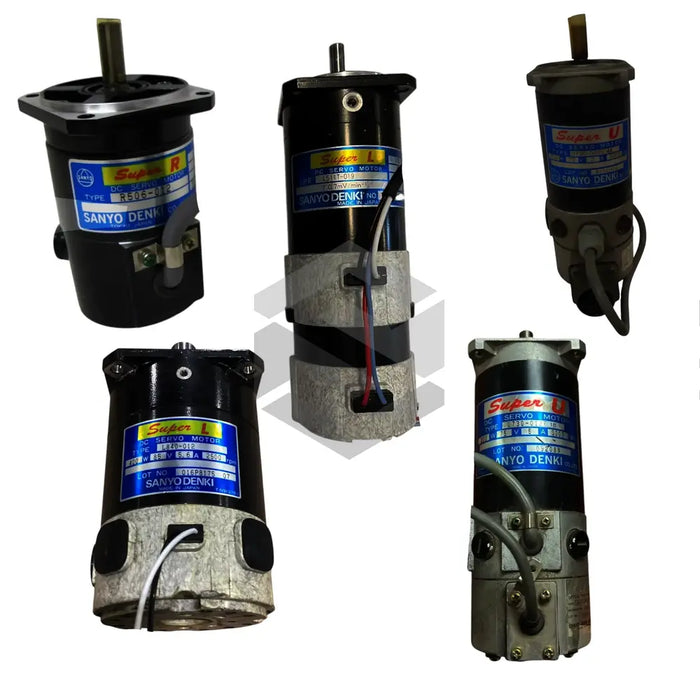

The Sanyo Denki R406-011E93 servo motor is a precision actuator within the Super DC Servo Motors series by Sanyo Denki, designed to deliver reliable performance in demanding industrial applications. This unit features a Power Output of 23W at DC 24V operation as well as a Rated Voltage of 200 V AC, providing flexibility for diverse power supply architectures. With a Rated Speed of 3000 RPM and a Rated Torque of 15 Nm, the R406-011E93 offers consistent rotational performance for precise motion control. The compact Frame Size of R406 series and Shaft Diameter of 20 mm ensure compatibility with standard mounting interfaces and mechanical couplings.

Equipped for high-efficiency operation, this AC Servo Motor employs a robust Resolver feedback device for accurate position and velocity measurement under dynamic load conditions. The motor sustains a Peak Torque of 30 Nm while drawing a Rated Current of 2.5 A, demonstrating its capacity to handle transient loads and accelerations. Its winding and magnetic design optimizes thermal performance, supporting continuous duty cycles without performance degradation. The combination of a high power density and a low moment of inertia delivers rapid acceleration and precise settling times across the motor’s operating range.

Operational resilience is assured through the IP55 Environmental Rating, which protects against dust ingress and low-pressure water jets for reliable use in factory environments. Designed for Continuous Operation, the motor maintains thermal balance in ambient temperatures from -10 °C to +50 °C, enabling consistent performance on production lines. The Standard face mounting simplifies installation in automation equipment, while the flange interface ensures secure alignment and torque transmission. Low vibration and noise levels further enhance its suitability for closed-loop applications requiring smooth, uninterrupted motion.

Integration of the R406-011E93 into industrial automation systems is seamless, thanks to its standard mechanical and electrical interfaces. The motor’s compatibility with common drive controllers and its flange mounting support straightforward retrofit into existing machinery. Typical applications include pick-and-place robots, indexing tables, packaging equipment, and precision assembly stations. With its combination of power, control accuracy, and environmental robustness, the R406-011E93 delivers a cost-effective solution for engineers seeking high-performance servo motion in industrial automation.
