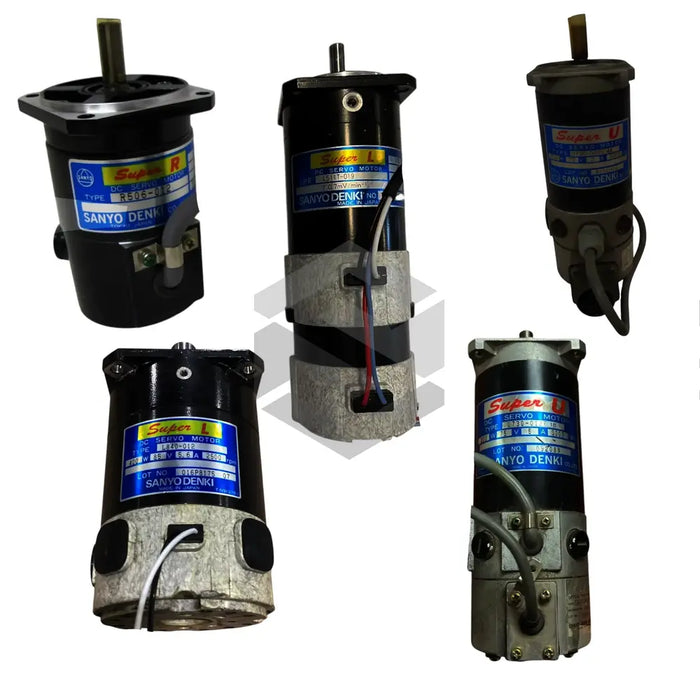

S image of R506BT-012E17

R506BT-012E17

by Sanyo Denki
$2,499.88 - $2,499.88
$2,499.88
$2,499.88 - $2,499.88
$2,499.88

In Stock, Ships 1 - 3 Days

The Sanyo Denki R506BT-012E17 from the Super DC Servo Motors series is a robust DC servo motor delivering a rated output of 500 W and a rated torque of 1.96 Nxm at a rated rotating speed of 2,500 min^-1, with a maximum rotating speed of 3,000 min^-1 for demanding industrial automation applications. It operates at a rated armature voltage of 80 V and a rated armature current of 7.6 A, providing reliable continuous performance and a continuous stall torque of 2.16 Nxm. Featuring an instantaneous maximum torque of 16.7 Nxm and a torque constant of 0.287 Nxm/A, it ensures powerful short bursts when needed. The motor offers rapid response characteristics with a mechanical time constant of 4.1 ms and an electrical time constant of 1.9 ms, while its armature winding resistance of 26 Ω and armature inductance of 4.1 mH support stable operation under variable loads.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Armature Inductance

4.1 mH

Armature Winding Resistance

26 ?

Continuous Stall Torque

2.16 Nxm

Electrical Time Constant

1.9 ms

Instantaneous Maximum Torque

16.7 Nxm

Maximum Rotating Speed

3,000 min?

Mechanical Time Constant

4.1 ms

Rated Armature Current

7.6 A

Rated Armature Voltage

80 V

Rated Output

500 W

Rated Rotating Speed

2,500 min?

Rated Torque

1.96 Nxm

Stall Armature Current

7.6 A

Torque Constant

0.287 Nxm/A

Voltage Constant

30.0x10?^3 V/min?
