R900020153

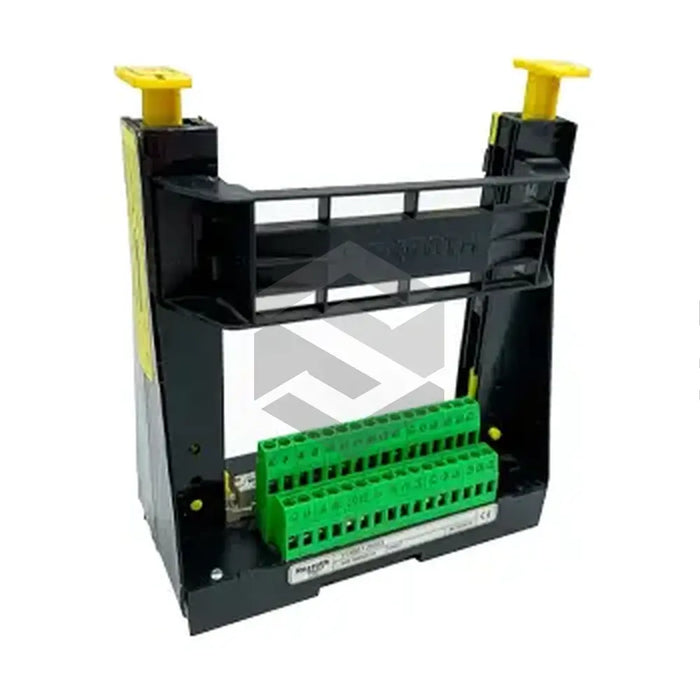

The R900020153 (VT 3002-1-2X-32D), produced by Bosch Rexroth Indramat, is a Euro card holder that offers a stable base for connection of field devices. It features a lightweight design weighing 0.5 Kg for singular card configuration and 0.8 Kg for dual Euro-format. The part can operate in varying climates with a permissible temperature range of -20 to +70°C, reducing the likelihood of hysteresis due to changes in output pulse width. The card holder, which can be either screwed or snapped in place, employs a 32-pin socket connector and tolerates a maximum terminal voltage of 48 VAC/DC.
The robust design of the R900020153 (VT 3002-1-2X-32D) involves a locking mechanism actuated by a lever, allowing the ease of fastening or unfastening of the card. The holder's terminal is secured by terminal screws and can facilitate vertical adapter mounting to the hat rail. For successful installation, it's necessary to depress the yellow levers before inserting the card fully into the slot. The removal of the card is facilitated by the operated unlocking lever. The part also features a removable and reciprocally attachable connection web located between the two guide rails, which aids in cable connection during system setup.
