R900033823

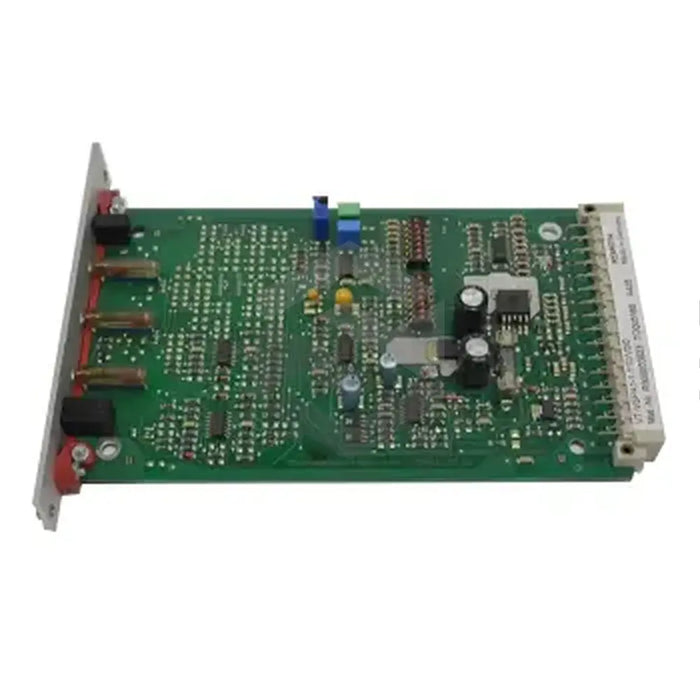

The R900033823 (VT-VSPA1-1-1X) is a high-quality proportional valve amplifier crafted by Bosch Rexroth Indramat. Part of the esteemed VT-VSPA1 series, this analog unit benefits from a process connection achieved through a 32-pin male connector. It is characterized by a current rating of 1.8A and a solenoid current output spanning 800 – 1600mA. With a voltage and power rating of 24VDC and 50VA respectively, the device runs on an operating voltage of +24 VDC +40% - 5%. It is designed to perform optimally at a frequency rating of 250 Hz and within a temperature range of 0 to 50 degrees Celsius.
The proportional valve amplifier has a broad suite of features designed for user convenience and operational safety. It facilitates pressure valves for regulation control and other factory-assigned functions. Fitted with differential input, it allows the user the flexibility to switch between current input and voltage. The presence of a front plate and a multipoint connector provides an intuitive user interface, and its ramp generator can adjust up and down ramps. The device is protected against voltage supply reverse polarity and solenoid cable short circuit damage; additionally, a fail-safe mechanism detects any solenoid cable breakage. A LED indicator signals the operation readiness, adding to its operational efficacy. Small and lightweight, the unit measures 182mm in depth, 20mm in width, and 128.4mm in height and weighs around 0.1kg.
