R911170329

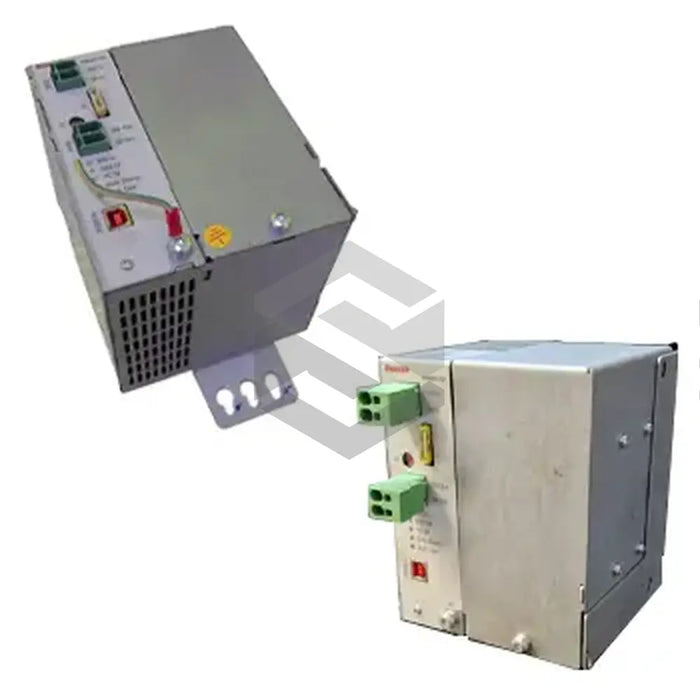

The R911170329 (VAU01.1Z-Z24-024-060-NN) is a premium-grade 24V DC IndraControl V UPS from Bosch Rexroth Indramat, designed specifically for compatibility with the Rexroth Indracontrol VPP 21.1 and VPP 21.2. With a vibration frequency range of 10-150 Hertz, as specified by EN 60068-2-6 standards, it operates at an input voltage rating of DC 24 V + AC 100...240 V, 50/60 Hz. Built as per EN 61131-2 standards, the UPS can exist at an altitude of up to 3,000 meters above sea level. The R911170329 (VAU01.1Z-Z24-024-060-NN) has an operating temperature range of +5 to +45 degrees Celsius.
The transportation and storage ambient temperature range for the R911170329 (VAU01.1Z-Z24-024-060-NN) stands at -20 to +60 degrees Celsius. It offers a nominal output voltage of DC 24V, switches in less than 1 ms, and can bridge for up to 3 minutes. A climatic class rating of 3k3 according to EN 60721 dubs it, with condensation strictly prohibited and maximum humidity rated at 80% (at 25 degrees Celsius). Appropriate threshold voltages are 15.5 V ±5% upon startup, and 20.2 V ±5% for shutdown. Weighing in right around 1 kg, the R911170329 (VAU01.1Z-Z24-024-060-NN) possesses an IP20 enclosure rating, a power consumption cap of 60 W, and integrated short-circuit protection. This UPS is part of overvoltage category 2, as stipulated in EN 60664-1 standards, and complies with EN 61000-6-2 for noise immunity considerations.
