R911170357

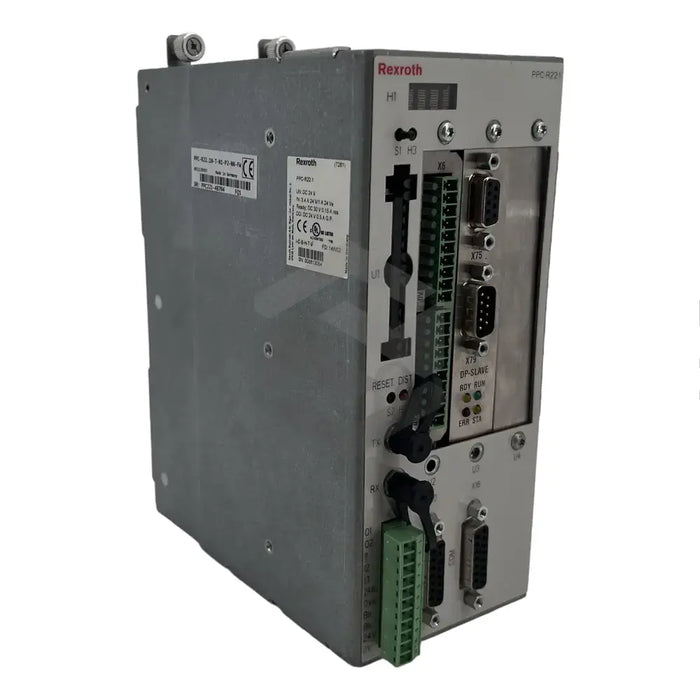

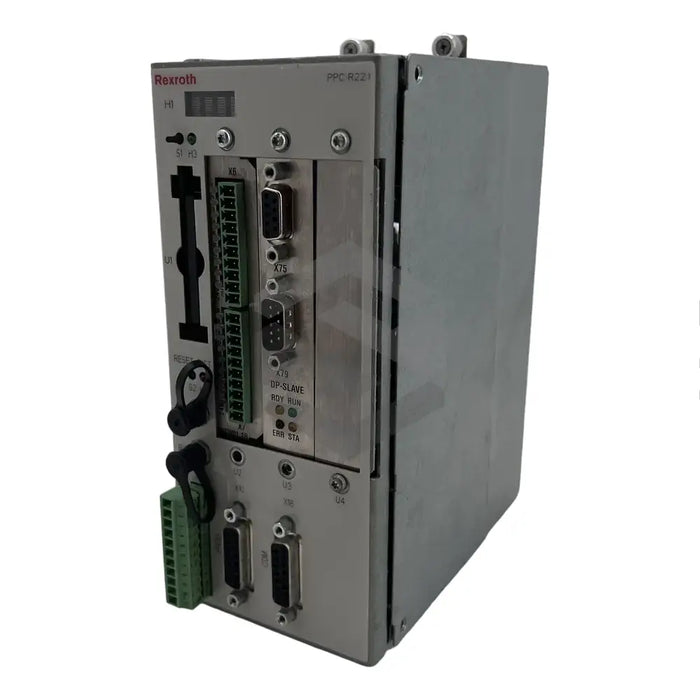

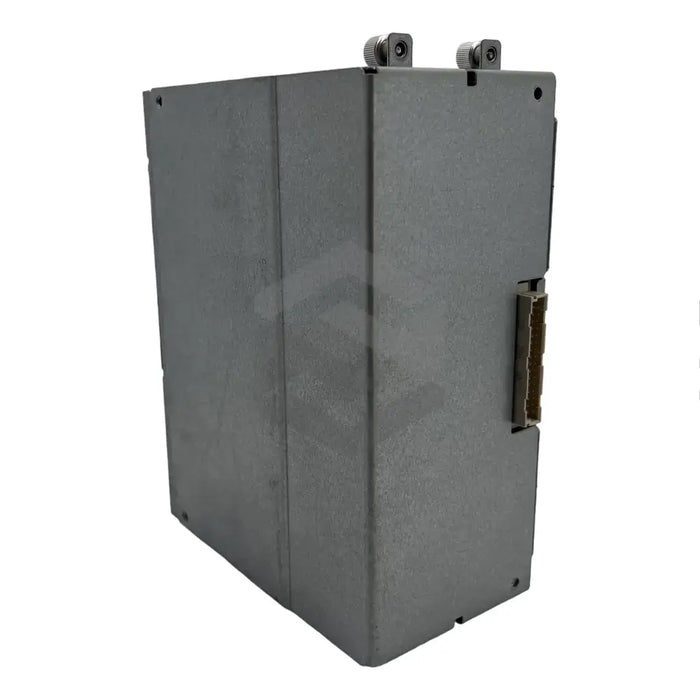

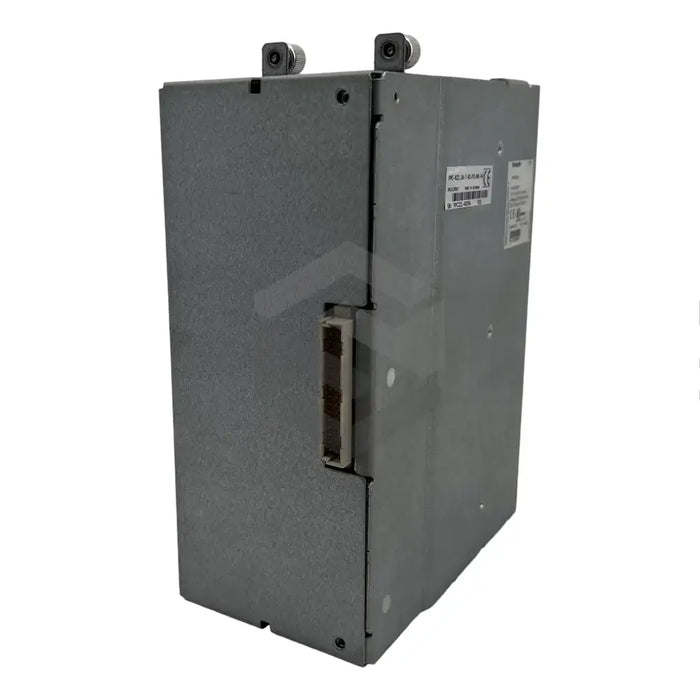

The R911170357 (PPC-R22.1N-T-N1-P2-NN-FW), a product of Bosch Rexroth Indramat, is a standalone PPC-R22.1 control that comes in a RECO 02 form. It is essential in a Bosch VisualMotion system, which is a programmable motion and logic control system that uses GPP 10 firmware. The control supports multi-axis non-coordinated or coordinated motion control; its applications span from robotics to mast electronic line shafting. The system consists of I/O modules, inline modules, VisualMotion Toolkit programming software, Rexroth IndraDrive / DIAX 04 / EcoDrive 03 drives, and the PPC-R22.1 control. The R911170357 (PPC-R22.1N-T-N1-P2-NN-FW) is engineered with three expansion slots, two of which are equipped with factory-installed modules: a PLC master module and a Profibus-DP slave module. Additionally, it features integrated communication interfaces: an Ethernet interface, a serial programming interface, a general-purpose serial interface, and an Indramat BT bus interface.
Although it doesn't include a memory module, the R911170357 (PPC-R22.1N-T-N1-P2-NN-FW) supports three current-sinking to ground type digital inputs. The digital inputs' low and high voltage ranges span from 0 to 5 Volts DC and 15 to 30 Volts DC, respectively, with a minimum input current of 10 milliamps. It also has two digital outputs, each with a maximum delay of 400 microseconds and a maximum output current level of half an Amp; they are also designed to be short-circuit proof. Power supply for the R911170357 (PPC-R22.1N-T-N1-P2-NN-FW) should be a nominal 24 Volts DC, with a compatible input range of 19.2 to 30 Volts DC. The control's rated current consumption is 1.2 Amps, it weighs approximately 1.3 kilograms, and its dimensions measure around 83.7 x 192 x 150 millimeters.
