R911170841

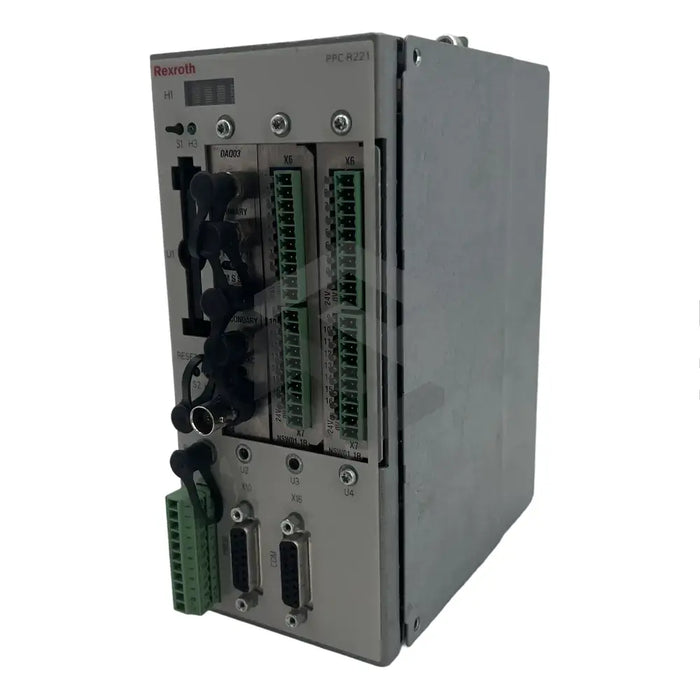

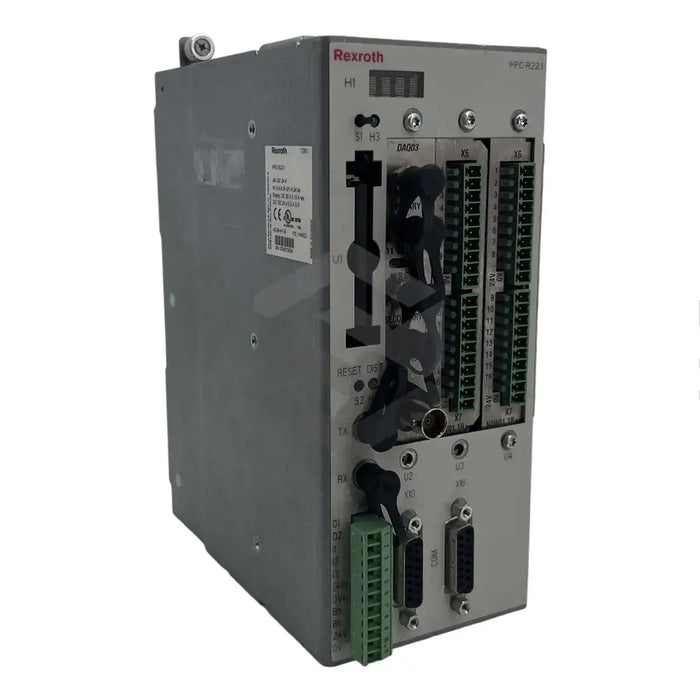

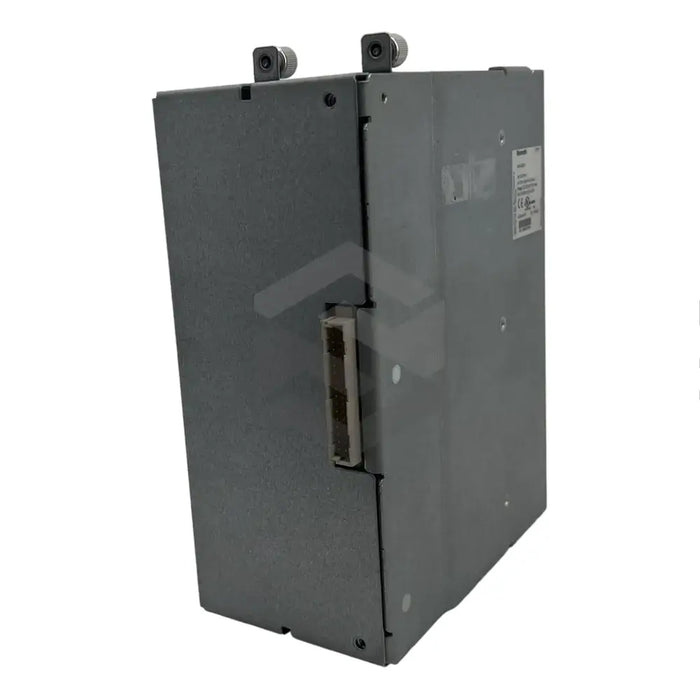

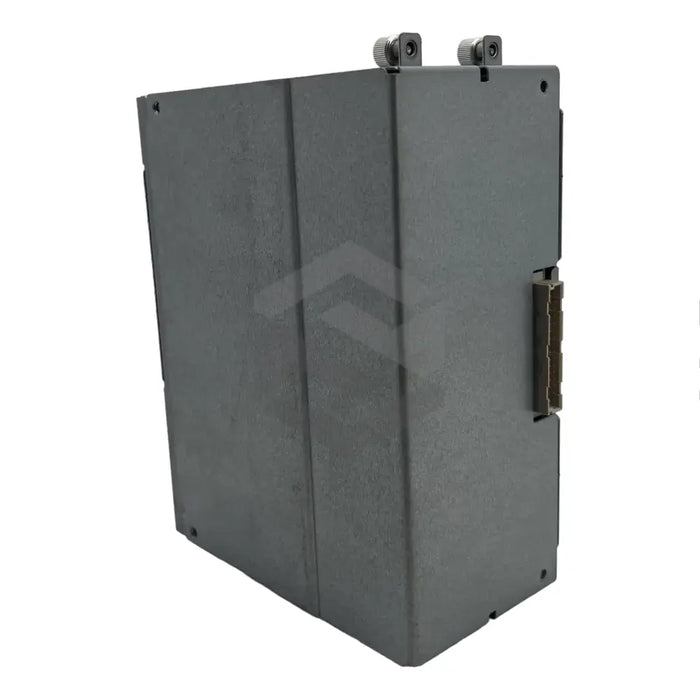

The R911170841 (PPC-R22.1N-T-Q1-N1-N2-FW) is a cutting-edge motion and logic control device by Bosch Rexroth Indramat. Situated in the leftmost slot of an RMB rack, this standalone control is characterised by an R housing design and '2' design code. It works seamlessly with several fieldbus slave interfaces, including ControlNet, Interbus, Profibus, and DeviceNet. Its DeviceNet interface comes with four LEDs for detailed diagnostics. Further complementing its functionality is a programmable limit switch interface with a PLS option card, capable of supporting two option cards simultaneously. Connections can be established through a DAQ03 card.
Offering advanced safety, this multi-axis control device provides an IP 20 degree of protection conforming to DIN VDE 0470 / EN 60529 standards. Operating through a SERCOS interface, the device facilitates high-end communication with digital servo drives. Its VisualMotion Toolkit is intertwined with the PLC software for efficient PLC logic programming. It is worthy to note that the control device, offering promising application in various systems including textile machines, should be operated entirely per specific temperature norms – ranging from 0°C to 45°C as per DIN 40 040 Class KV specifications. Users need to ensure the device is neither faulty nor damaged before use, and it always requires programming or parameterizing before start-up.
