R911171031

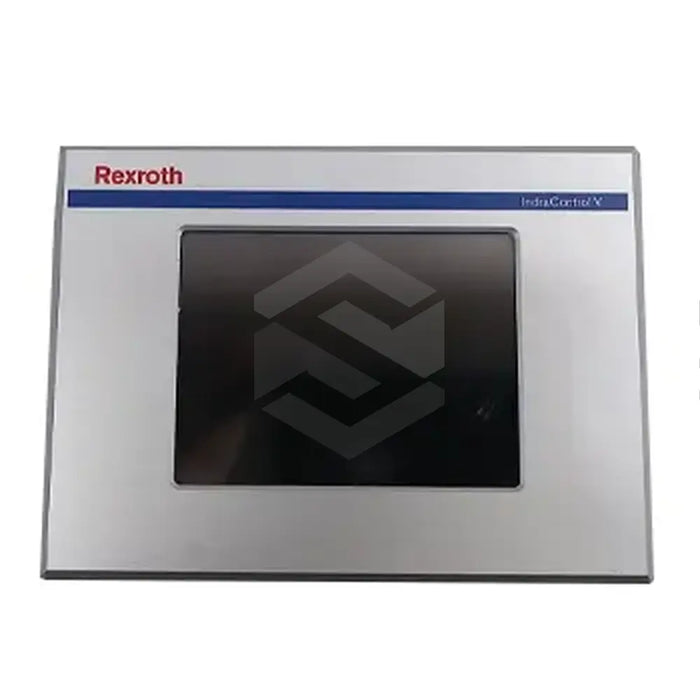

The product in focus is the R911171031 (VCP11.2ECN-003-NN-NN-PW), a 3.5” IndraControl VCP11 graphics-oriented terminal crafted by Bosch Rexroth Indramat. Its relatively light weight of 500 grams and touchscreen feature, being a 4-wire analogue resistive screen, make this device both portable and user-friendly. The display is TFT-type with a pixel resolution of 320 x 240, capable of showcasing 5 shades of grey. Some noteworthy features include its 80-degree viewing angle, temperature-responsive contrast setting, and a robust backlighting with a half-life rating of 30,000 hours. The brightness of the display is rated at 90 cd/m2, and the display area measures 57.6 x 76.8 mm.
As for the power supply, the terminal operates optimally on a 24V Direct Current supply, with a residual ripple of maximum 10%. The range of voltage rating is between 18V and 30V. The device's power consumption is 0.25A at nominal voltage (24VDC) and 0.35 A at a maximum of 30V. The power capacity of the connected load is 6W. The device houses a USB interface with a current output of 100mA/output (max). Furthermore, the product is equipped with an array of features including pre-installed firmware, different varieties of ports and connector strips, and a non-upgradable display and front panel.
