R911171110

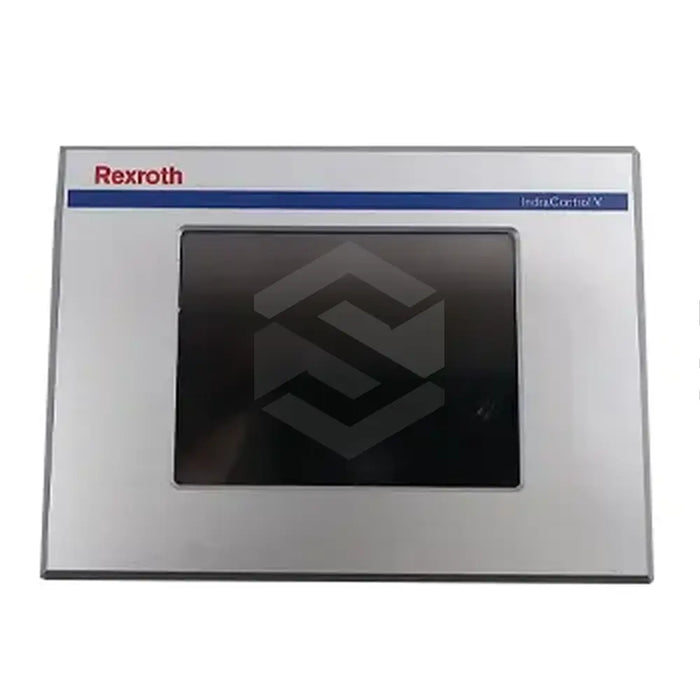

The R911171110 (VCP35.2ECN-003-NN-NN-PW) is a compact and versatile operator terminal, designed and manufactured by Bosch Rexroth Indramat. Primarily used for activating predefined machine functions, this terminal is appreciated for its adaptability to varying industrial environments. Features include a touch-sensitive interface on a front panel made from varnished aluminium, which houses application software. The terminal's secondary casing is made from quality galvanised aluminium sheeting. This terminal, weighing in at 2300 grams, is expertly crafted for flexible mounting, making it highly versatile across different applications. The front side has IP 65 standard protection, making it impervious to water jets, oils and dust accumulation and the rear side affords IP 20 standard protection.
The terminal is equipped with a 4-wire analogue resistive touchscreen which can function effectively for up to 3 million strokes. The TFT display boasts a 640 x 480 pixel resolution and a 90-degree reading angle. The backlit LCD display has a lifespan of 100,000 hours, with a 50,000-hour half-life. Importantly, the integrated protection against polarity reversal and the inbuilt self-resisting semi-conductor fuse ensure the safe operation of the terminal. Power is supplied by a 24 V DC voltage with a 19.2-watt load. Maximum and minimum operational voltages are 30 V and 18 V respectively.
