R911171113

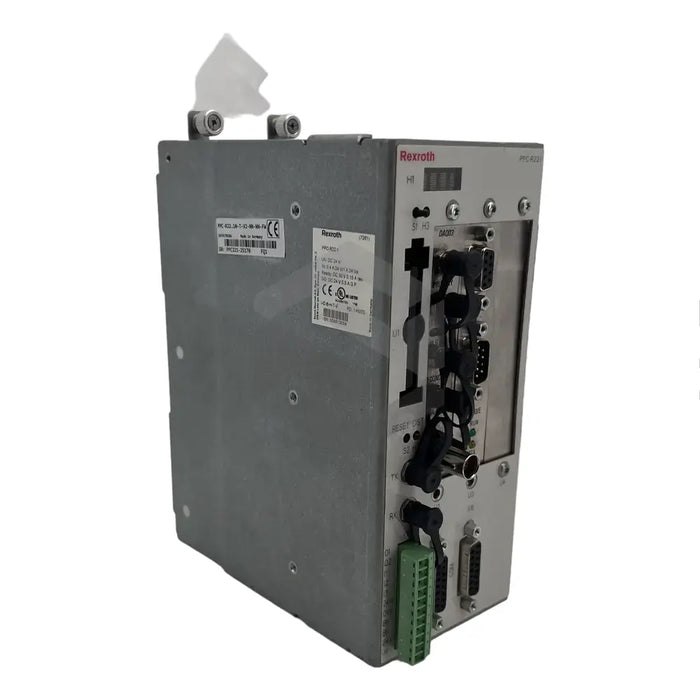

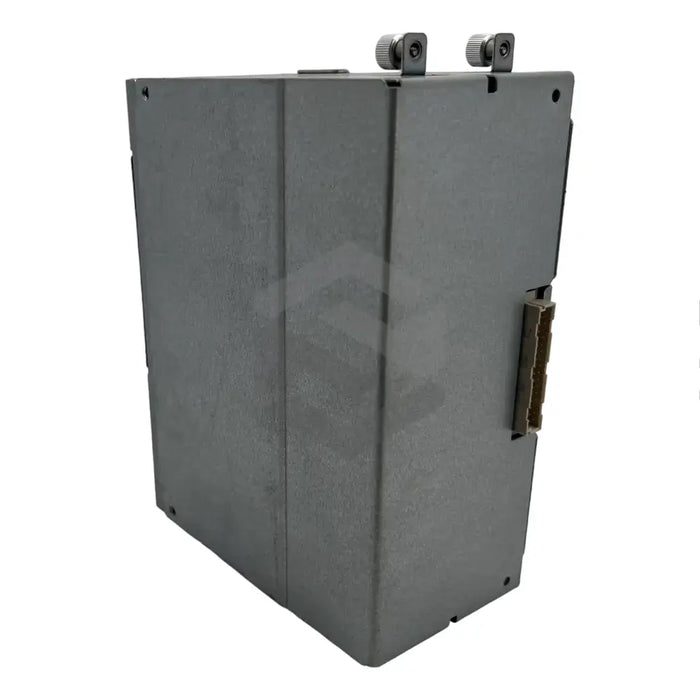

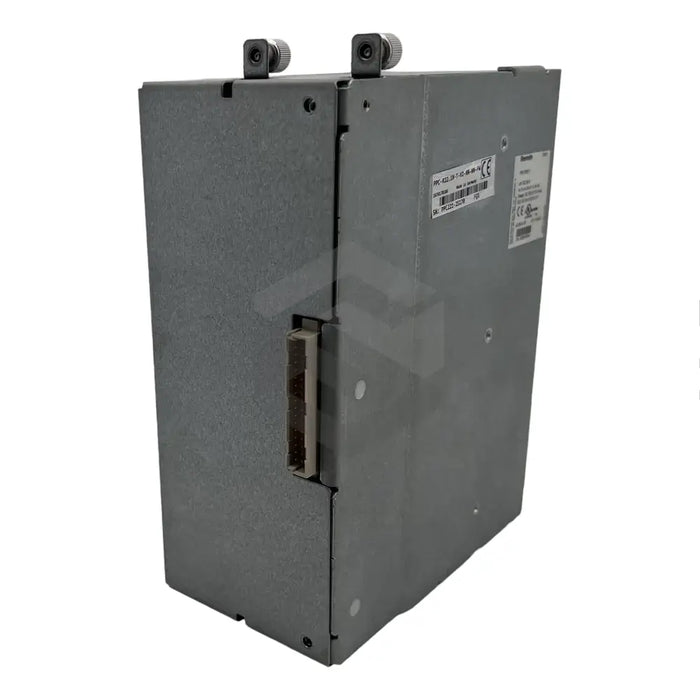

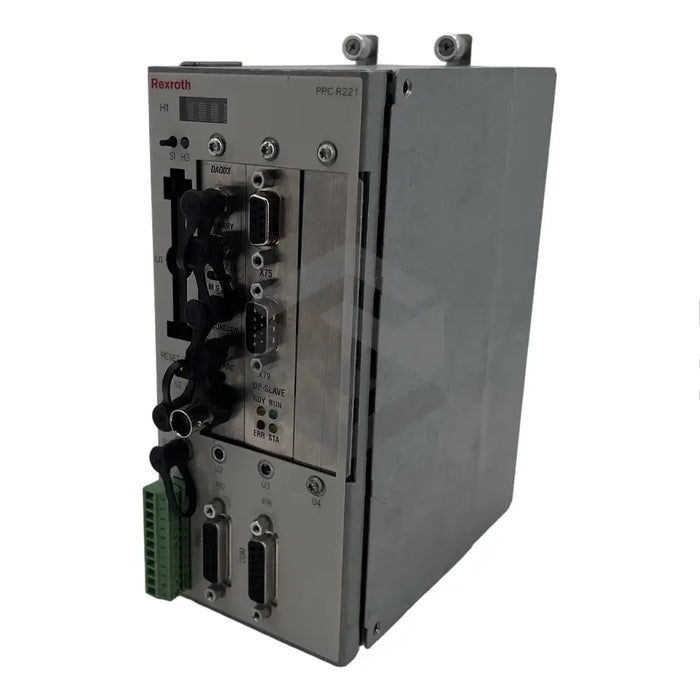

The R911171113 (PPC-R22.1N-T-Q2-P1-NN-FW) module, produced by Bosch Rexroth Indramat, is a RECO CNC designed device with a 2 code designation. The power supply connection utilizes a cable cross-section of 0.75mm2 to 1.5mm2, based on current needs. Intended for commercial machinery installation, the module operates at high voltage and discharge current. Stringent adherence to national safety standards and guidelines is mandatory for the operation of the equipment, ensuring only qualified operatives manage and maintain it.
Moreover, the module's safety conductor requires a secure, permanent link to the supply mains. The device's housing gets hot during operation, hence contact should be avoided to prevent burns. An easily accessible placement of the emergency stop switch is a must. Notably, disassembly or opening of the device under pressure is dangerous. Featuring an H1 LED display, the module has a non-I/O controlling module rack. This CNC module which weighs 1.3kg, functions optimally between 0°C and +45°C. The 24VDC power supply adheres to EN 61131-2 specifications, with a tolerance limit of -15% or +20%. Lastly, it comes equipped with a ready-for-operation relay for system monitoring with a minimum lifespan of 500,000 switch cycles when safeguarded against current overload.
