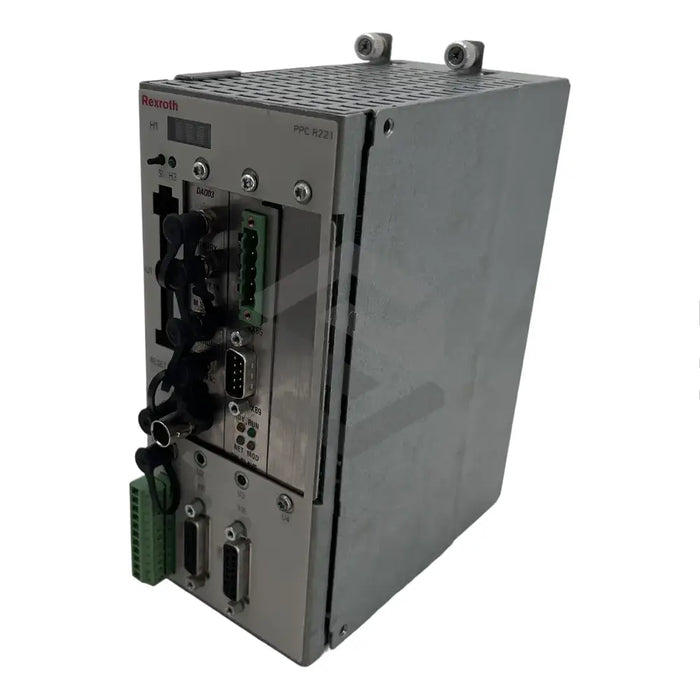

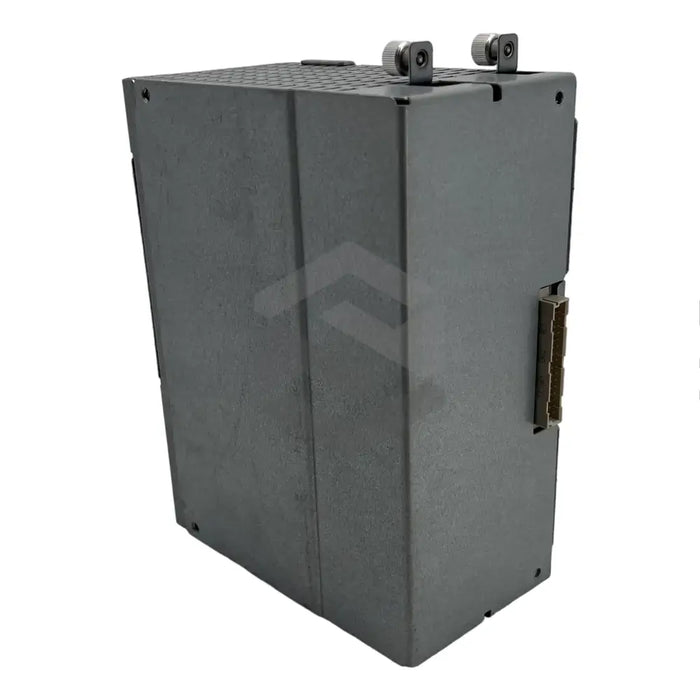

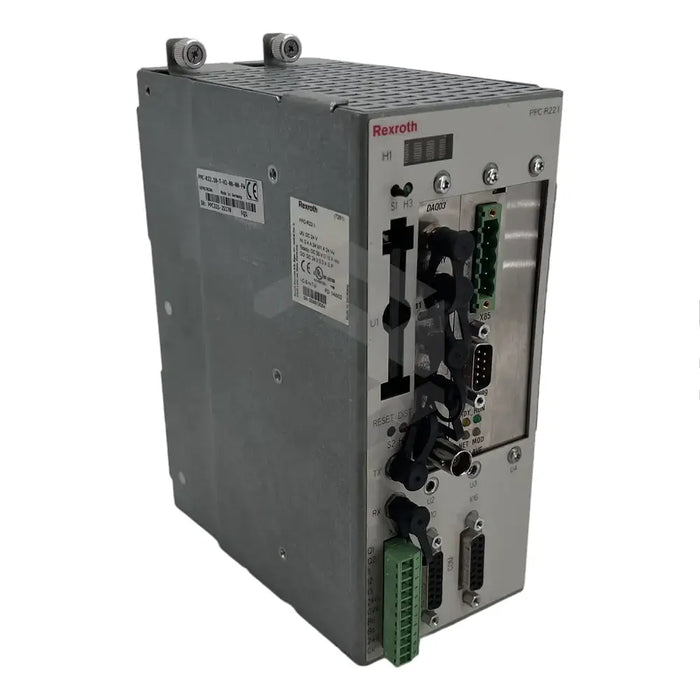

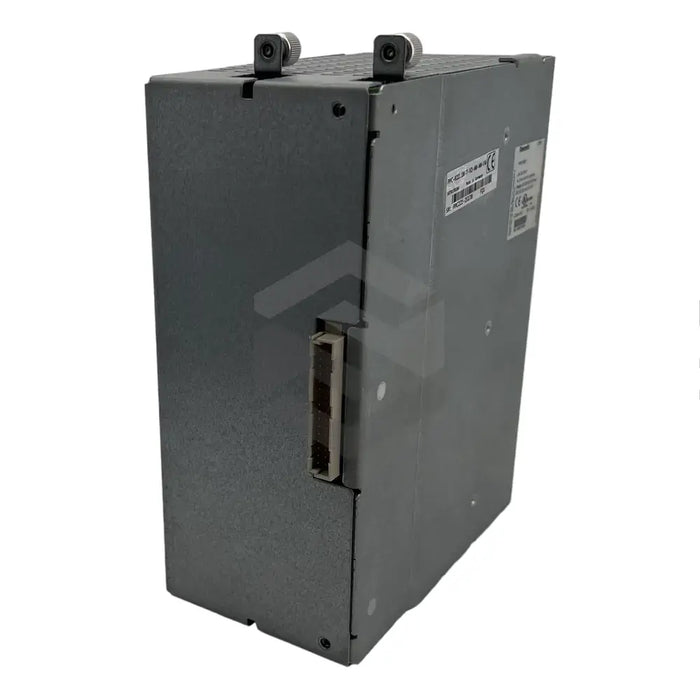

series image of R911171661

R911171661

by Bosch Rexroth Indramat
Request a quote
The Bosch R911171661 (PPC-R22.1N-T-Q2-V2-NN-FW) is a standalone motion and logic control system produced by Bosch Rexroth Indramat, part of the VisualMotion 10 product range. Suited for robotics and multi-axis motion control applications, it utilises VisualMotion GPP 10 firmware for tightly integrated control functions. Compatible with the Reco 02 rack system, it works optimally with EcoDrive 03 digital servo drives or IndraDrive Diax 04 drives. The machine includes a fiber optic SERCOS interface and other communication interfaces such as a 10 / 100 Mbps Ethernet port and two serial ports. The system can be accessed via the Ethernet port, providing standard TCP/IP communication and functioning as an Ethernet/IP fieldbus slave interface. Necessary protective measures, such as hardware firewall, should be instated as the control data over Ethernet is unencrypted. The R911171661 (PPC-R22.1N-T-Q2-V2-NN-FW) includes a pre-installed DeviceNet slave module and supports ARCNET, but does not support memory expansion. It weighs 2.87 pounds and sports an enclosure size of 184 x 8 x 165 millimeters and an IP20 enclosure rating. It operates at a maximum power requirement of 1.2 Amps at 24 Volts DC.
30 Day Warranty
Technical Specifications
  • Enclosure Dimension: 184 x 8 x 165 millimeters
  • Input Power Requirement: Maximum 1.2 Amps at 24 Volts DC.
  • Supports : ARCNET
  • Security: Data transmitted over Ethernet is not encrypted, recommended to use a router and hardware firewall for protection
  • Weight: 2.87 pounds
