R911171955

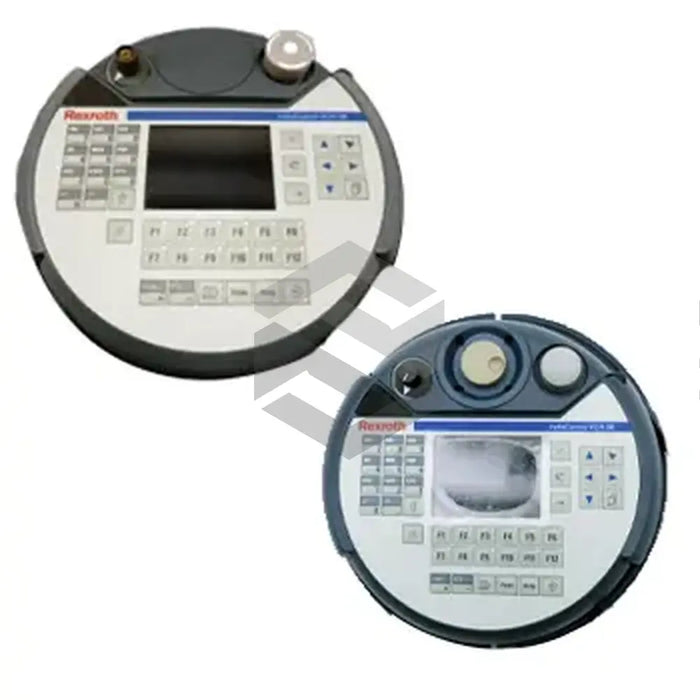

The R911171955 (VCH08.1EAB-064ET-A1D-064-DS-E4-PW), produced by Bosch Rexroth Indramat, is a high-grade Human Machine Interface (HMI) device, ideal for automation tasks in manufacturing applications such as handling processes, line transfer and gantry systems. This user-friendly device features a keyboard panel comprised of 40 operating keys and 12 LED keys, providing a straightforward interface for managing system settings and inputting drive parameters. With an IP65 rating, the HMI is encased in rigid plastic ensuring protection from water, dirt, oil, and emulsions. The device operates with a power supply of 24 Volts DC and consumes 48 W for its standard functions. In addition to machine control, the HMI can also be used for diagnostic setup.
With its ergonomic design, the R911171955 (VCH08.1EAB-064ET-A1D-064-DS-E4-PW) is convenient for both left and right-handed operators and supports single-handed use with its strategically placed shift key. It features a high-quality 3.8-inch LCD screen and weighs approximately 1.2 kg. Data storage is facilitated by a 64 MB flash memory. Operator safety is a priority with a three-position double circuit switch and two-circuit stop button for machine security. The product also includes an automatic stop feature for safe device connection and disconnection. Additionally, it provides read and write access via an Ethernet cable while an integrated USB port helps oversee service tasks.
