R911172321

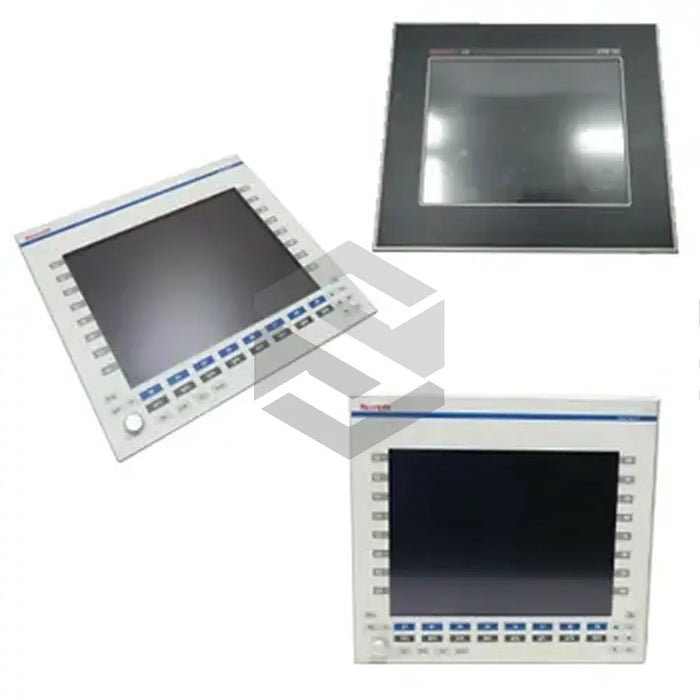

The R911172321 (VDP80.1FKN-C1-NN-EN) machine operator panel, designed by Bosch Rexroth Indramat, is specially made for CNC universal milling. To maximize its performance, this panel needs to be properly grounded. Housing the panel requires a fan and filter for ventilation to prevent dust accumulation. The operator panel comes with an LCD equipped with backlighting for improved visibility and offers a pixel resolution of 640 (H) x 480 (V). Its J14 connector, a 25-pin D-SUB connection, is utilized to connect a handwheel.
Reflecting a robust build, the panel has an IP 54 protection classification for its system inputs and IP 00 for system outputs. Temperature resilience ranges from -20°C to 60°C for storage and transport, making it suitable for industrial use. The panel houses an emergency stop switch as per ISO 13850 recommendations. It is crucial to avoid using unspecified battery types and ensure that battery replacement is conducted without causing any electrical component damage. The device includes two four-pin connectors and a single two-pin connector, with a USB interface dedicated only for flash drive connectivity. When visibility issues occur persistently, the backlight should be replaced.
