R911174057

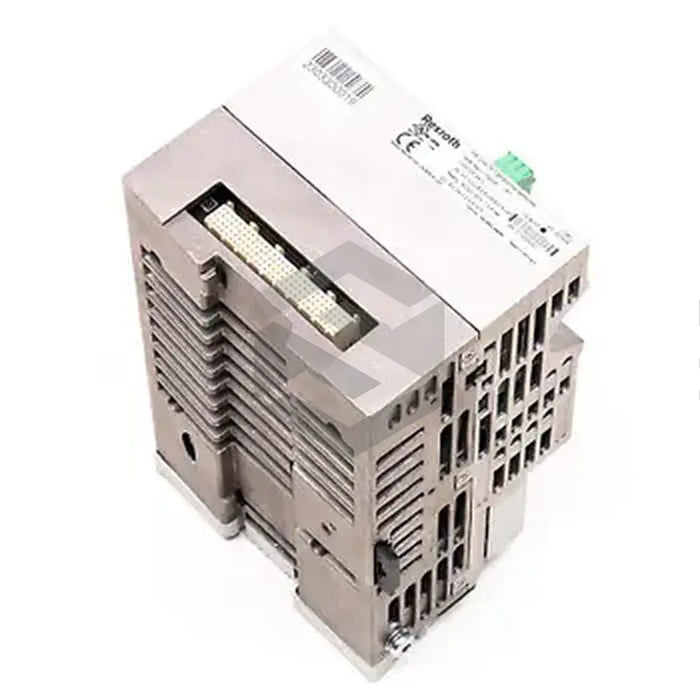

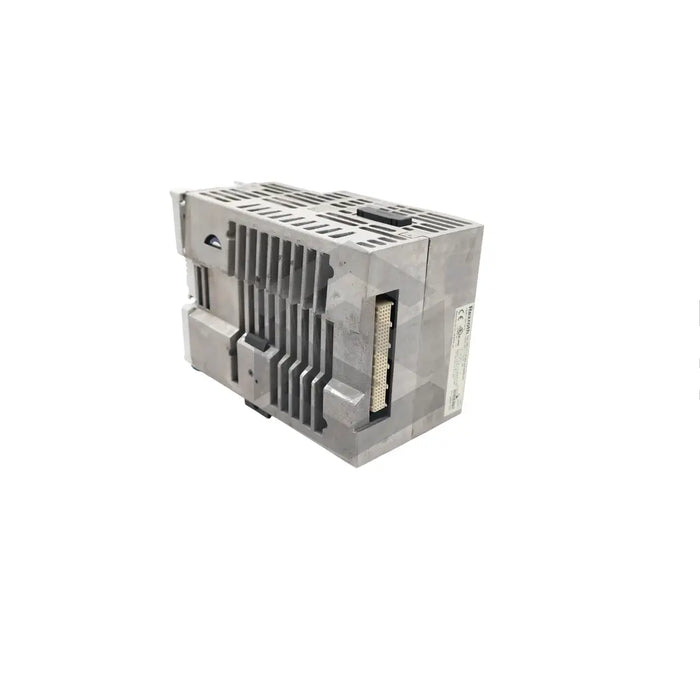

The R911174057 (CML75.1-3P-905-NA-NNNN-NW) model, manufactured by Bosch Rexroth Indramat, is a compact unit designed for industrial automation. Weighing around 1.5kg, the L75.1 controller within the system is made to withstand shocks up to 15g as per EN 60068-2-27 standards. It features IP20 category protection, safeguarding against the intrusion of solid objects up to 12.5mm. Furnished with a 1.75 GHz Intel Atom E3827 DualCore processor, it powers the system's instructions and processes. This unit can be connected through a 24 VDC DC link voltage, accommodating a supply voltage window of 19-30VDC with up to ±5% residual ripple.
The model communicates and controls I/O devices through a SERCOS 3 interface, and a PROFIBUS interface. Additional connectivity options include one Ethernet interface, one Ready contact interface, and an optional dual Ethernet link via a serial interface. Cooled by ambient air, this model has 8 digital inputs, 8 digital outputs, 4GB built-in DRAM memory, 16 MB buffered memory, and a compact flash card slot. The panel houses a mono-line display and 4 keys for manual input. Utilized in CNC machines, food processing units, packaging machines, and assembly systems, the model comes without firmware. It operates effectively between +5 to +55 degrees Celsius, powered by a 3V lithium battery that boasts a lifespan of at least 5 years.
