R911190003

Original price $13,938.86 - Original price $13,938.86
Original price
$13,938.86
$13,938.86 - $13,938.86
Current price $13,938.86
In Stock, Ships Today
Request a quote

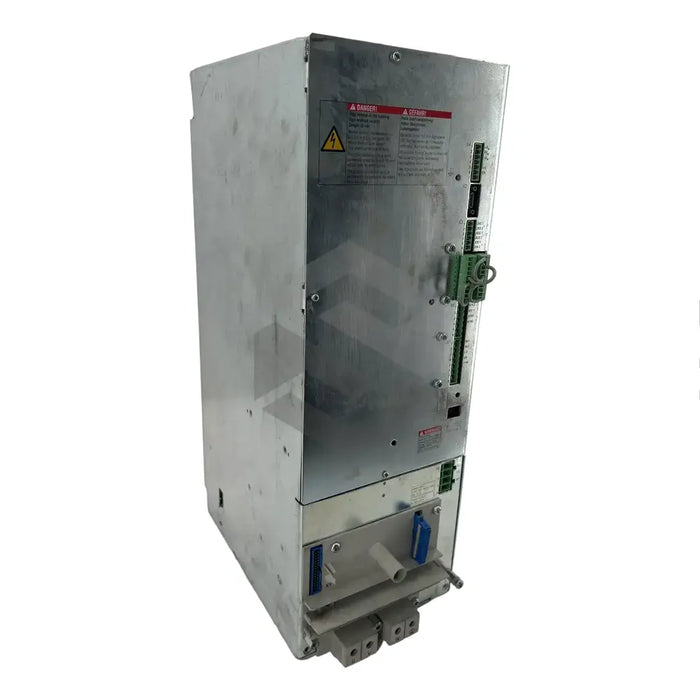

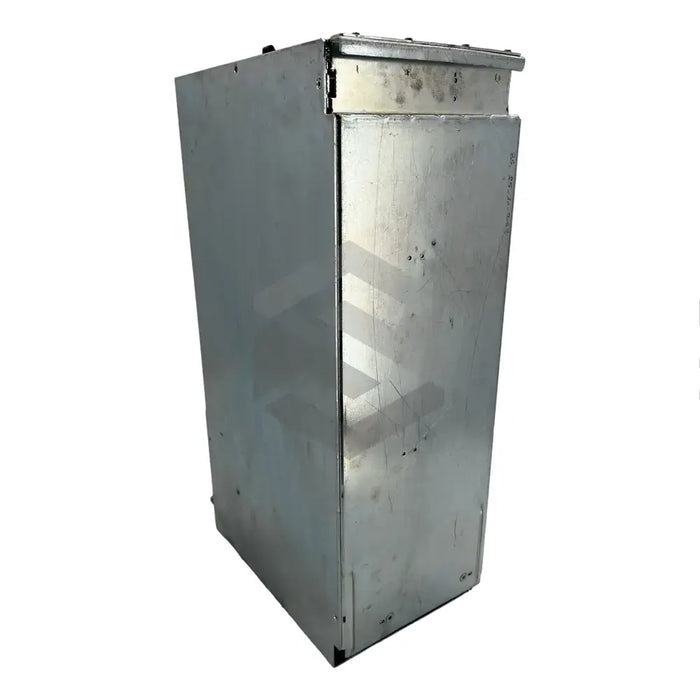

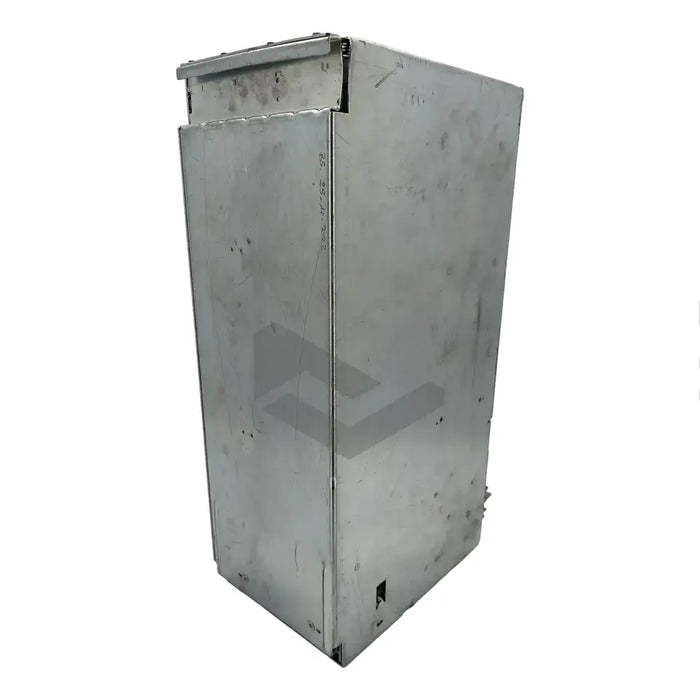

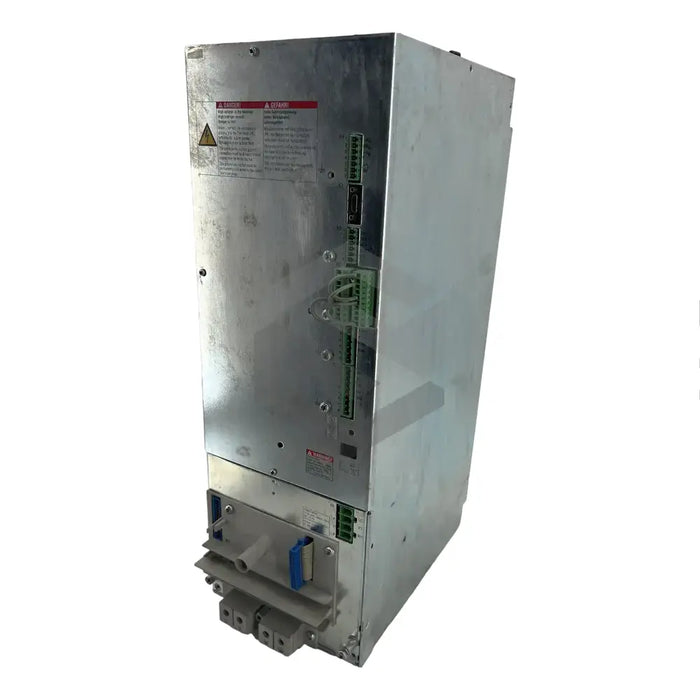

The R911190003 (HVR02.2-W025N) is a product from Bosch Rexroth Indramat, your reliable partner for electric drives and controls. This AC drive system enables the user to house multiple drive controllers in a single power unit. The power supply units come as HVR or HVE types, their key difference being the method of regulating DC bus voltage. These units are essential components for Bosch Rexroth Indramat's HDD and HDS drive and control systems. The HVR power supply type delivers regulated voltage to the controllers, displaying constant drive dynamics even during under-voltage conditions. HVR drives are powered by motors that can generate a maximum continuous mechanical power output of up to 36kW. The system connects to a power source of 3 x AC 380 ... 480 V with a ± 10% tolerance, 50 ... 60 Hz power systems, eliminating the necessity for transformers. These supply units are adaptable, offering six variations suited to different applications. The model R911190003 (HVR02.2-W025N) features a continuous DC bus power of 25 kW, a peak bleeder power of 75 kW, and a maximum fuse rating of 50A. This enables the use of gL type slow-blow fuses or power circuit breakers, simplifying diagnostics through an integral alphanumeric display.
30 Day Warranty
Technical Specifications
  • Transformer Need: No
  • Variations Available: 6
  • Manufacturer: Bosch Indramat Rexroth
  • Energy Loss during Braking: Minimal
  • Product Type: AC Drive System
