R911190005

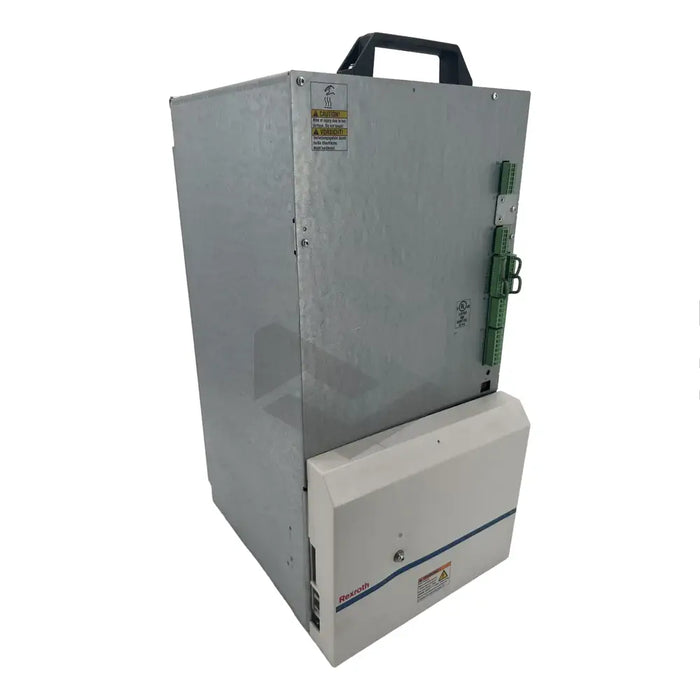

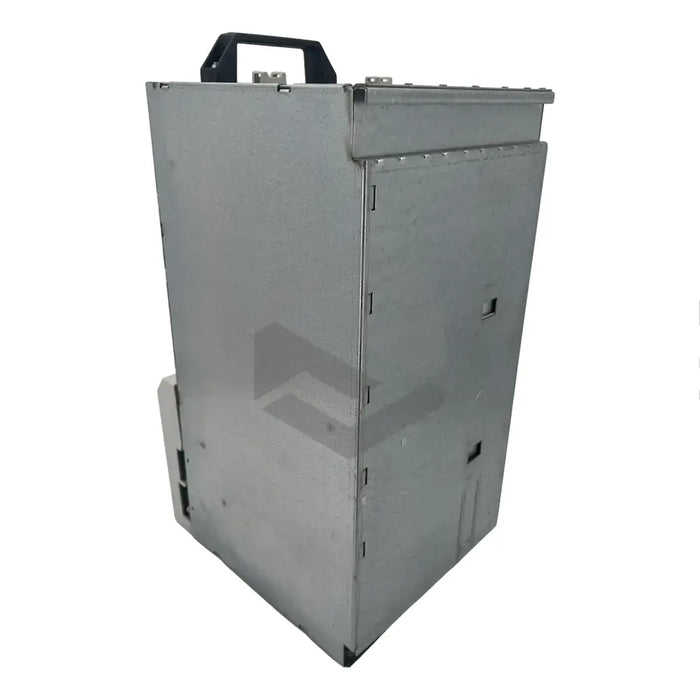

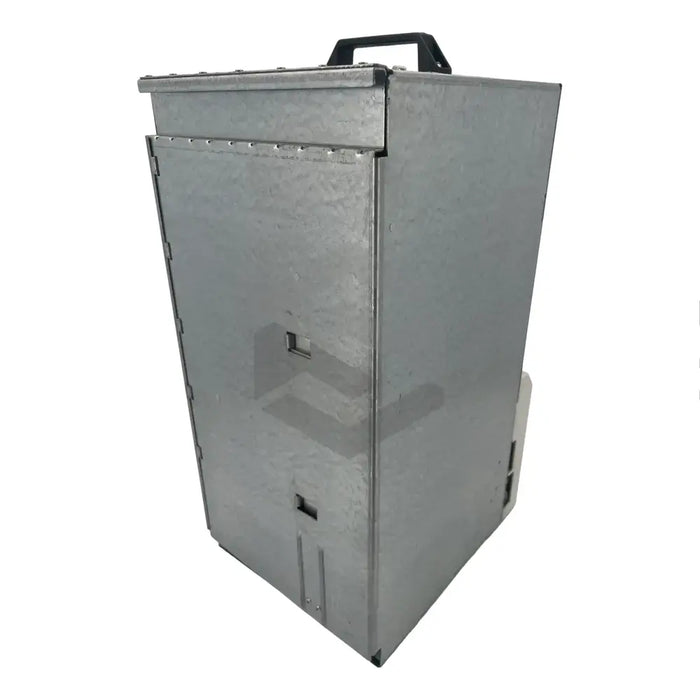

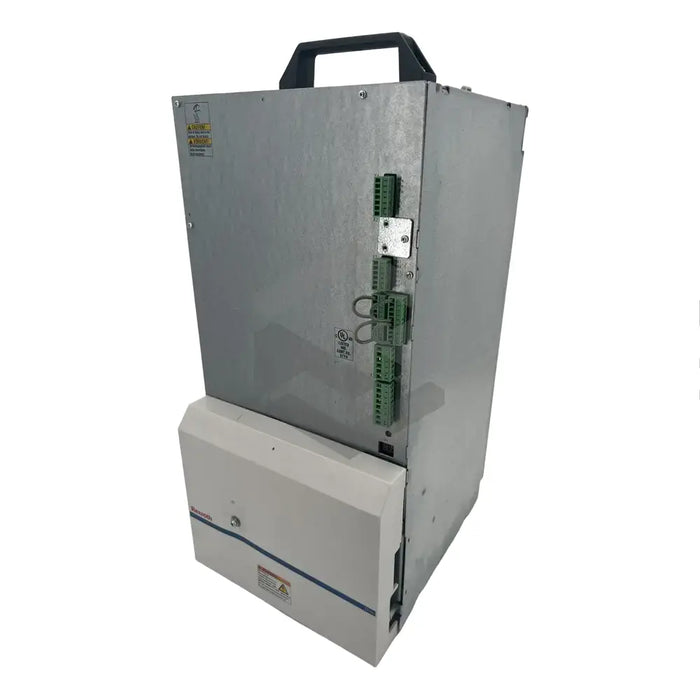

The Bosch Rexroth Indramat R911190005 (HVR03.2-W045N) is a power supply unit developed to provide electrical support to drive controllers. This unit often requires appended sensors to monitor and manage the motors. The document details specific complementary components and parts crucial for the optimal functionality of the unit. Hence, users must exercise caution to ensure these components are aptly connected, including the necessary lines and cables.
This power supply unit operates within the regulated DC bus voltage while its circuit breaker power stands at 3VF3111-5DN71. It showcases a DC bus peak output of 135 (for 0.3 s), alongside a power loss of 1350 Pv at maximum continuous output sans bleeder losses. As per every kW of DC bus continuous power, it records power losses of 27. The unit, weighing 31m, is designed for operations in ambient conditions. Connection to the main voltage is achievable at 3 x AC 380 ... 480 V. Only qualified professionals capable of handling electrical equipment should manage the unit, ensuring strict compliance with safety and construction requirements. Prior to activation, the supply system requires proper wiring, with a correctly connected ground wire to safeguard against potential safety risks.
