R911190264

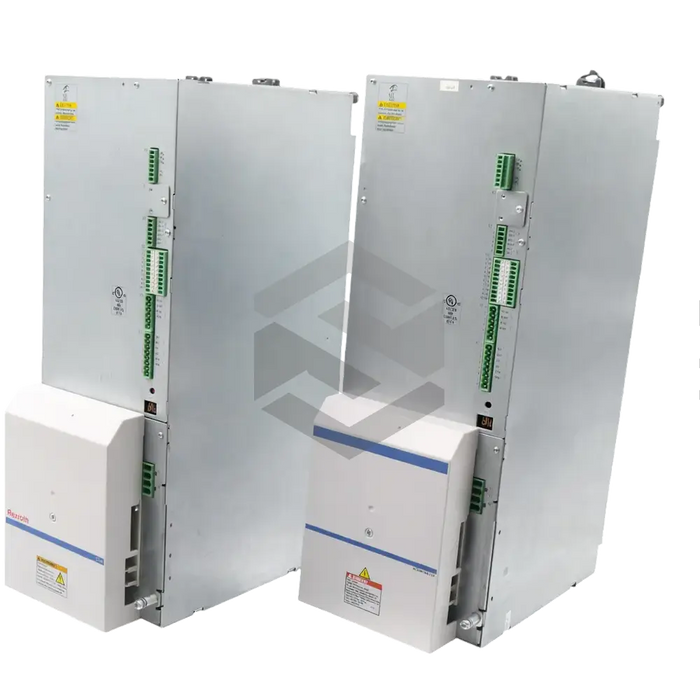

The Bosch Rexroth Indramat R911190264 (HVR03.2-W045N/S201) is a DC power supply unit, built to power HDS and HDD drive controllers. Its versatile design allows it to connect with multiple modules while its generative power supply enables operation in generator mode, sending excess energy back to the mains. This unit also sustains drive dynamics during low-voltage situations and provides optimal power for a variety of applications. The HVR03.2, a component of this unit, delivers control voltage to drive controllers and offers an emergency shutdown feature for mains failure.
The R911190264 (HVR03.2-W045N/S201) operates on an input voltage of 3*380-480(+/-10%) and a frequency of 50-60(+/-2Hz). Its DC bus voltage is 750V, and it produces a DC output voltage of 45kW, peaking at 135kW. This unit introduces 120kW of regenerated bleeder power, and a max of 80kWs regenerated energy. Weighing 31kg, it consumes a 500VA power input at max load and provides a control voltage output of 300W. For optimal operation, install R911190264 (HVR03.2-W045N/S201) under an environmental temperature between +5°C and +45°C with relative humidity up to 95%, and avoid air pollution, dirt contamination, and condensation. It complies with the IP 10 per EN60529/IEC529 protection category.
30 Day Warranty
Technical Specifications
