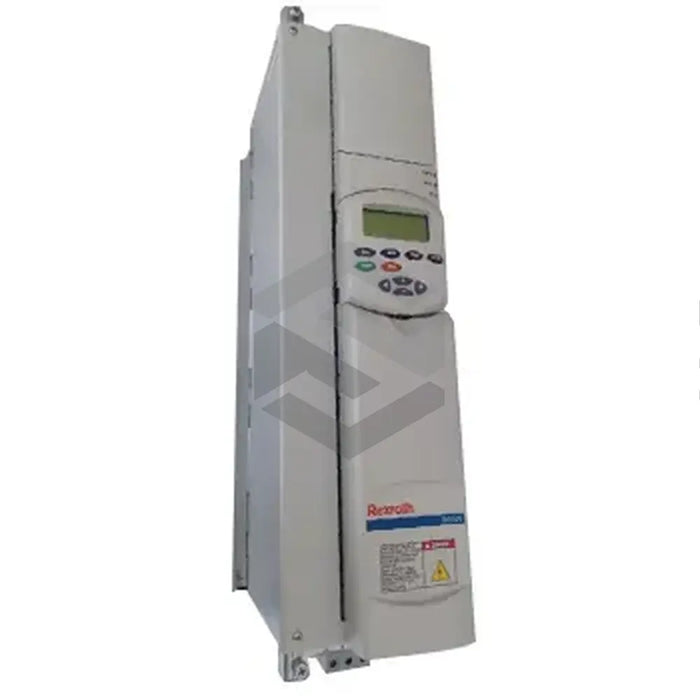

The R911200404 (RD52.1-4B-030-L-V1-FW) is a universal drive designed and fabricated by Bosch Rexroth Indramat. This product operates with an integrated converter that features a built-in brake chopper. The drive converter contains a voltage rating that varies between 380 to 480 Volts AC and dissipates around 1.1 kilowatts during functionality. The featured drive output is 30 kilowatts, and additional functions can be incorporated. One notable additional feature is the 24 Volts standby power, which supports parametrization of drive data sets and the operation of field buses without a main supply. The drive requires an external 24 Volts DC supply provision.
Strict adherence to safety instructions is paramount when handling the R911200404 (RD52.1-4B-030-L-V1-FW) drive. Usage against recommended directives can result in injuries, including electric shocks or even fatality. The product's firmware is sold separately from the hardware. The drive's commissioning can be achieved via a user panel, or utilizing high-performance RDwin software installed on a computer. The communication between the drive and the computer is established through a serial communication link. The R911200404 (RD52.1-4B-030-L-V1-FW) drive holds an IP20 rating and weighs approximately 36 kilograms. Bosch will not be held liable for damages resulting from the violation of product documentation warnings.
