R911201068

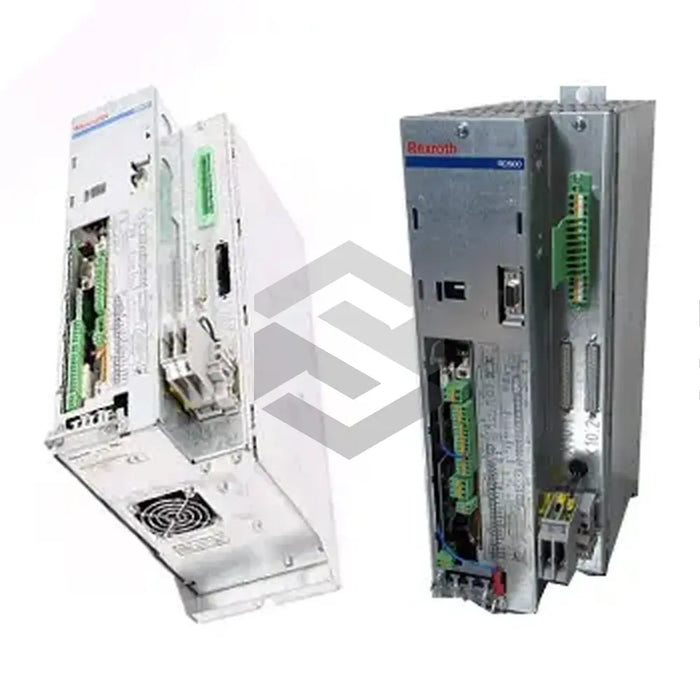

The R911201068 (RZR01.1-RD52-0880-P-M-FW) is an inverter controller produced by Bosch Rexroth Indramat and is part of their renowned RZR01 series. Created utilizing state-of-the-art technologies and adhering to stringent safety standards, it is integral for the operation of Bosch Rexroth's HPS power stacks. Field-oriented vector control is deployed effectively through the RD52 controller function. The unit boasts an impressive maximum current of 880A for the HPS and applies the parallel circuit methodology in the arrangement of its electrical components.
The R911201068 (RZR01.1-RD52-0880-P-M-FW), designed for motor inverter control, operates at an input voltage rating of 24V, allowing a ±5% variation and a maximum ripple of 5%. It draws a maximum constant current of 12A. It's worth mentioning that an external voltage source installed in the control cabinet housing can commission it. Its Ingress Protection rating, without its connection terminals, complies with EN 60529 standards (IP 20), ensuring that it is safeguarded against harmful objects larger than 12mm. The ideal ambient temperature range for its operation lies between 0 – 40 oC.
