R911219717

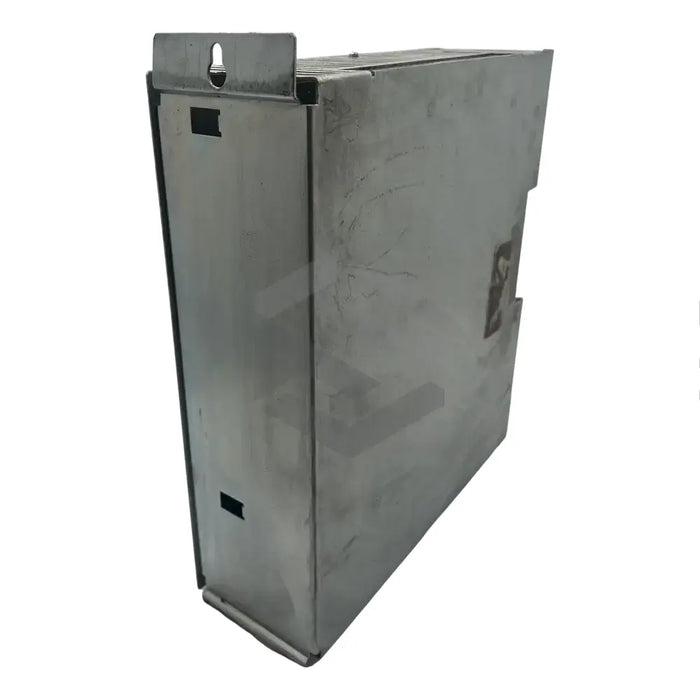

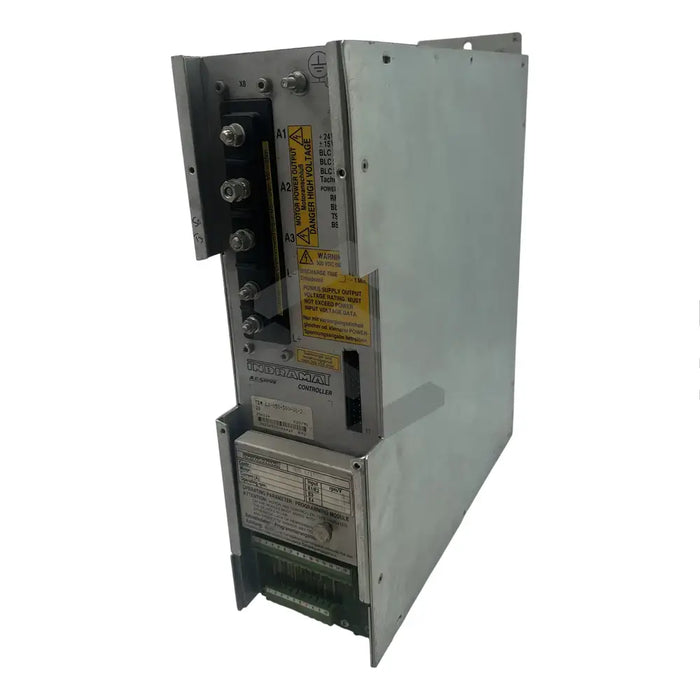

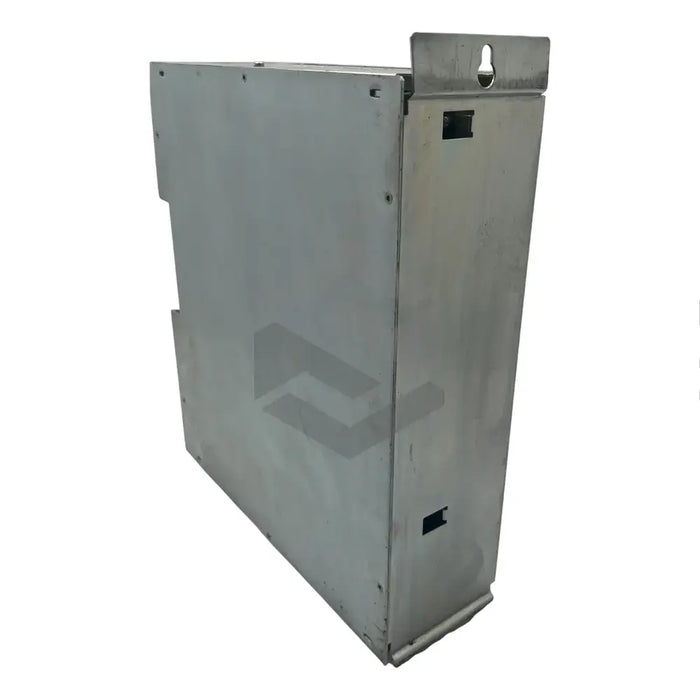

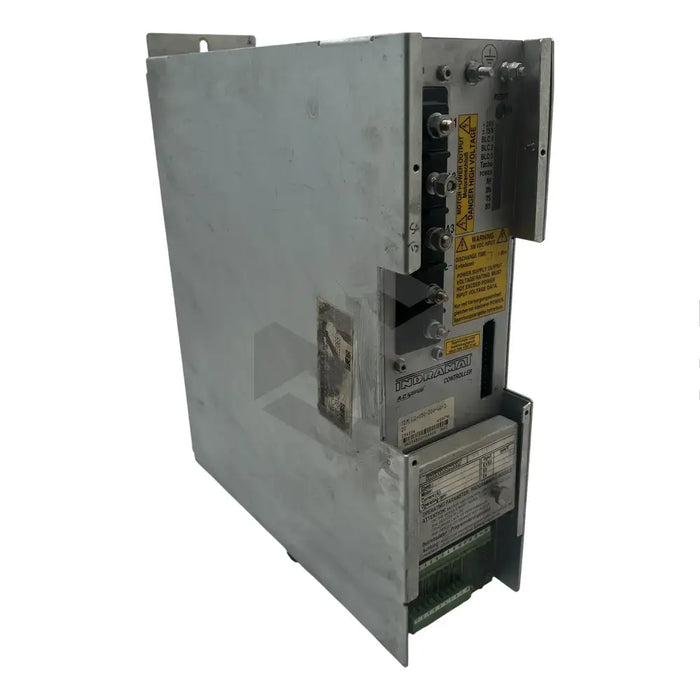

The product in focus, R911219717 (TDM 1.2-050-300-W1-220), is a part of the TDM series of servo drives manufactured by Bosch Rexroth Indramat. It carries a power rating of 15kW, a continuous current rating of 45A, and is specifically designed for the MAC series of motors, which are widely used for motion control purposes. For optimal functioning, this unit should be installed on the back wall of the control panel or a mounting plate, at an elevation no greater than 1,000m. The device requires an AP 9 adapter board, with a connecting terminal, to improve resistance against potential interference.
The R911219717 (TDM 1.2-050-300-W1-220) servo drive, notable for an X5 terminal offering user-customizable output and input options. The green power supply LED signifies the presence or absence of controller voltage based on being lit or switched off, respectively. The servo drive is equipped with a fan requiring a supply voltage of 220V. The device registers 250W of power loss at continuous current and is fixed using M6-DIN 912 cheese head screws. It keeps a type current of 50A, has a built-in cooling fan designed for 50-60Hz frequency range, and is structured for flush mounting. With IP 10 protection, it also fulfills DIN 40 040 humidity classification of F and boasts a heatsink affixed outside the control cabinet.
