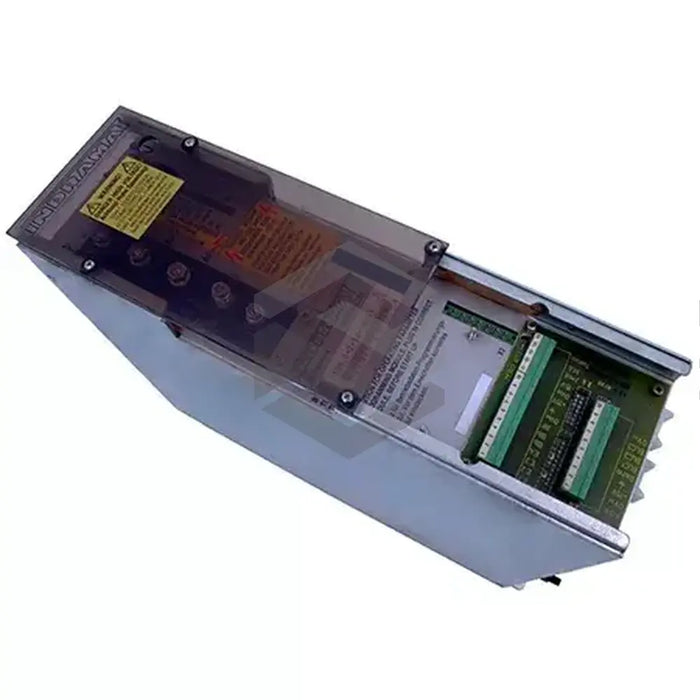

R911222234
The R911222234 (TDM 1.2-100-300-W1-115), produced by Bosch Rexroth Indramat, is a company-grade device that carries a consistent current of 65A and a peak current of 100A, with a link circuit voltage of 300 (±15%). Weighing in at 10.5kg, the device has a power loss of 400W and an overall power of 30kW. Designed in accordance with DIN VDE 0110, the protection category of the product is IP 10 while the insulation category is C. It's built to operate optimally under ambient conditions like a maximum installation elevation of 1000 meters above sea level, an operating temperature ranging from 5 to 55 degrees, and permissible humidity up to 95% without condensation.
The R911222234 (TDM 1.2-100-300-W1-115) is incorporated with an AC 115 V 50 to 60 Hz connection voltage specifically suited for the built-in fan and utilizes a forced ventilation cooling method. This product is intended to work in synergy with MAC motors and is tailor-made for high precision servo applications in woodworking and metal machining machine tools. As a fundamental servo drive module for motors such as MAC71 and MAC160, the product facilitates functions including torque reduction, direction of rotation reversal, high short-term acceleration moments, and swift, precise diagnostics. It is engineered to transform the DC link voltage created by the power supply module into a three-phase system, which is then applied to the MAC servo drive.
