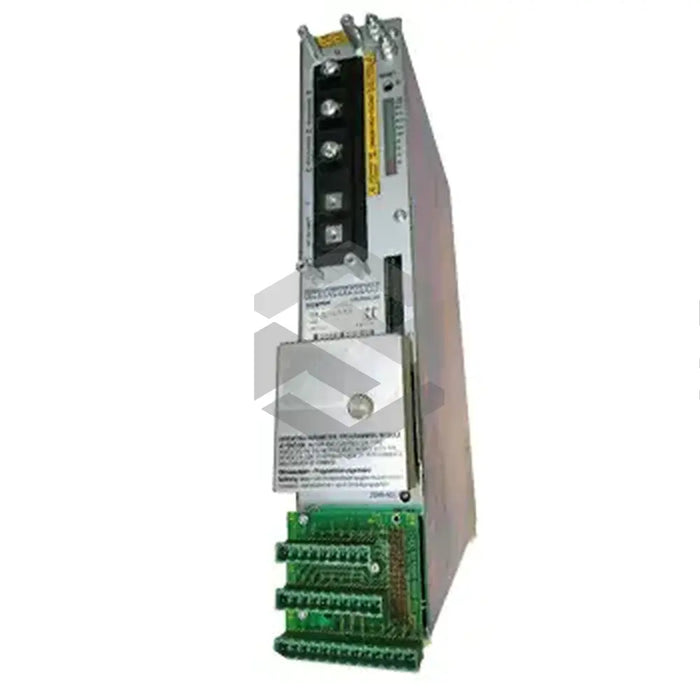

R911233713
The Bosch Rexroth Indramat's R911233713 (TDM 3.2-20-300-W0) is a TDM servo drive module. It is part of the resilient ANAX series known for their robust construction that withstands challenging industrial environments without performance loss or reliability issues. These modules, which form part of the legacy drives, are repairable rather than replaceable or exchangeable when damaged. TDM drive modules are pre-tuned at the factory, providing a perfectly optimized controller for the end user. Their cooling system is either based on natural convection or forced ventilation, with the latter implemented on higher current rated models to efficiently dissipate excessive heat and prevent overheating.
The R911233713 (TDM 3.2-20-300-W0) TDM drive module, specifically, applies natural convection cooling and is intended for operation within a control cabinet with sufficient ventilation for proper cooling. It carries a continuous current rating of 15 Amperes, a peak of 20 Amperes, and a power loss of 110 kilowatts. As a key component of a servo drive system alongside a motor cable and a servo motor, it is engineered to control standard MAC servo motors found in the MAC 63 to MAC 112B series. To maintain an operating temperature from 5 to 45 degrees Celsius, it should not be placed under any heat-producing device. R911233713 (TDM 3.2-20-300-W0) belongs to the TDM3 subseries of the Indramat ANAX series.
