R911233715

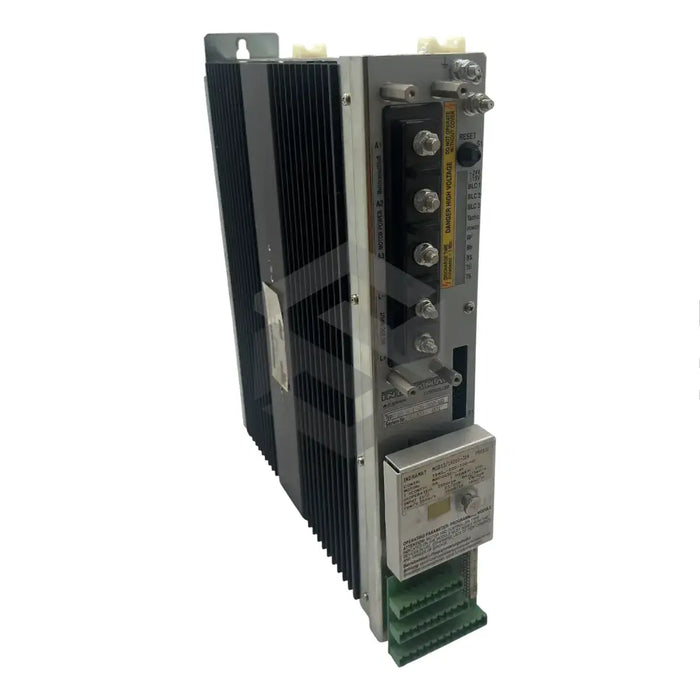

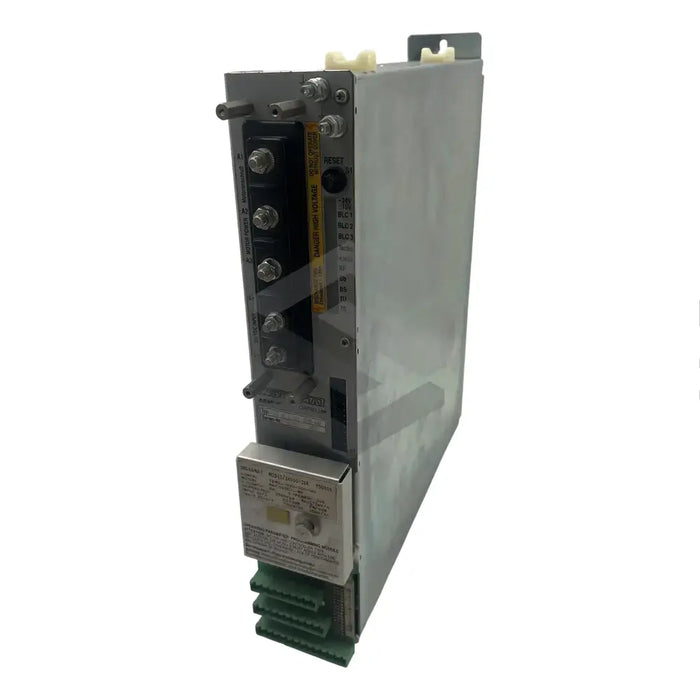

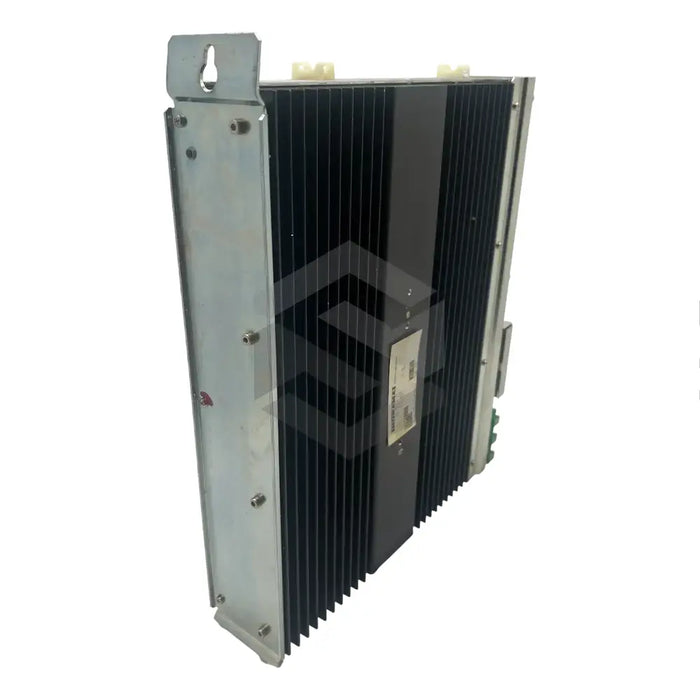

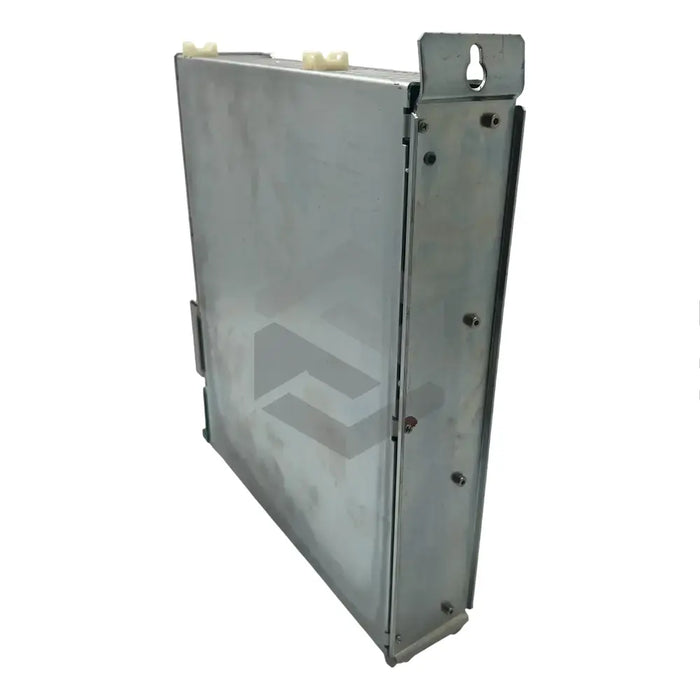

The R911233715 (TDM 4.1-030-300-W1) is a servo drive module crafted by Bosch Rexroth Indramat. It's specifically designed for MAC 21, MAC 25, and MAC 41 motors, utilized in precision-demanding environments such as automation systems, NC machines for wood works, and automotive manufacturing machinery. Boasting a current rating of 30 A and a DC link circuit voltage of 300 V, the product establishes a 3-phase system governed by amplitude, frequency, and phase parameters. The motor torque is dictated by the system's current amplitude within the servo motor's stator, while the motor speed is set by the 3-phase system's frequency, governed by the rotor position encoder signals.
The R911233715 (TDM 4.1-030-300-W1) servo drive supports a torque-controlled drive role and can be integrated in a tandem drive setting, with the master drive controller setting the speed for the slave drive. The accompanying built-in fans provide forced convection cooling. A programming module is included to synchronize the servo drive module with the motor type. Servicing the R911233715 (TDM 4.1-030-300-W1) is user-friendly as it requires no optimizations or adjustments, benefits from drift compensation, and can be swiftly replaced by staff without extensive training.
