R911236232

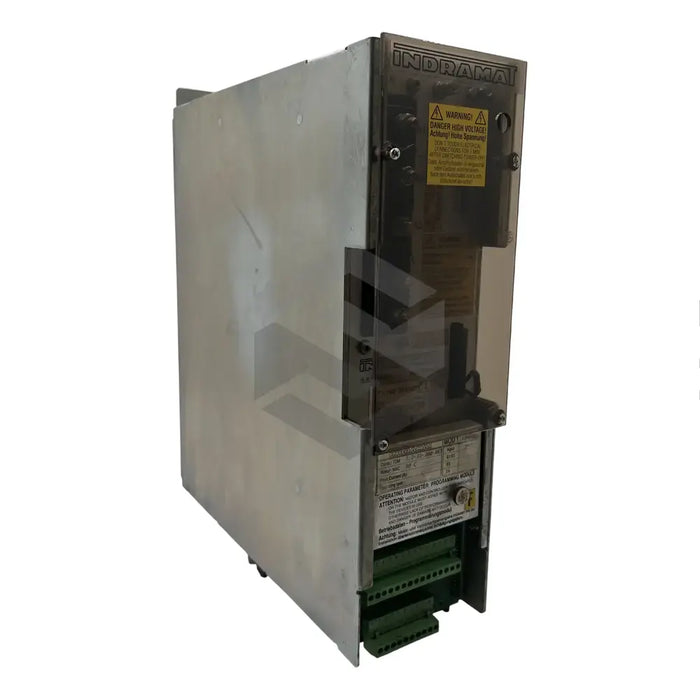

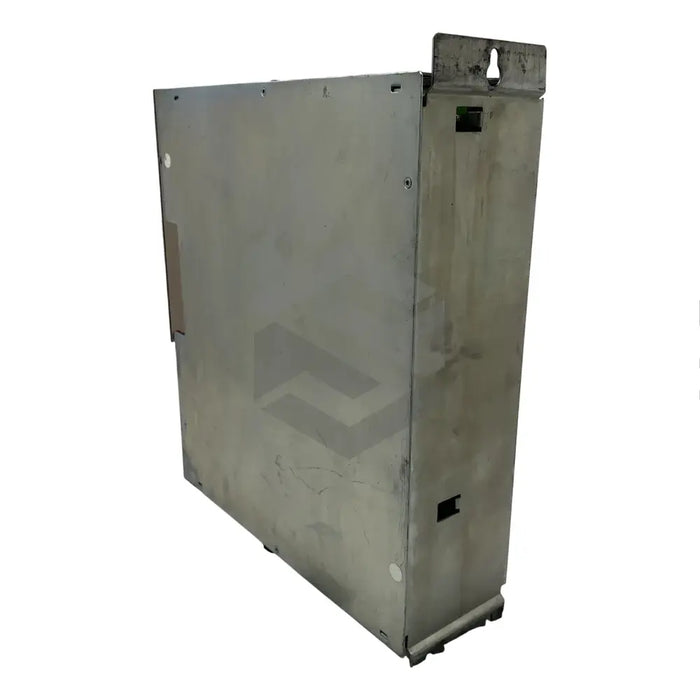

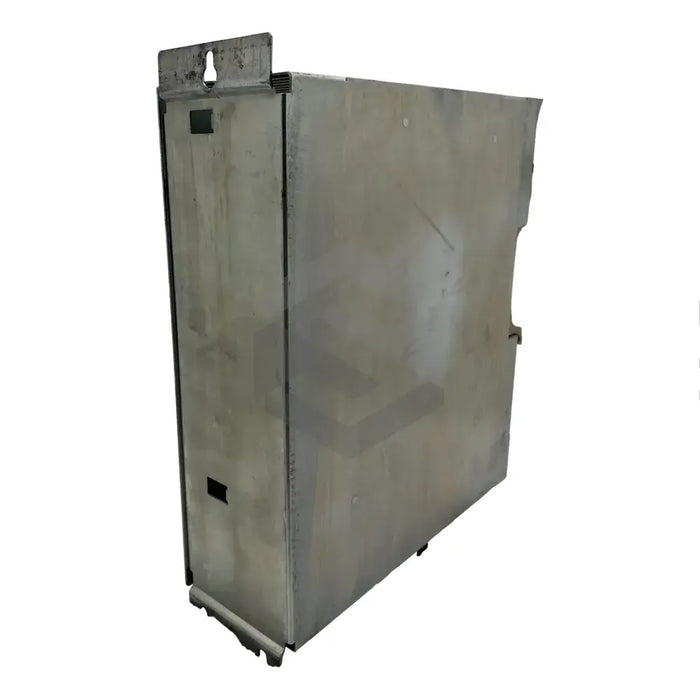

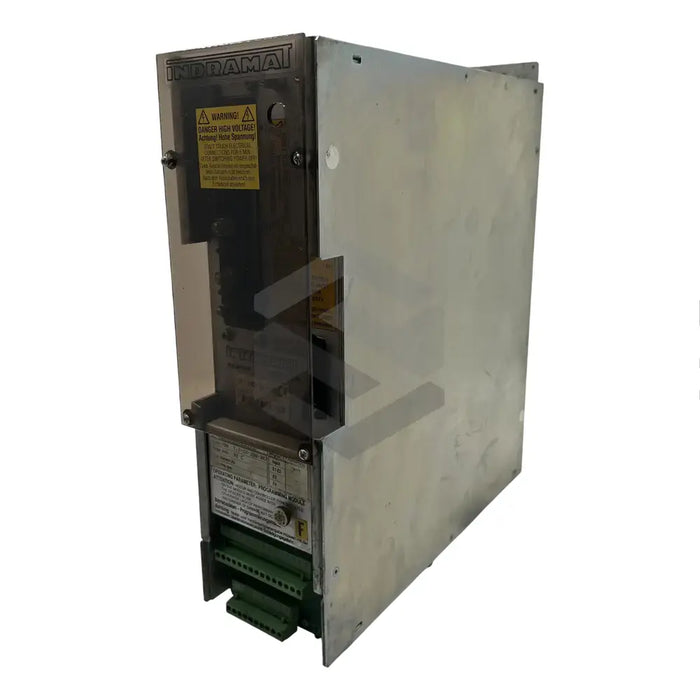

The R911236232 (TDM 1.2-030-300-W1-000), a servo drive by Bosch Rexroth Indramat, delivers high acceleration with variable speed controls. It comes with a preset maximum speed limit and a model 2 configuration. Key features include a 30A type current rating, a minimum adjustable current of 15A, a 300VDC link circuit rated bus voltage, and a power rating of 9kW. The drive is also designed with a built-in fan for forced ventilation, ensuring optimal performance while limiting overheating. This cooling measure maintains an ambient operational temperature of +5°C to +45°C.
Providing useful connectivity points, the X5 terminal accepts user input/output connection, while the X6 terminal caters to the feedback connection of the MAC motor. The servo drive can function as a torque-controlled, master-slave, or tandem drive. An IP 10 degree protection and a Class C insulation category conforming to DIN VDE 0110 specifications ensure its durability and safety. Housed within a fully sealed cabinet, it features a base height of 355mm, allowing an additional 80mm at the top and bottom for proper ventilation. This servo drive is ideally used with MAC 71 to MAC 160 range three-phase synchronous servomotors in the manufacturing automation industry.
