R911236234

Original price $4,724.95 - Original price $4,724.95
Original price
$4,724.95
$4,724.95 - $4,724.95
Current price $4,724.95
Available, Shipping Varies
Request a quote

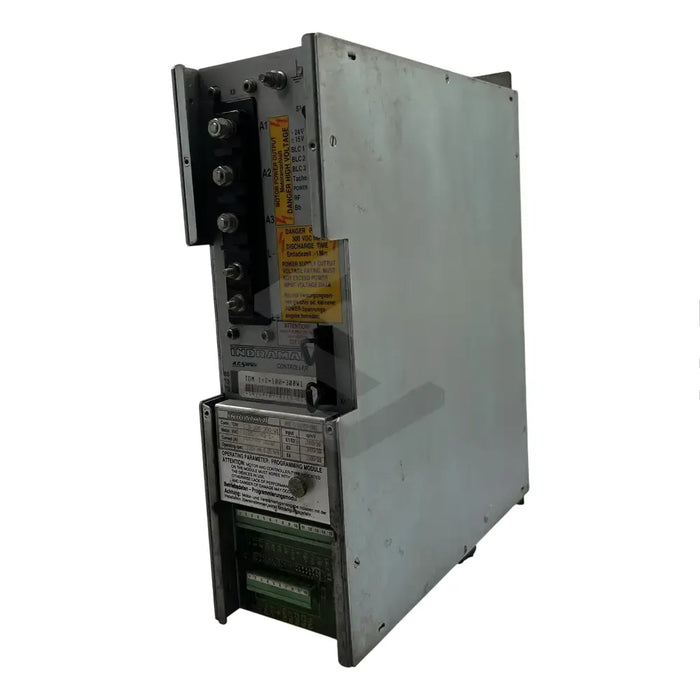

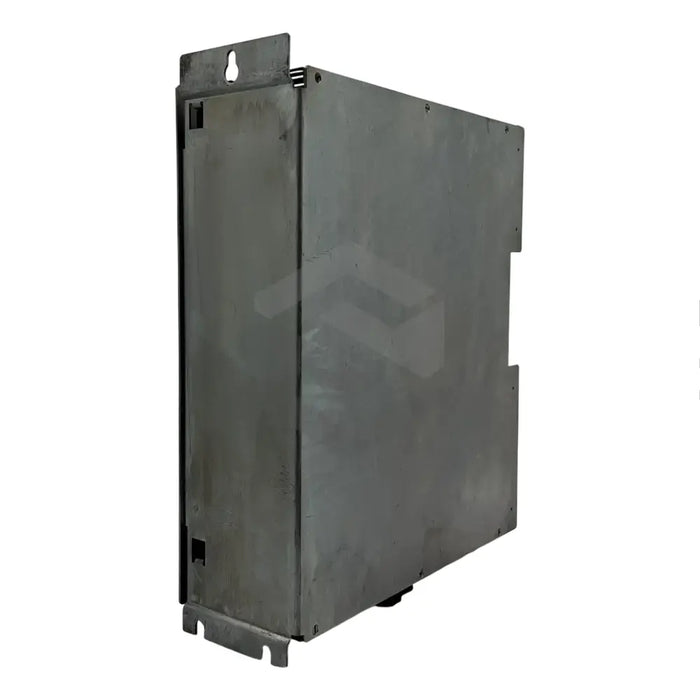

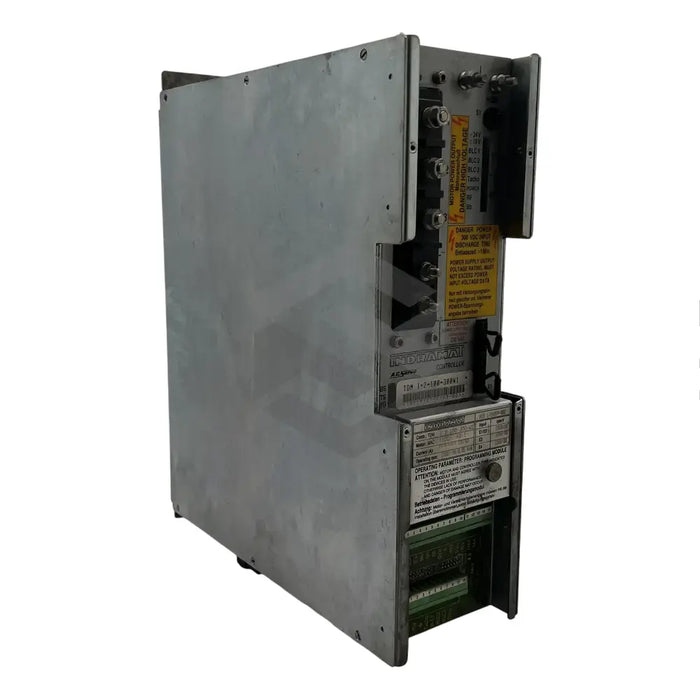

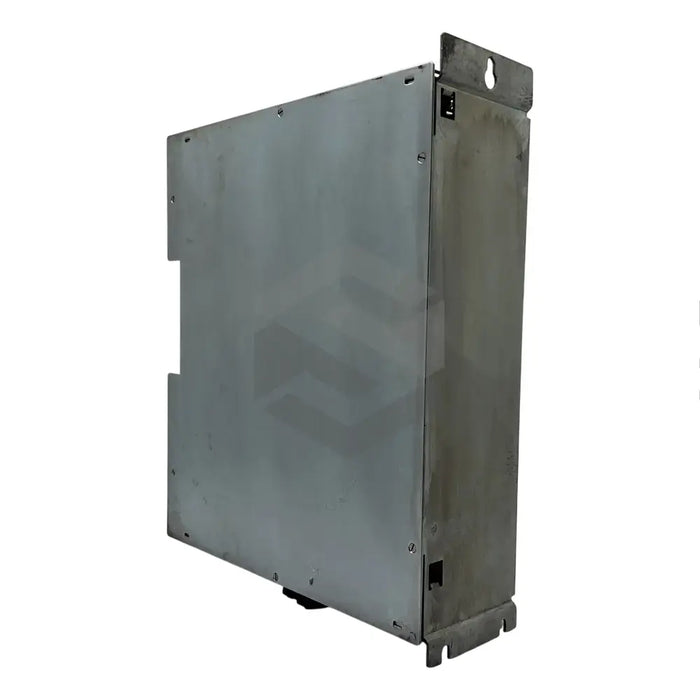

The product is the R911236234 (TDM 1.2-100-300-W1) servo drive, a top-tier selection from the versatile TDM series by Bosch Rexroth Indramat. It is an AC drive acclaimed for its durability and modularity. The servo drive is equipped with two busbars, L+ and L-, supporting a voltage range of 250 to 450V. It contains three green BLC LEDs to determine the position of the motor. A blinking light signifies a slower motor speed, while a constant light indicates a higher speed. The inclusion of a power-efficient 30VA fan and its pairing capabilities with MAC071 to MAC160 servomotors showcase its adaptability. It utilizes a MOD 2 programming module for adjustable input weighting with aid from three potentiometers. Apart from its economy, it also offers torque-controlled drive functionality. This servo drive exhibits a continuous current rating of 65A and a DC voltage of 300VDC in its link circuit, with a fluctuation margin of 15%. Complying with DIN VDE 0110 specifications, it falls under insulation category C. Storage temperature ranges from -30°C to +85°C. Weighing 10.5kg, the product can be globally delivered. Bosch Rexroth Indramat's expanding inventory, comprising motors, drive controllers, spindle drives, and cables, caters to assorted motion control requirements.
30 Day Warranty
Technical Specifications
  • Continuous Current Rating: 65A
  • Compatible Servomotors: MAC071-MAC160 Series
  • Functionality: Torque-Controlled Drive
  • Indicator: Three BLC Green LEDs
  • Product Type: Servo Drive
