R911236631

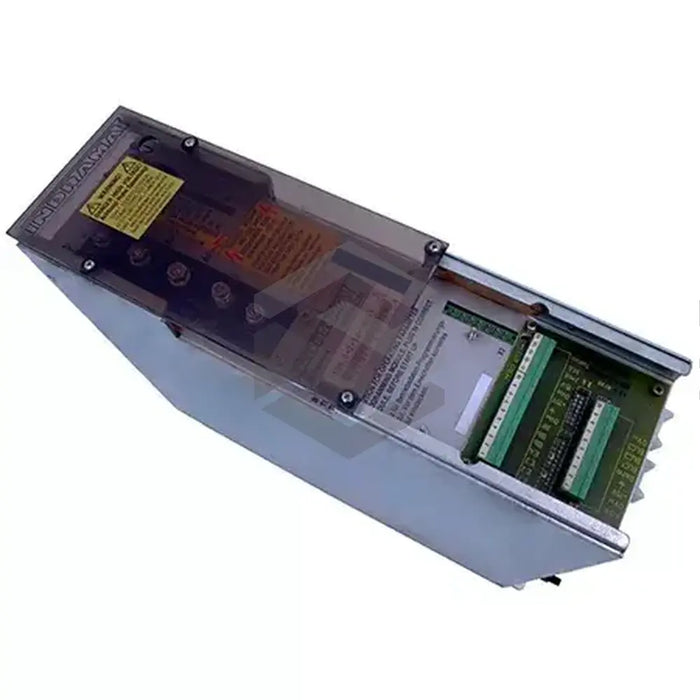

The R911236631 (TDM 1.2-030-300-W0) is an AC servo controller designed by Bosch Rexroth Indramat. As a form of performance enhancer, it constantly adjusts factors such as position, velocity, damping, torque, and feedback gain. Predominantly used in control systems and self-governing factories, this device is compatible with MAC motors of different sizes, partnered most commonly with motors ranging from MAC71 to MAC160.
This first series drive has a bus voltage of 300V and utilizes a 30A current supply. With a cooling design of natural convection, this model ensures optimal heat transfer for improved performance. The default configuration is set to model 2, and the unit weighs about 10 kilograms. The three BLC series within the R911236631 (TDM 1.2-030-300-W0) assure high outputs, even at minimum input voltage, thus reducing overall supply voltage. The built-in tachometer measures the rotational speed of the shaft while a reset switch is present for default-setting needs. The device includes electrical isolation connected via a serial or energy bus. With an operating rpm of 50mV/A, and a variable peak current that ranges from 30/25A, it's crucial for the motor and controller to meet corresponding requirements for maximum efficiency. The parameter of this AC servo controller is defined by its programming module.
