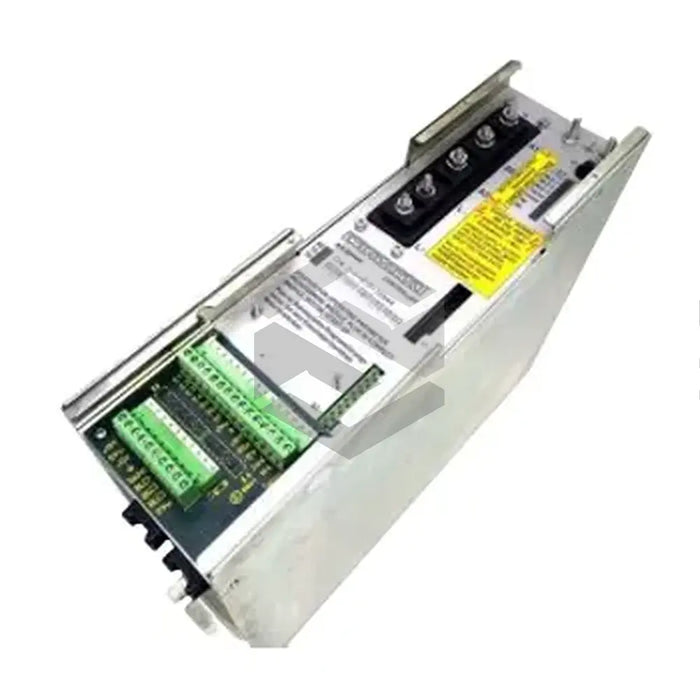

P image of R911236632

R911236632

by Bosch Rexroth Indramat
$1,899.80 - $11,467.34
$1,899.80
$1,899.80 - $11,467.34
$1,899.80

Available, Shipping Varies

The Bosch Rexroth Indramat R911236632 (TDM 2.1-030-300-W0) is a servo drive module from the innovative second TDM series. It is equipped with a 30A current type, boasting a link circuit rated voltage of 300 (± 15%) DC V. This unit features classifications per the tacho-feedback in MAC motors and lacks an incremental encoder. Characterized by natural convection motor cooling, the R911236632 (TDM 2.1-030-300-W0) exhibits a motor and amplifier combustion code of 030 along with an input weighting code of 300 as specified by Indramat. This servo drive module comes with specific power specifications, holding a 30A current, 30A peak current, and a continuous current of 25A. The module has a power capacity of 9kW and a power loss of 160W. It carries a fan connection with a supply voltage that toggles between 220 and 115V and a frequency of 50 - 60 Hz. The signal processing current consumption illustrates the following without an external load; + 24V Load voltage: 750 [350], + 15V measuring voltage: 140mA, and - 15V Measuring voltage: 60mA. With operation temperatures permitted between +5⁰C and +45⁰C, it supports maximum ambient temperatures up to 55⁰C. Its storage and transfer temperature ranges from -30⁰C up to +85⁰C. The unit affords a mounting altitude up to 1000m and weighs 9kg.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Weight

9kg

Peak Current

30A

Frequency of Fan Connection

50 - 60 Hz

Operation Ambient Temperature (with Reduced Rated Data)

55⁰C

Type Current

30A
