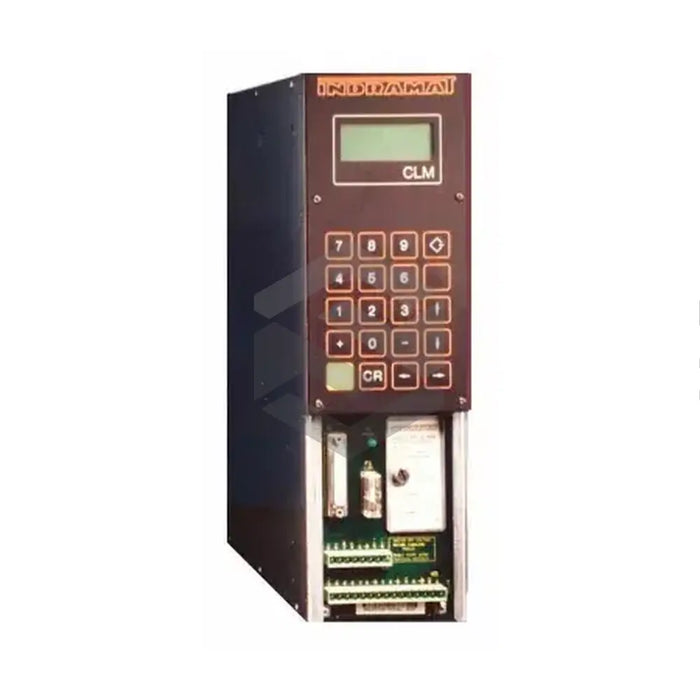

Bosch Rexroth Indramat's R911241634 (CLM 01.3-M-E-2-0) is a microprocessor-centred control system specifically designed for precision movement applications, such as cross-cut sawing and pipe cutting. It features a positioning control that synchronizes operations through a closed loop system. The device is user-friendly, providing operating status updates in English, French, or German. This modular constructed device includes sixteen primary and auxiliary input and output channels, a serial communication port, and two encoder ports.
The R911241634 (CLM 01.3-M-E-2-0) offers two-axis operation capabilities, made possible with an expansion I/O board. It is designed for easy integration with a TVM series servo power supply and a TDM servo amplifier, simply installed side-by-side using two screws. The highly-functional keypad facilitates parameter and program data entry, in addition to fault/error message management. In parameter mode, data viewing, editing, and entry is enabled. Additional highlights include an RS-232/422/485 communication port, a protective 1.6A F1 fuse and a 24V power supply connection via an X5 connector. An intermediate stop input featured in automation mode allows for flying cutoff axis operations to be halted, whereas an apparent error causes the auxiliary outputs to switch off.
