R911245488

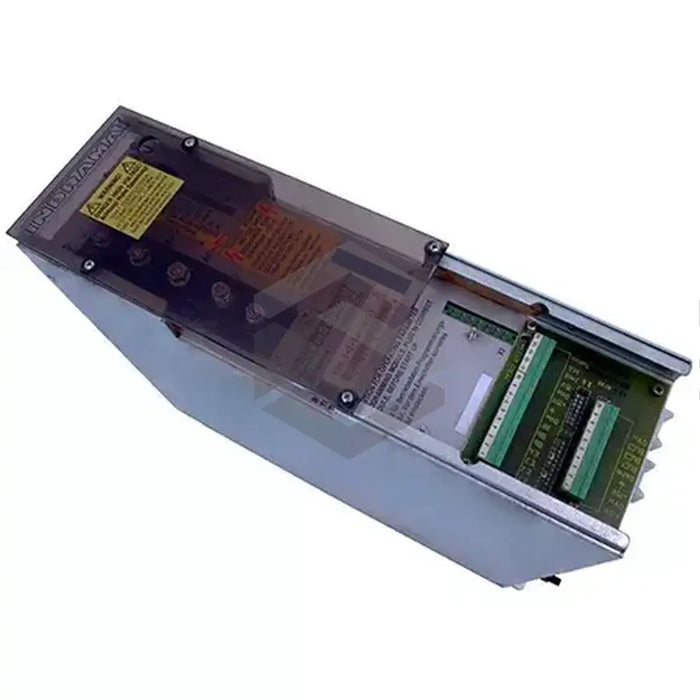

Produced by Bosch Rexroth Indramat, the R911245488 (TDM 1.3-030-300-W1-000) TDM series 3 servo drive module possesses a 30A current rating. It features a built-in fan that, in operation, cools the unit. The fan's rated connection voltage is internally-generated. The product has a storage and transport temperature range of -30°C to +85°C. The device's X6 connector is allocated for tacho-voltage connection. Additionally, the module's BS LED helps to monitor the current rating - remaining off when within limits while turning red if a short-circuit or overcurrent occurs with the attached motor.
Weighing in at 10kg, the product's dimensions are 7 x 34 x 40 cm (H x W x L). Compatibility is with the manufacturer's MAC 71 to MAC 160 range of servomotors and the design includes an X1 (bus voltage), X2 (MOD module) connector, two busbars (L+ and L-), and two plug-in terminal rows. Power connections to surrounding equipment are facilitated by L+ and L- terminals. Connections to the relevant three-phase motor utilize A1, A2, and A3 terminals. The module conforms to Class C insulation per DIN VDE 0110 standards. Status of the module is indicated by the green Bb LED. In a master-slave setup, both units are commissioned simultaneously. The presence of faults is tracked by the green Bb and Power LEDs.
