R911246196

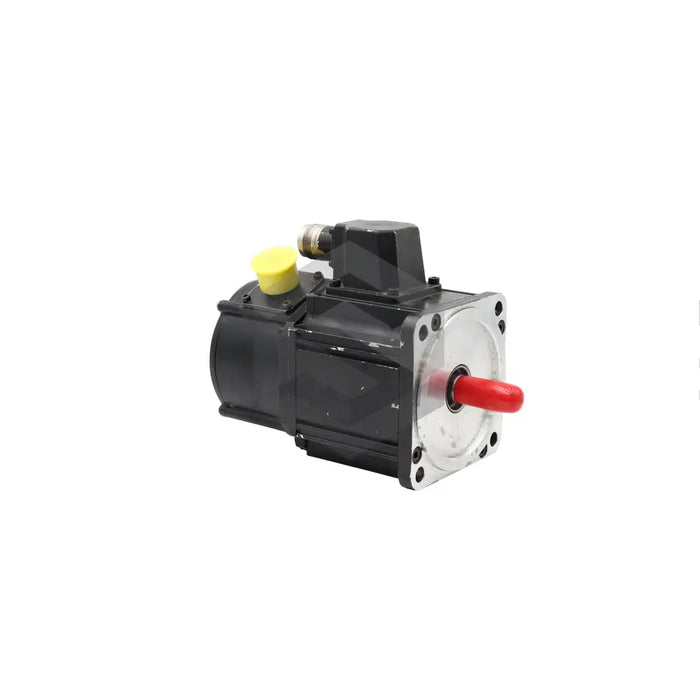

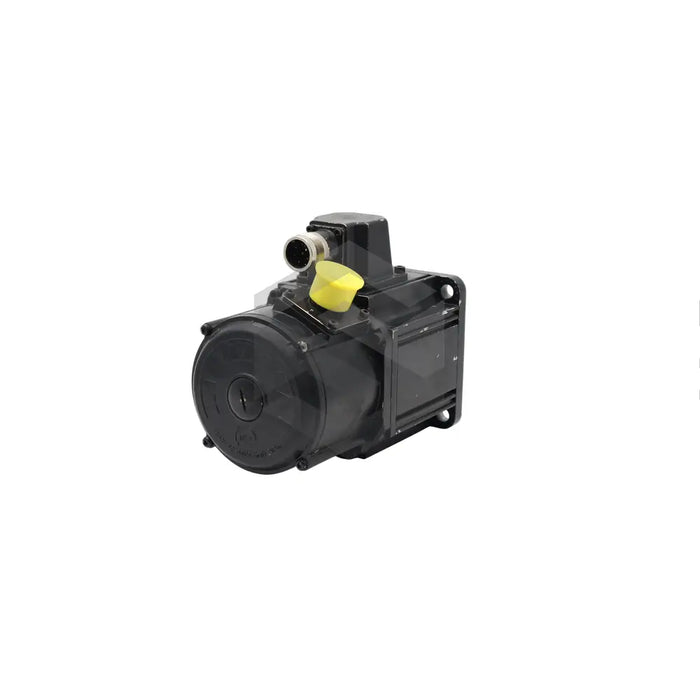

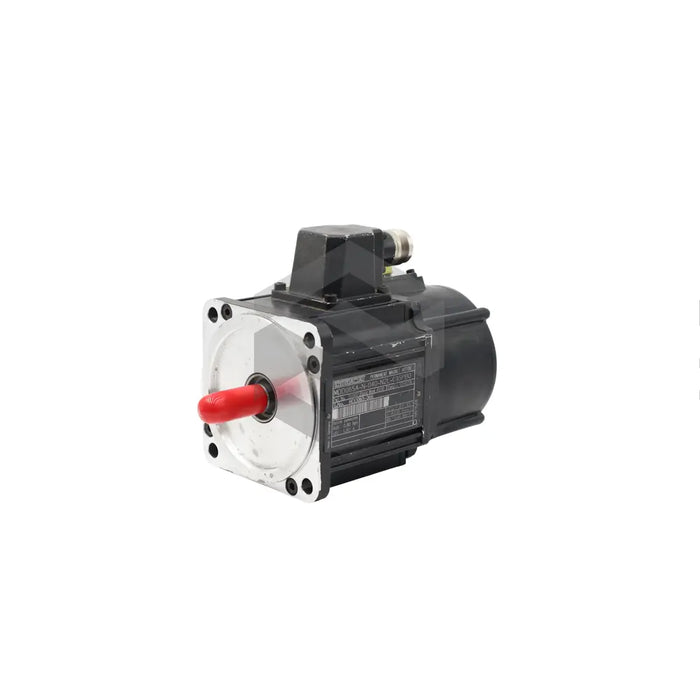

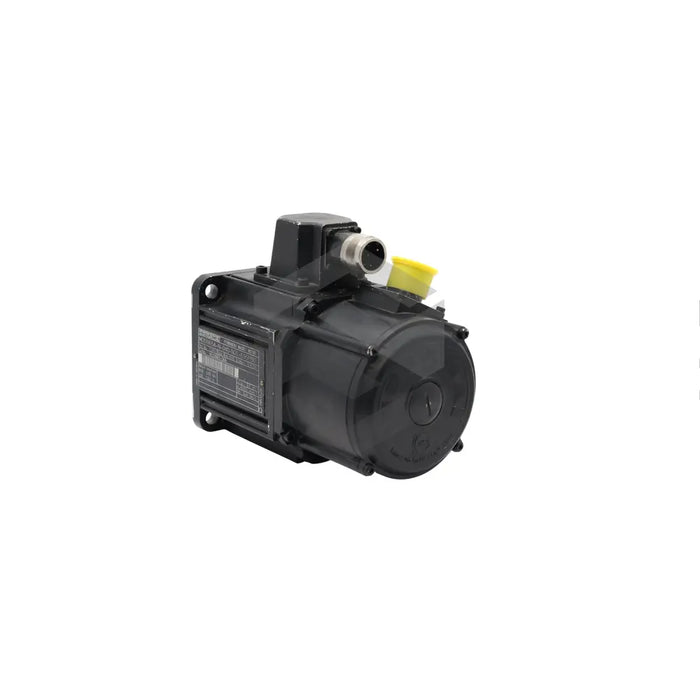

The R911246196 (MDD065A-N-040-N2L-095PA0) digital AC servomotor is a product of Bosch Rexroth Indramat, size code 065. Designed principally for use in roller feeds for punching and pressing operations, this device integrates electronic commutation and exhibits a 20.3mH winding inductance. A key feature of the motor is its brushless design, promoting maintenance-free operation. The motor temperature is regulated by a sensor within the windings, with efficient heat conduction mechanisms from the stator windings to the external motor housing wall. In addition, the motor offers protection against dust and displays a reduction in performance if the stipulated temperature or installation elevation limits are surpassed.
The motor demonstrates stable operation under weatherproof conditions, and sports a prime black coat resistant to chalky buildups, yellowing, and weathering. However, frequent cleaning with a steam cleaner may cause the coat to peel. Despite the motor’s shaft sealing ring, it does not fully prevent liquid from entering the housing. The product features a form-fitting shaft hub connection and theoretical maximum torque of 2.3Nm. The motor has a one-year backup support, with a shipping partnership via logistics companies like UPS and USPS. Whilst handling helical teeth drive pinions or using bevel gear pinions, caution should be exercised to prevent thermal stress or damage to the B side bearing respectively.
