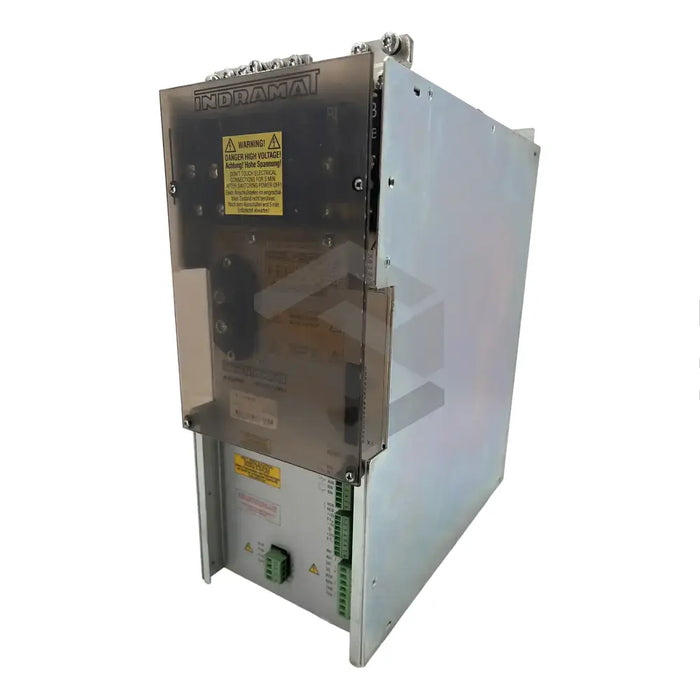

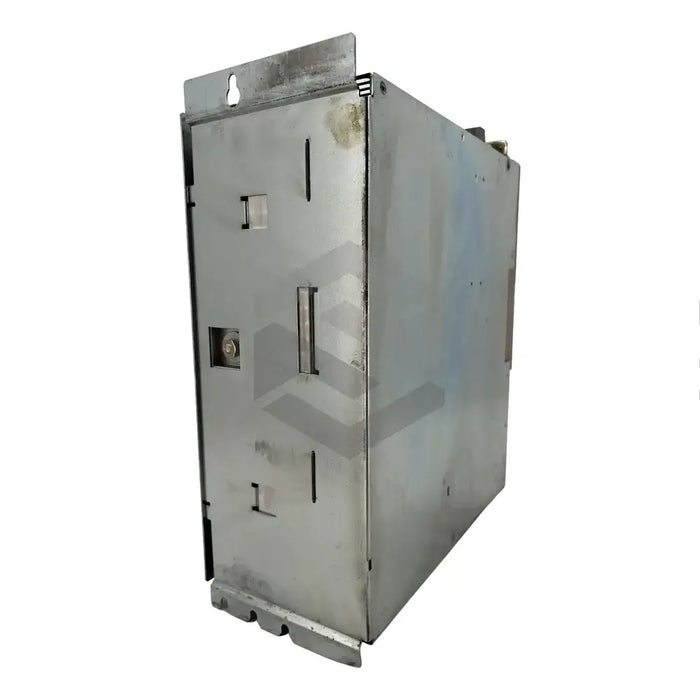

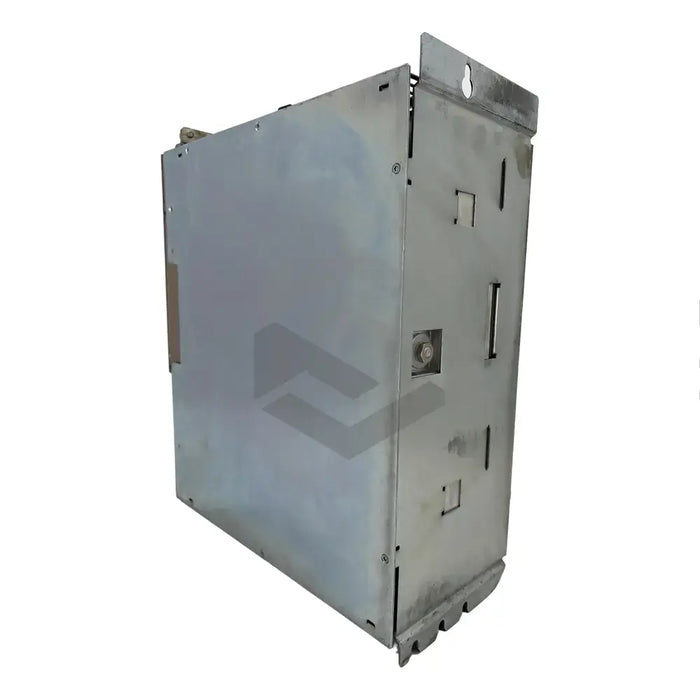

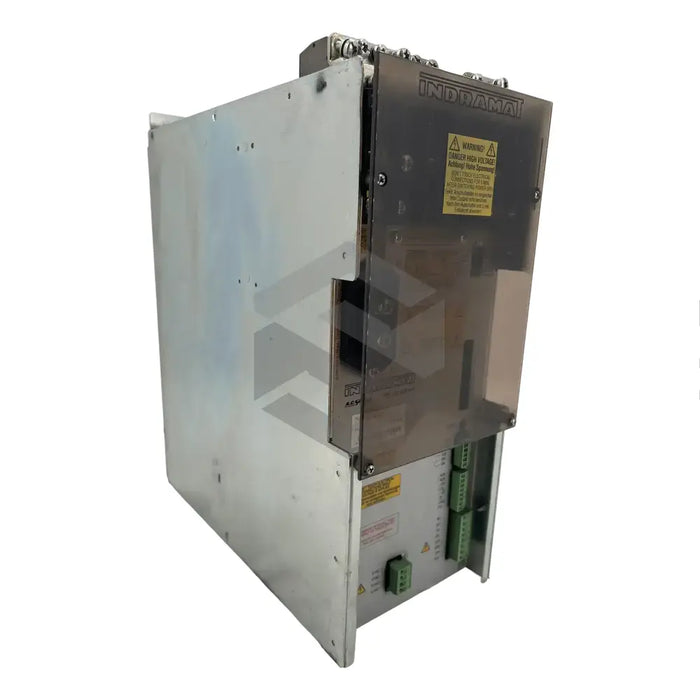

R911246503

Original price $3,870.90 - Original price $3,870.90
Original price
$3,870.90
$3,870.90 - $3,870.90
Current price $3,870.90
In Stock, Ships Today
Request a quote
The R911246503 (TVD 1.2-08-03), a product by Bosch Rexroth Indramat, exemplifies the brand’s unwavering dedication to high-quality and enduring motion control aftermarket accessories. Renowned for their robustness and sustainable performance, these accessories promise safety and reliability once installation and operation guidelines are adhered to. The range includes servo drives, drive controllers, motors, programmable modules, power cables and electronic controllers. The R911246503 (TVD 1.2-08-03) supply module is limited to optimal operation within certain ambient conditions and parameter values. The Specifications for the R911246503 (TVD 1.2-08-03) supply module indicate a permissible relative humidity of 95% and an absolute humidity level of 25g of water/m3 LuFt. The module features IP10 protection per DIN 40 050 and is resistant to contamination from non-conductive dirt and vapor condensation. It operates optimally at temperatures between +5 to +45°C, but can withstand -30°C to +85°C during transportation and storage. When installing the unit, ensure it remains below 1000 meters above sea level. The recommended input voltage is within 3 x 380 to 480 ± 10% V, and the power input should not exceed 300 W. The DC Bus voltage sits at 320 V ±5%, with a continuous power output of 7.5 kW.
30 Day Warranty
Technical Specifications
  • DC Bus Voltage: 320 V +/-5%
  • Input Voltage: 3 x 380 to 480 +/- 10% V
  • Product Purpose: Servo Drives, Drive Controllers, Asynchronous Motors, Gearing, Low Inertia Motors, Programmable Modules, Power Cables, Electronic Controllers
  • Frequency: 50 Hz to 60
  • Model: TVD 1.2-08-03 Supply Module
