product Main (Front Left) image of R911246504

R911246504

by Bosch Rexroth Indramat
$2,949.87 - $2,949.87
$2,949.87
$2,949.87 - $2,949.87
$2,949.87
In Stock, Ships Today

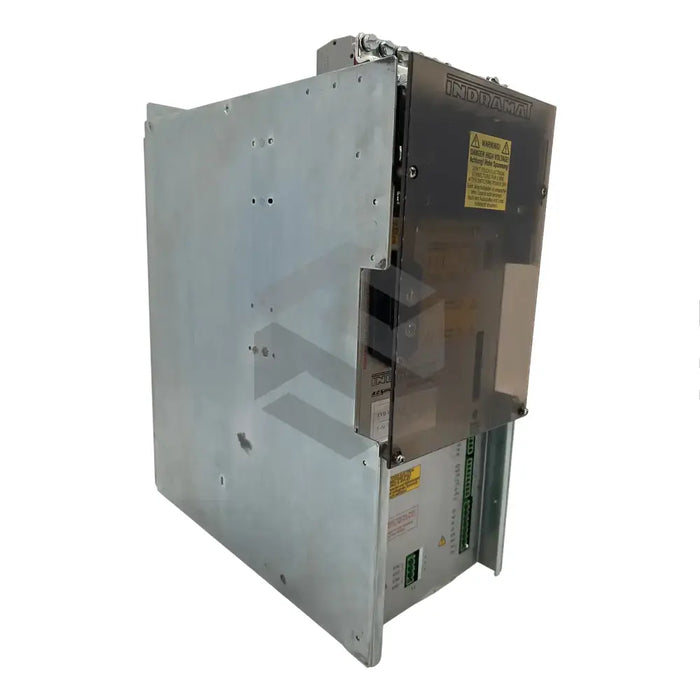

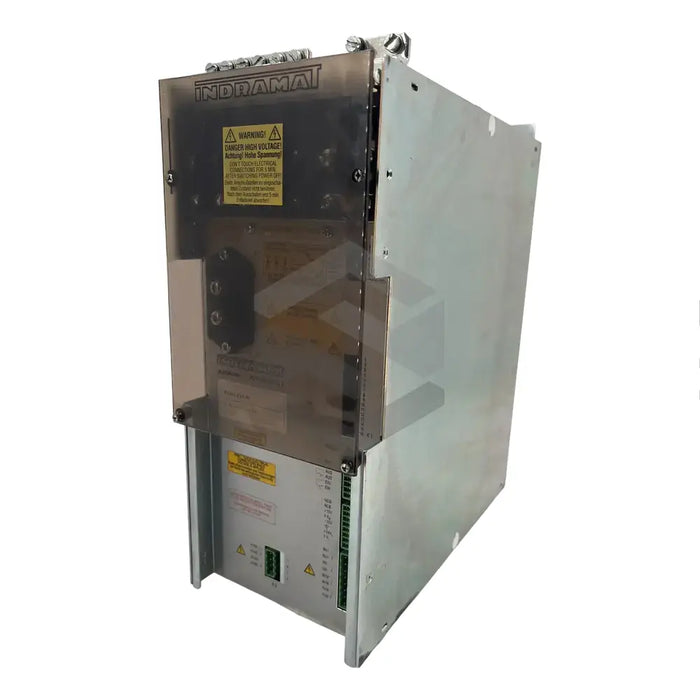

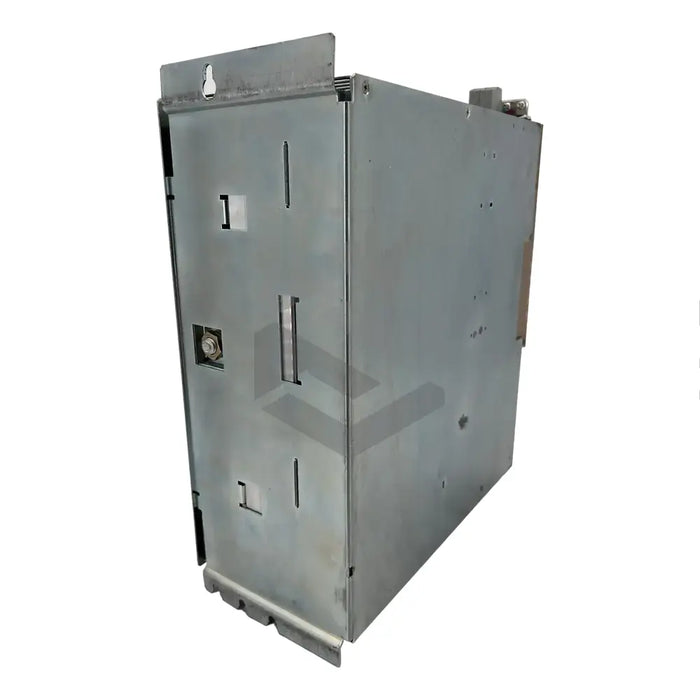

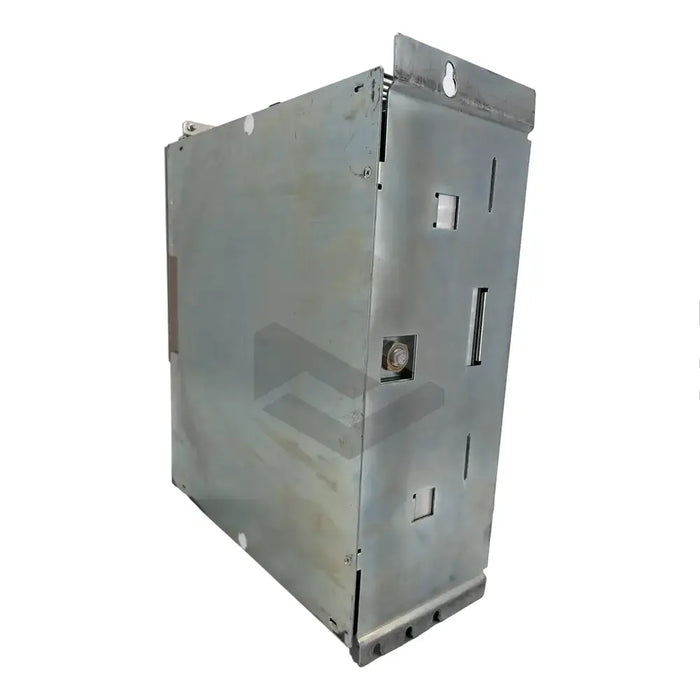

The R911246504 (TVD 1.2-15-03) is a power supply module produced by Bosch Rexroth Indramat, customized to deliver an output of 300 volts. This Series 1 Design 2 TVD Series module can be connected to a constant direct current supply of 15KW. This device can leverage the AC Drives from a wide range of Indramat series. The R911246504 (TVD 1.2-15-03) includes a set of diagnostic display lights located on its front panel. Comprising four sets of red and green lights, this indicator system is designed for efficiency monitoring. Any overcurrent situations or temperature or voltage surges will automatically trigger the red LED light, signaling potential issues. To maximize productivity, Bosch Rexroth recommends having a spare module ready for immediate replacement. This module is not power-regenerative by design; therefore, it necessitates an appropriate braking resistor. In addition, the R911246504 (TVD 1.2-15-03) comes equipped with a NAM 1.2-15 filter module, pre-sized at the manufacturing stage.
30 Day Warranty
Technical Specifications
  • Voltage Alert: Red LED light
  • Overcurrent Alert: Red LED light
  • Diagnostic Display: Four sets of Red and Green LED lights
  • Output: 300 Volts
  • Product Type: Power Supply Module
