R911247116
The R911247116 (CLM 01.3-X-E-2-0) is a robust control unit designed by Bosch Rexroth Indramat. Primarily intended for intricate production machinery, this unit ensures precise control over the servo system's functionality, enabling flawless operation for up to four-axis positioning control. Handling equipment, packaging machines, automatic bending machines, and linear gantry robots are just a few examples of its applicable use. The unit's remarkable durability eliminates frequent maintenance interruptions while the energy-efficient design reduces operating costs. Additionally, the R911247116 (CLM 01.3-X-E-2-0) is equipped with self-diagnostic capabilities, utilizing multiple input and output connections and sensors to independently identify system errors.

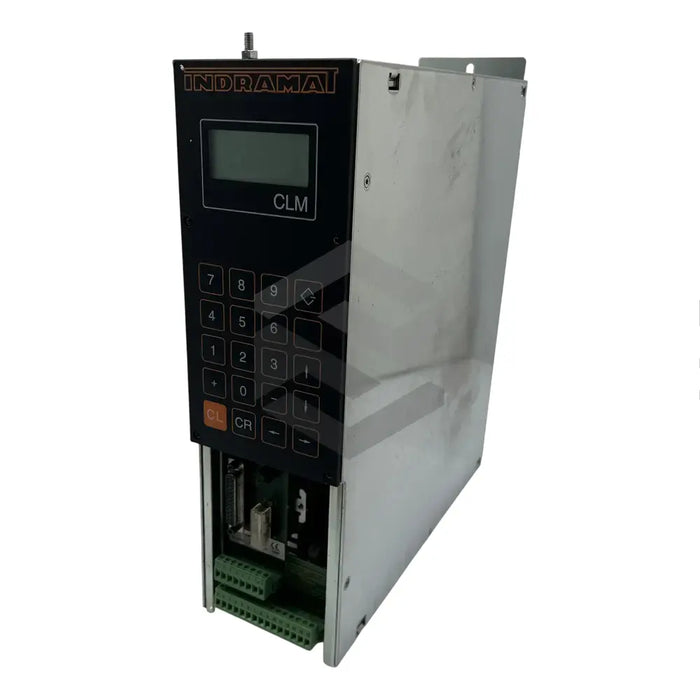

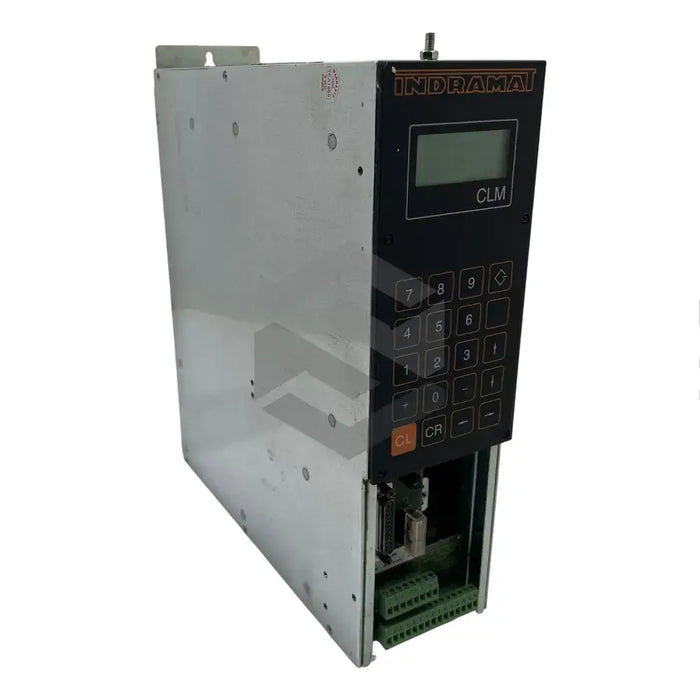

The control unit embeds a 6800 Motorollar microprocessor and a 265K EPROM, which store up to 3000 program blocks to regulate information processing within the servo system. The unit's memory card, powered by an in-built battery, retains information after shutdown. Operators can interface with the R911247116 (CLM 01.3-X-E-2-0) via 20 pressure-sensitive keys on the front panel, with an LCD providing error reporting and machine fault detection. This front panel can be installed up to 2 meters from the control unit, thereby offering comfortable accessibility. However, only qualified technicians should handle the configuration or repair of this intricate device to avoid hazardous malfunctions.
