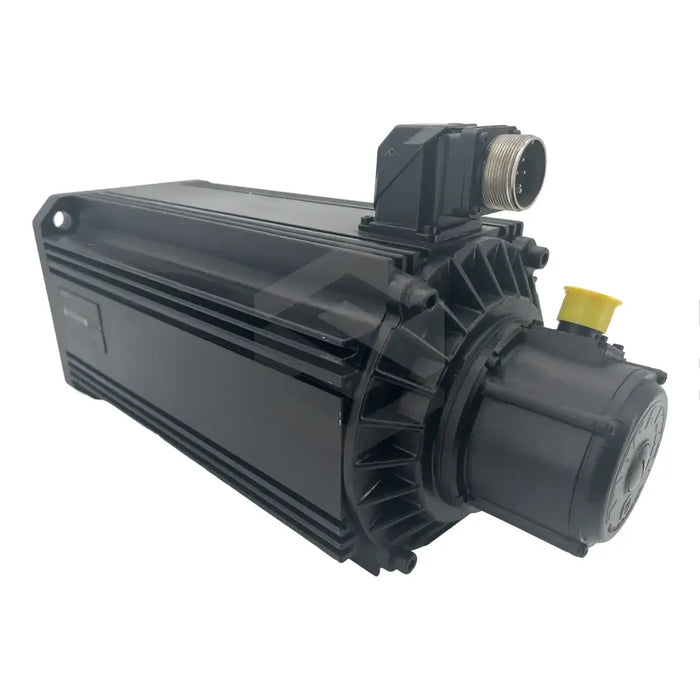

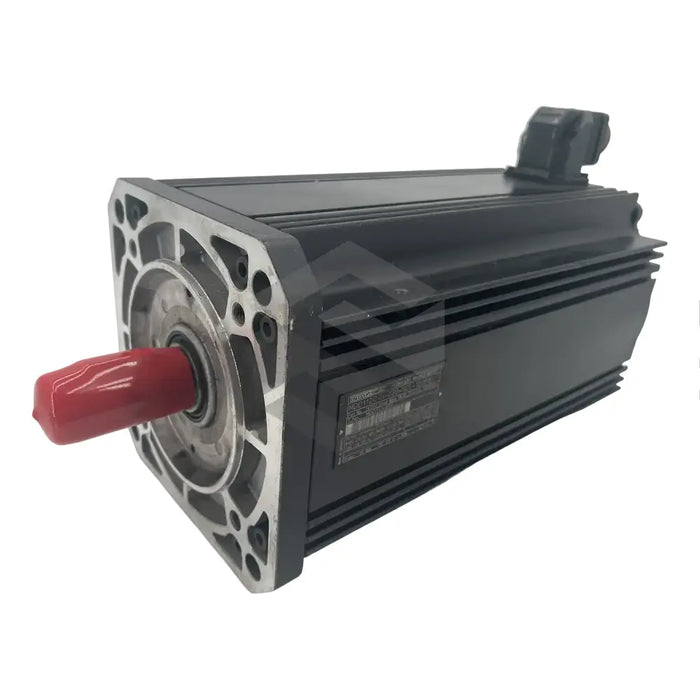

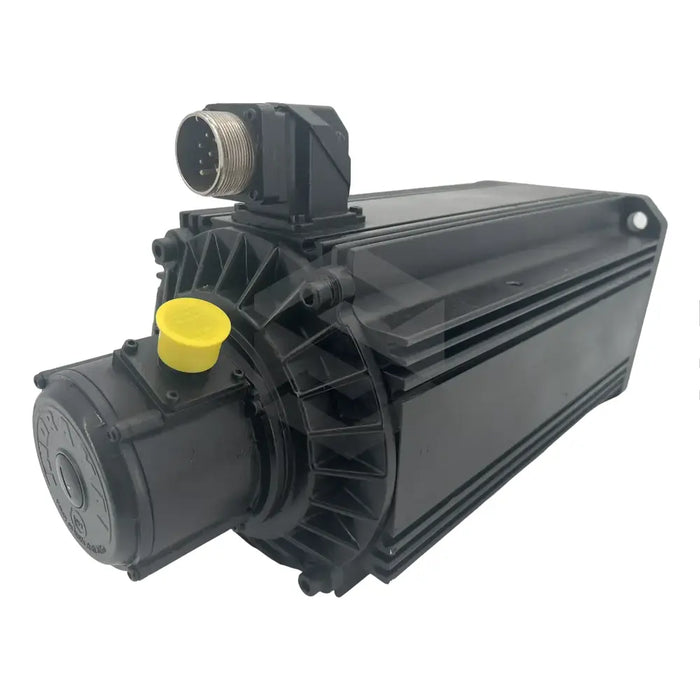

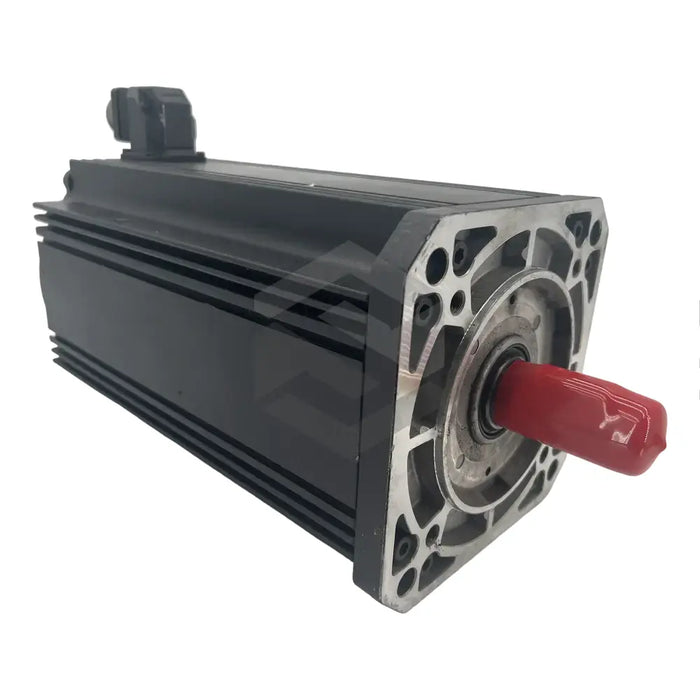

The R911247353 (MDD112C-N-020-N2L-130PB1) is a high-dynamics digital AC servomotor produced by Bosch Rexroth Indramat, characterized by a favorable torque-to-inertia ratio. Designed for operation within a 0°C to 45°C range, the motor offers protection against water penetration but should not be frequently cleaned with a steam cleaner as this may cause the housing coating to peel. The motor's optimal application is in printing, packaging, and textile machines, due to a built-in temperature sensor in its windings which allows for monitoring and preventing overload damage.
The motor performs at theoretical maximum torque of 97.3 Nm and facilitates continuous start-stop operations due to its high cyclic load capacity, making it well-suited for applications requiring high precision. Additionally, the product features an IP 65 degree of protection and a coating resistant to diluted acids and lyes. The motor also includes a 14 Nm blocking brake, a rotor with a 170 x 10-4 kgm2 moment of inertia, a sealing ring for its shaft, and lifetime-lubricated bearings. The overall length of the unit measures 462mm, and it supports a maximum installation elevation of 1,000m above sea level. It is notable that the device is optimally packed in military-grade packaging for safe transit.
30 Day Warranty
