R911249145

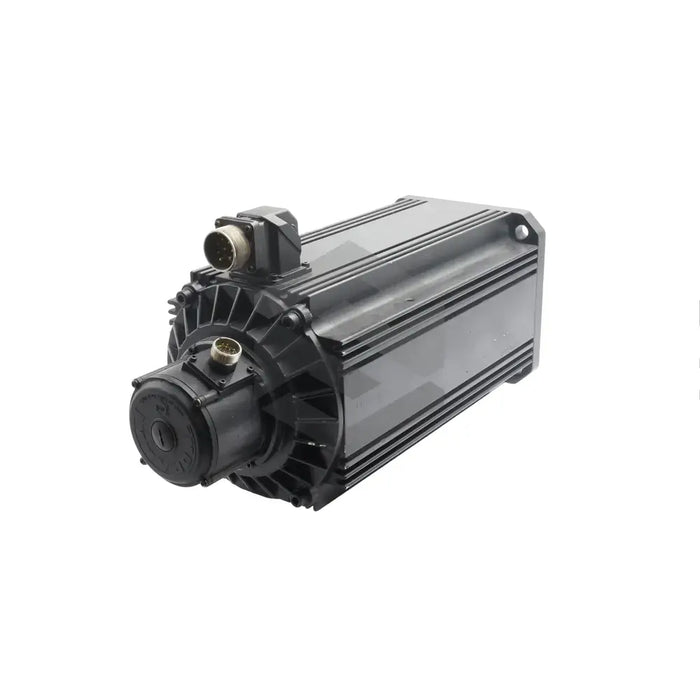

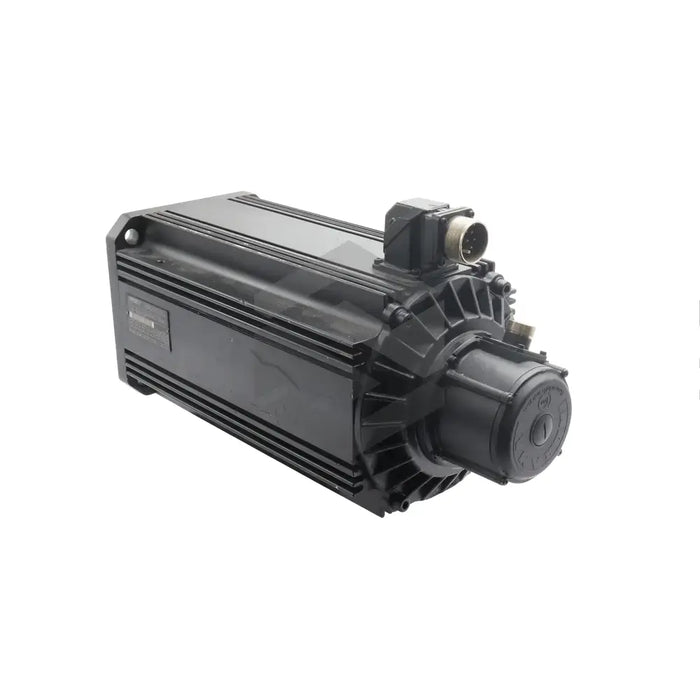

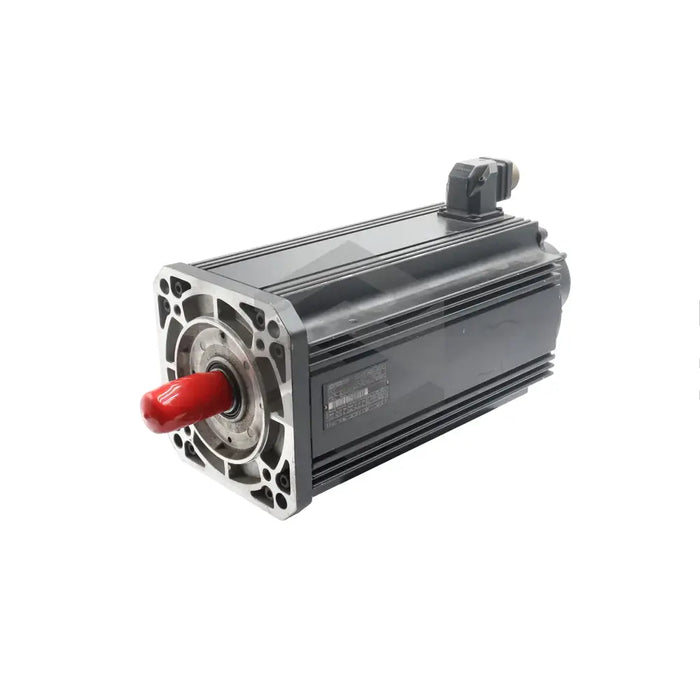

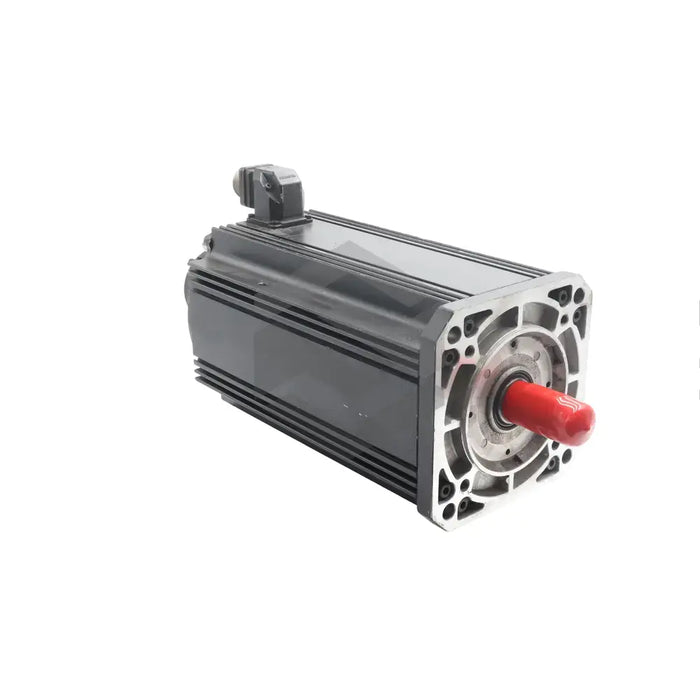

The Bosch Rexroth R911249145 (MDD112C-N-030-N2L-130PB0) is a digital AC servo motor renowned for its digital servo feedback capabilities. The motor, equipped with an encoder, monitors various parameters including speed and torque, supplying a continuous data stream to the drive controller. It ensures motor performance closely aligns with programmed benchmarks by adjusting the output based on feedback. This servo motor boasts a frame size of 112, length of C, and a nominal speed rating of 3000 RPM. It has a standard motor housing design and balance class, compliant with DIN VDE 0530 section 15 regulations.
Distinctively, R911249145 (MDD112C-N-030-N2L-130PB0)'s shaft incorporates a keyway and exhibits a standard design at the side B shaft end. It does not come with a holding brake, but one can be added if needed. The motor obtains power from the drive controller, connected via a cable socket on the side B housing. The motor adopts a flange mounting method, featuring a 193-millimeter flange size, 462-millimeter length, 130-millimeter centering diameter, and 32-millimeter shaft diameter. Its exposed shaft portion measures approximately 60 millimeters. The R911249145 (MDD112C-N-030-N2L-130PB0) is optimized for natural convection and surface cooling, operating effectively within 0 to 45 degrees Celsius and up to 1000 meters of elevation. Providing an IP65-rated protection class, the motor housing promises reliable performance.
