R911250261

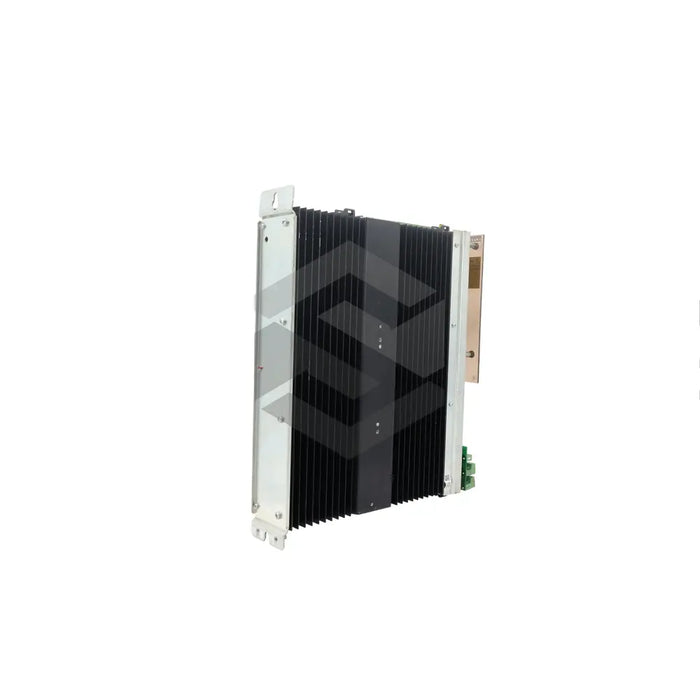

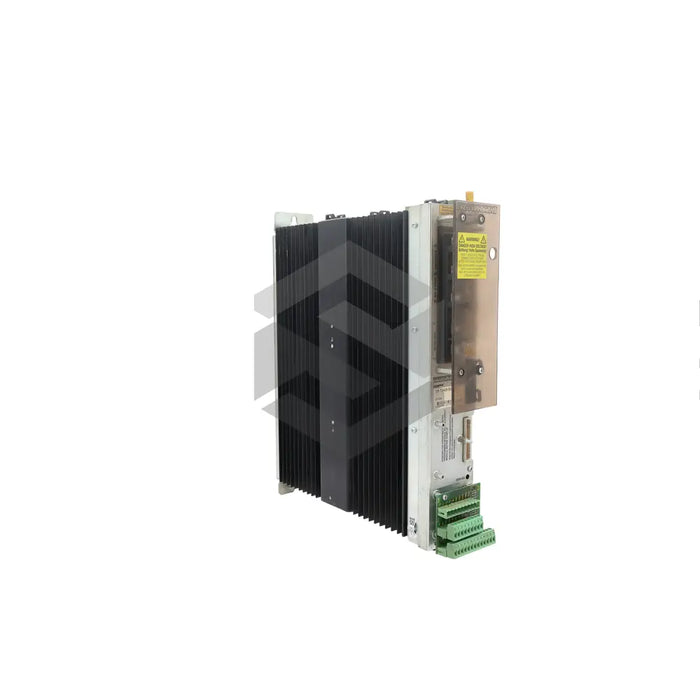

The R911250261 (TDM 7.1-015-300-W0), a top-of-the-line servo drive module, is manufactured by Bosch Rexroth Indramat. This advanced piece of tech is integral for precision motion control in industrial settings. Originating from the renowned TDM series, this module is superior for enhancing the functionality of MAC servo drives, specifically in regulating the speed and positioning of industrial motors. This model generates a 15 A peak current and operates consistently at 8 A, requiring a 300 V DC link voltage for normal operations. It thrives in environments with temperatures ranging from 5°C to 45°C.
Although the R911250261 (TDM 7.1-015-300-W0) functions beyond 45°C, the performance rates decrease per degree from 45°C to 55°C. Established to meet the standards of humidity class F, the drive can handle higher temperatures due to the use of class C insulation materials in its design. However, its efficacy declines at altitudes more than 1000 meters above sea level. A notable feature of this model is its starting lockout mechanism that allows for independent control of the drive’s axes, negating the need for a resource-intensive mains contactor. This feature not only enhances the operational efficiency but also minimises the risk of mishaps.
