R911252442

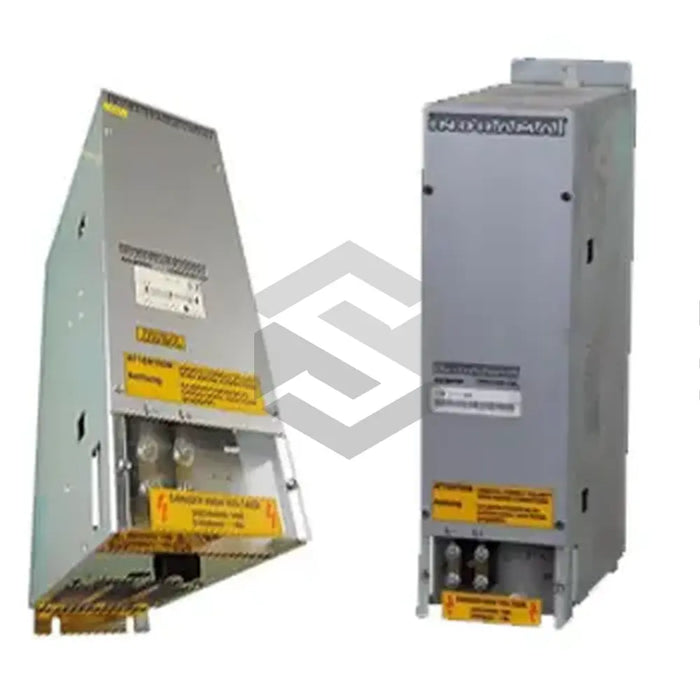

The Bosch Rexroth Indramat R911252442 (TCM 2.1-02-7) is a supplementary capacitor module designed for AC drive systems' power supplies. Featuring a capacitance of 2 mF, this module is chiefly used with the KVT power supply to decrease mains power supply noise. It is particularly efficient in applications where the link circuit power escalates up to 30 kW. Bosch suggests using a cable with a maximum 10mm2 wire size for termination. The IP10-rated module enclosure measures approximately 355mm by 208mm by 100mm. The shipping weight is estimated around 7 kg. The R911252442 (TCM 2.1-02-7) can enhance the power supply performance to satisfy application demands when paired with other accessories like smoothing and commutation chokes and bridge capacitors.
To ensure the R911252442 (TCM 2.1-02-7) operates to manufacturer specifications, the surrounding temperature should sit between 41 and 113 degrees Fahrenheit. For transport or non-operational periods, nearby air temperature must be maintained between -22 to 185 degrees Fahrenheit. Installation beyond 1000 meter altitude isn't recommended due to potential performance degradation and derating. To achieve optimal functionality, the relative humidity should be 95% or less. Installation should only be undertaken by a trained, experienced professional to mitigate risks to humans and hardware.
