R911253377

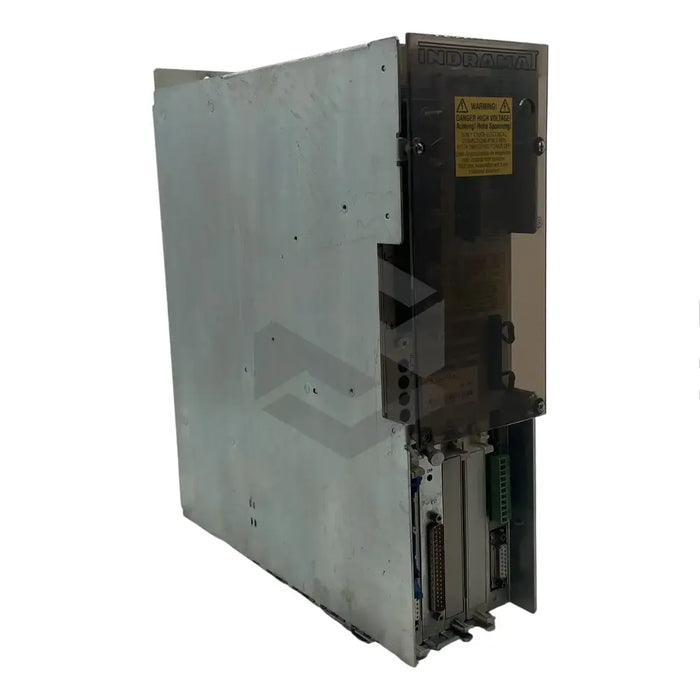

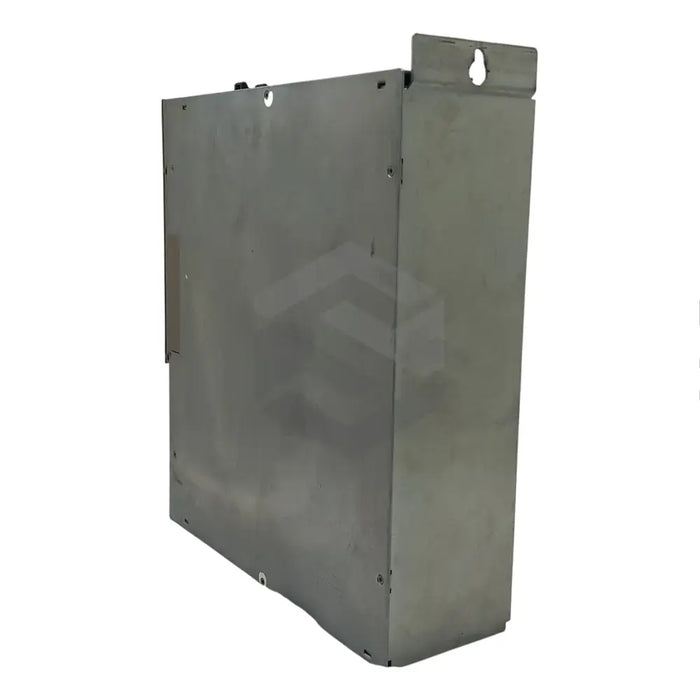

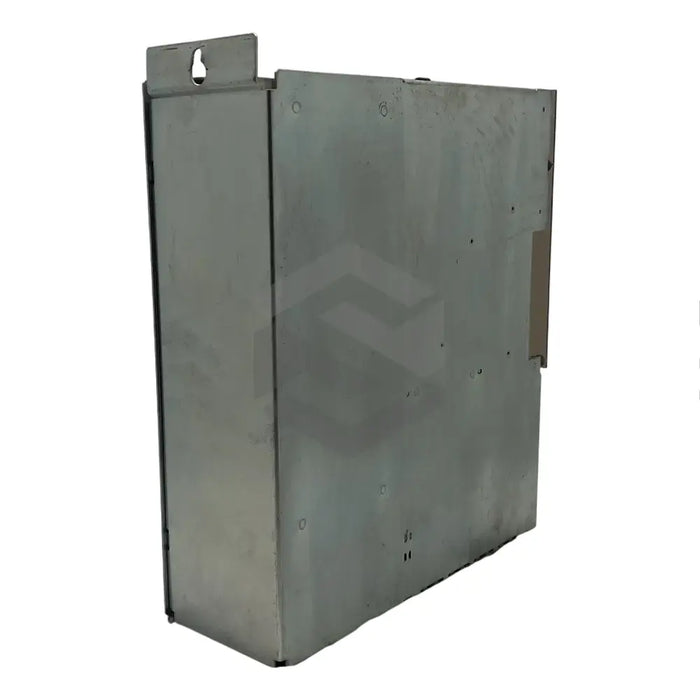

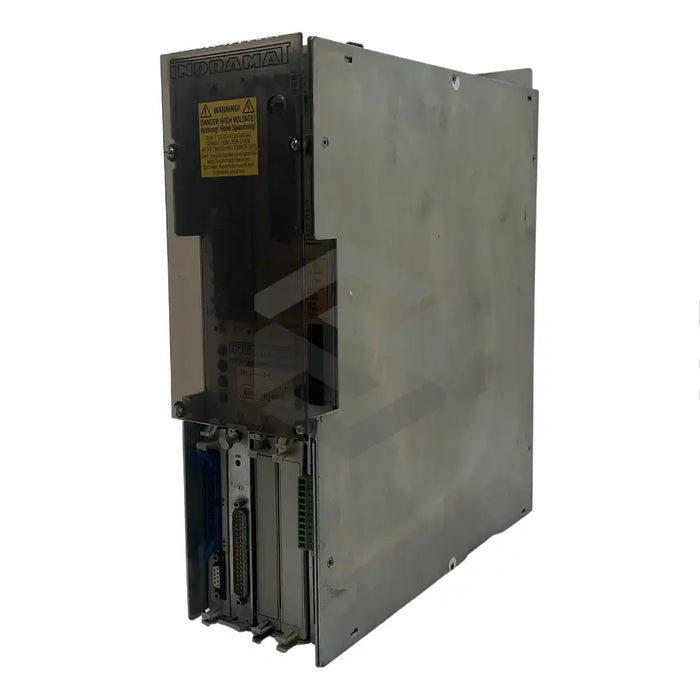

The R911253377 (DDS02.1-W100-DL01-00), a product of Bosch Rexroth Indramat, is an advanced industrial drive controller designed to facilitate precise automation control within an industrial servo system. Its robust housing enables it to perform reliably in challenging industrial environments where conventional devices struggle. With the ability to be adapted for various types of machinery, this drive controller features special configuration slots (U1 - U5) to accommodate auxiliary plug-in, software, and firmware modules. Additionally, the device is marked with safety signs and symbols to warn operators against improper handling of potentially hazardous components.
Operating with a rated current of approximately 100 amperes and a bus input voltage of about 300 volts, the R911253377 (DDS02.1-W100-DL01-00) also includes a unique axis positioning command communication module. This ensures seamless digital communication between the controller and the rest of the servo system. However, misuse of the controller can trigger potentially dangerous motor movement. The controller's internal temperature is managed through forced ventilation, utilising an internal fan and heatsink. As the existing IP10 protection class of the controller's housing may be inadequate, it's recommended to install the controller in a control cabinet with at least an IP54 protection class.
