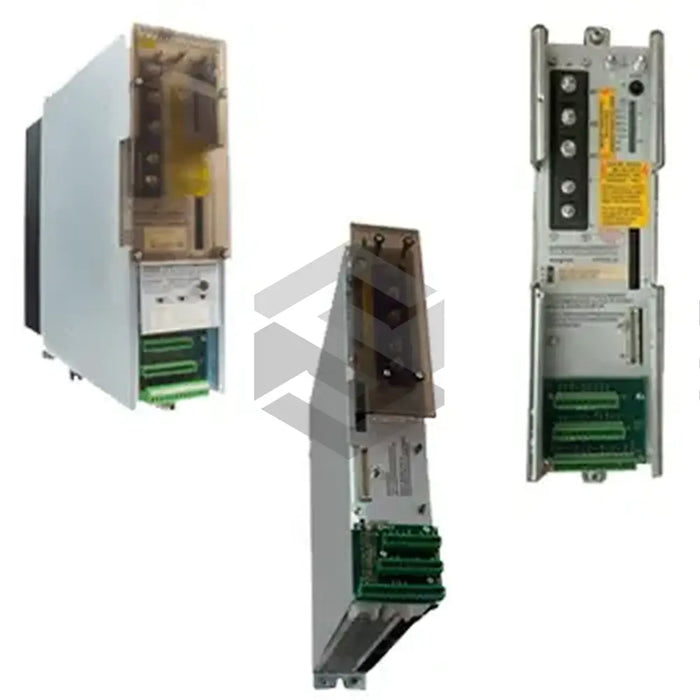

R911253924
The R911253924 (KDS 1.3-150-300-W1), created by Bosch Rexroth Indramat, is a key component of the MAC series of servo motors. These motors, designed specifically for high-accuracy industrial applications, offer robust short-time acceleration moments and easily diagnosable issues with front panel status lamps. The KDS drives in these motors support a MOD programming module which hosts pre-set adjustment parameters to minimize calibration procedures. This drive module connects to the Indramat servo drive module which interfaces with the primary motor.
As a component of the KDS1 series, the R911253924 (KDS 1.3-150-300-W1) exemplifies rapid and efficient connection capabilities through its front-facing plug-in terminals. This servo drive module requires installation and operation within a control cabinet and employs cold-running technology to dissipate heat loss externally, preventing excessive heat build-up. An external fan aids in maintaining proper cabinet ventilation. Boasting a current rating of 150 Amperes and an optimal link circuit voltage of 300 Volts DC, the R911253924 (KDS 1.3-150-300-W1) offers diligent performance monitoring via front panel LEDs. Compatible with ambient temperatures of 5 to 45 degrees Celsius inside the control cabinet, it's advised that heat-producing devices are not positioned directly beneath the module to avoid the ambient temperature exceeding 55 degrees Celsius.
