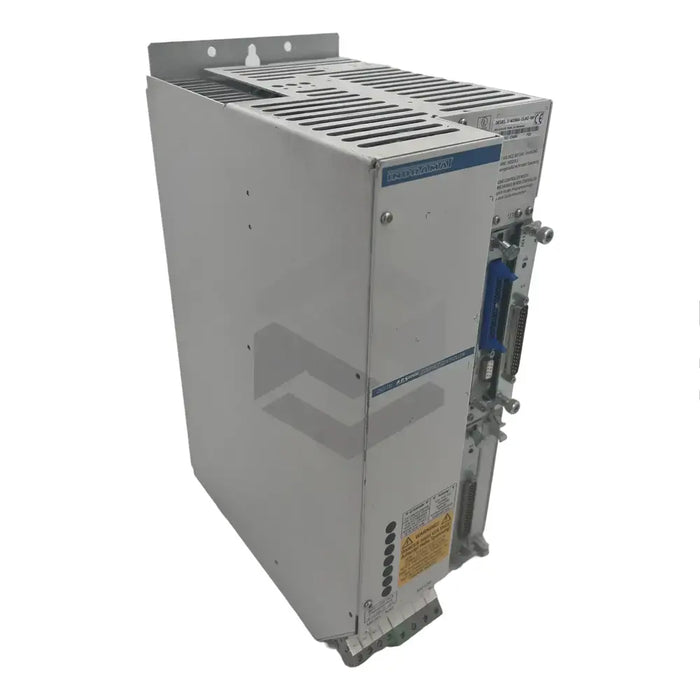

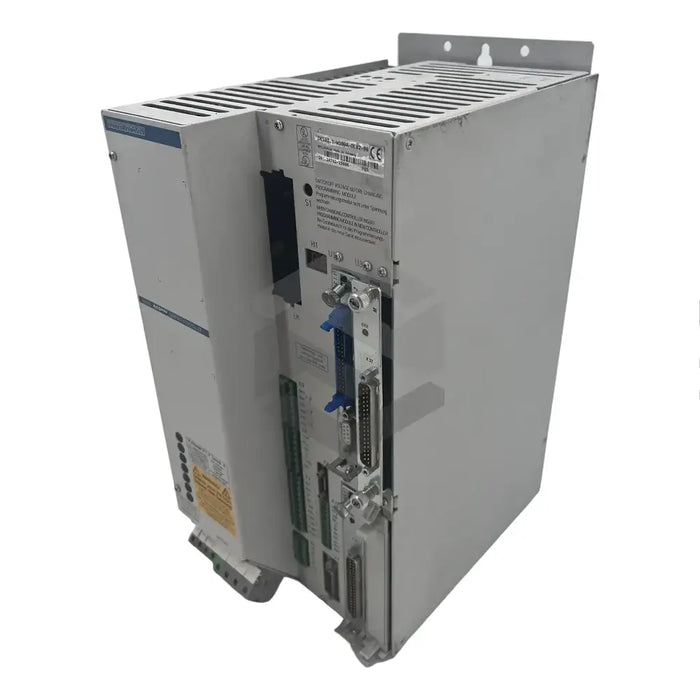

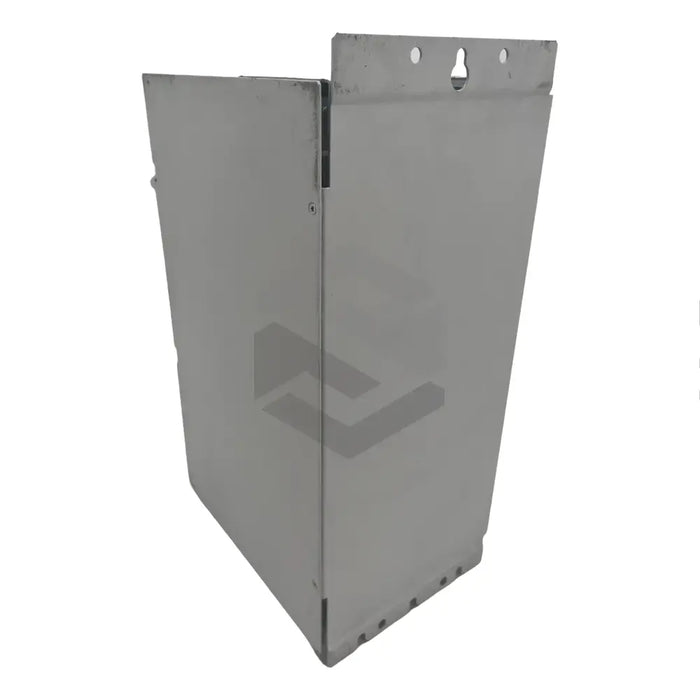

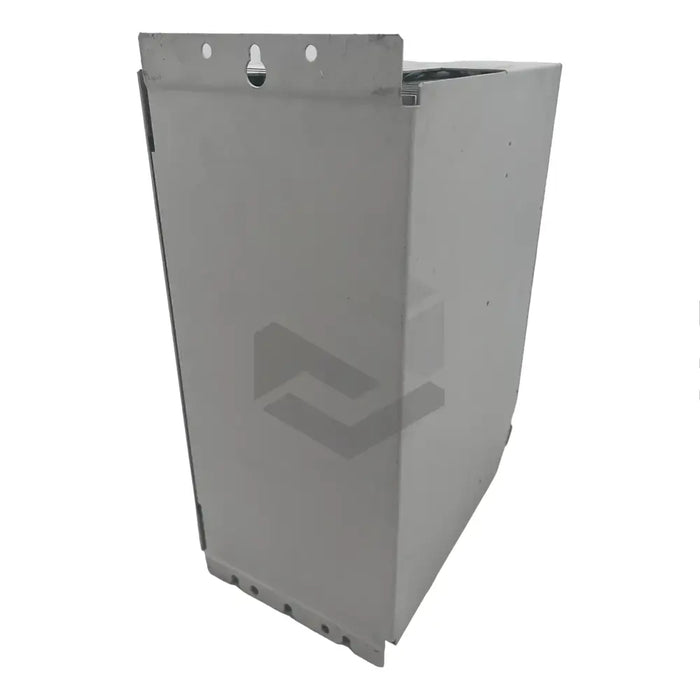

R911254116
The Bosch Rexroth Indramat R911254116 (DKS01.1-W100A-DL02-00) is a premier AC DKS servo drive, displaying remarkable compatibility with MDD motors. With a structure configuration denoted as DL02, the device carries an average weight of roughly 11 kg or 24.25 lbs. Boasting a DSF encoder type, this servo drive can generate a peak current of 100 amps and sustains a steady current of 50 amps. Its three-phase voltage link has an input range of 3 x 230V (±10 percent), and it includes a continuous AC servo bleeder power of 0.5 Watts, which can peak at 18 Watts.
Operationally, the R911254116 (DKS01.1-W100A-DL02-00) functions effectively within a temperature range of +5 to +45oC, but can sustain up to +55 oC at reduced specifications. For optimal preservation during transit and storage, keep temperatures between +30 to +85oC to evade overheating and moisture condensation internally. The cooling unit needs strategic installation to prevent condensation from affecting the drive's components and the variable temperature cooling units should not exceed 40 degrees. Adhering to the insulation class C as per DIN 570 110, the drive is protected by a control cabinet satisfying IP10 standards according to DIN 40 050. This safeguards the unit from solid penetrations sized over 50mm but does not protect it from water damage.
