R911254305

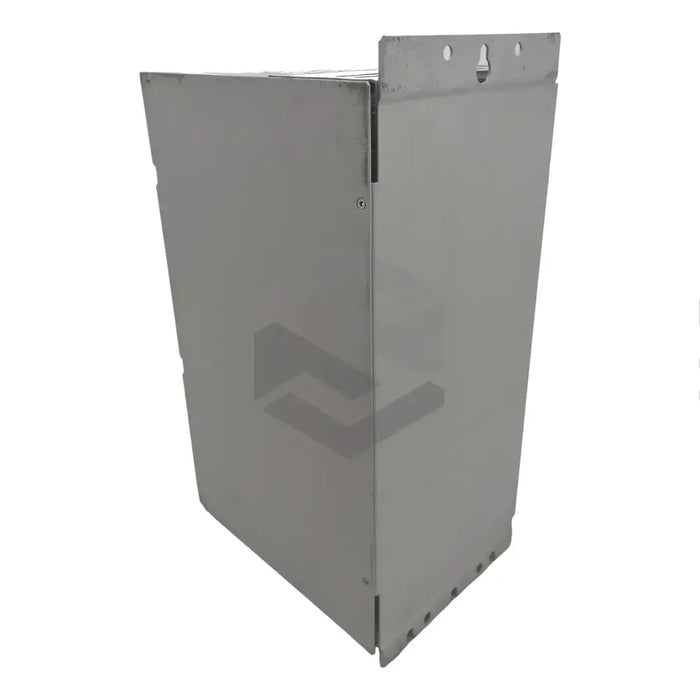

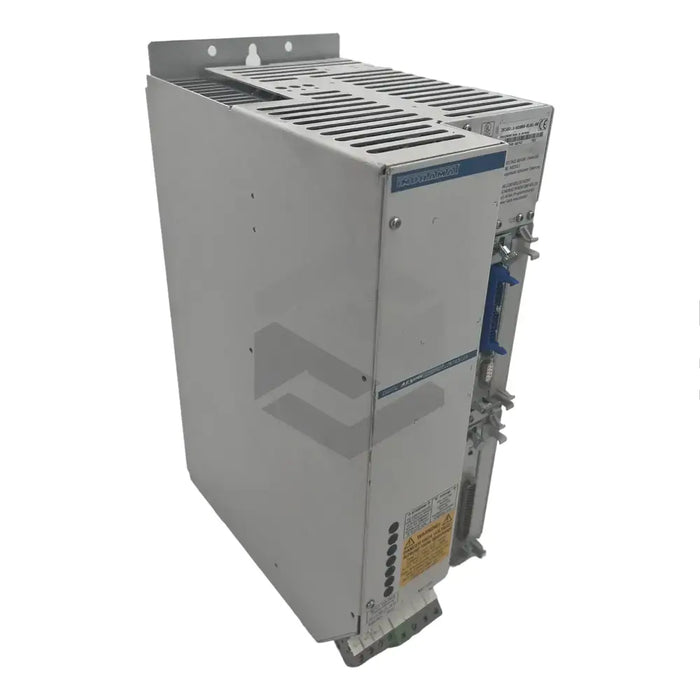

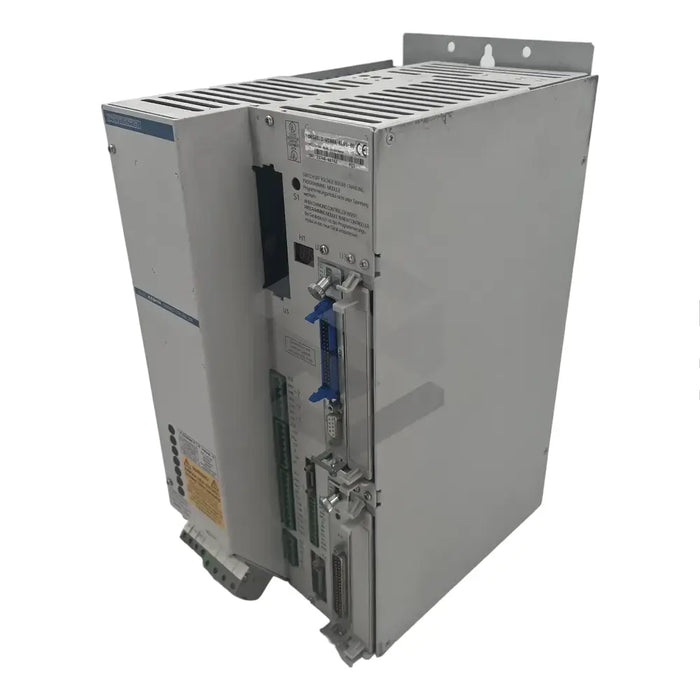

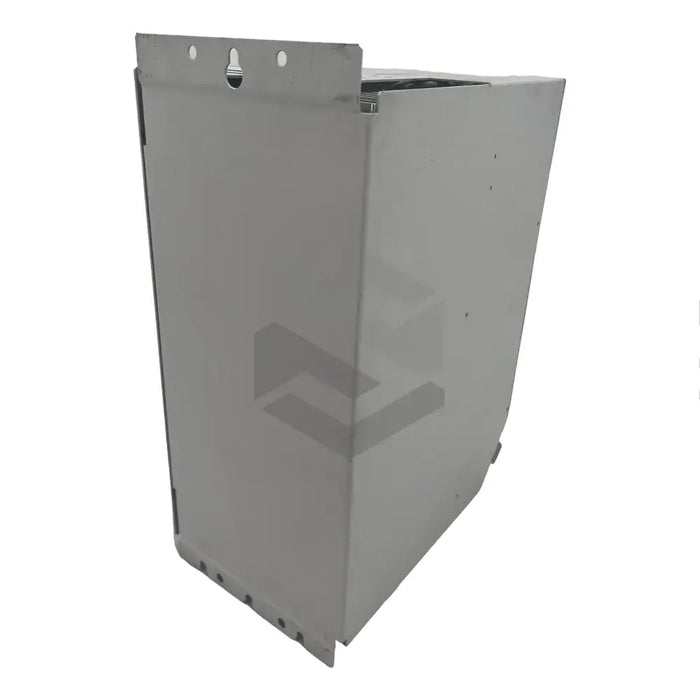

The product to be discussed is designated as R911254305 (DKS01.1-W100A-RL01-00), a digital servo drive produced by Indramat Bosch Rexroth. This servo drive exhibits a maximum rated current of 100A and delivers standard noise emission with 50A and 100A rated currents. The R911254305 (DKS01.1-W100A-RL01-00), with its customizable basic unit, can be customized to fit various applications by installing different cards into the slots from U1 to U5, thereby enhancing its versatility.
The R911254305 (DKS01.1-W100A-RL01-00)'s basic unit is composed of the DDS 2.1-....-R, requiring three different cards to be fitted into its specific slots. The slot U1 requires either the DLC 1.1 or a Single-Axis Position Card, furnishing the servo drive with standalone single-axis position control capacities, supporting up to 3000 program blocks. Slot U2 houses the DEA 4.1, an auxiliary plug-in card for exchanging binary signals with programmable controllers. Slot U5 accommodates the DSM 2.1-C11-01.RS software module. However, slots U3 and U4 do not require any plug-in cards. The servo drive also comes with an integrated protective mechanism and features an inbuilt dynamic braking system. In the occurrence of power or system malfunctions, the servo drive will perform the error reaction set in its program, and also ensures motor holding brake is integrated within the unit.
