R911254366

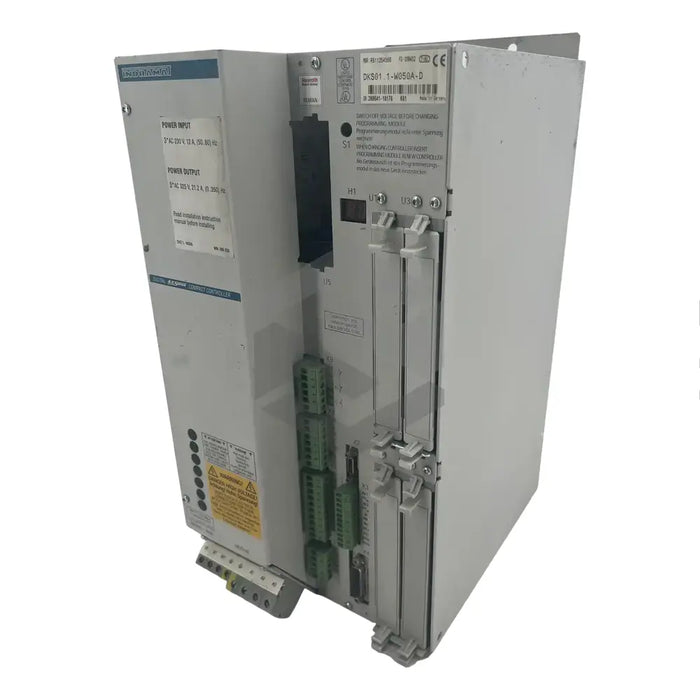

The Bosch Rexroth Indramat R911254366 (DKS01.1-W050A-D) is part of the DKS line of servo drives, equipped with an incorporated power supply and designed to connect directly to a three-phase 230V source. It responds to drive, power, or system faults with an automatic pre-set error reaction, and includes an alphanumeric display for easy troubleshooting. The drive—with a rated and peak current of 50A—functions as part of a complete drive system when paired with a MDD digital servo motor. It includes five slots for auxiliary plug-in cards when configured.
The servo drive showcases a configuration label indicating installed cards and operates with a PWM frequency of 18kHz. While active, it experiences power losses in both its power and electronics sections. The device meets Class F DIN 40 040 humidity standards and requires placement within a closed housing or control cabinet for protection against dust or solid foreign objects larger than 50mm. Its U, V, and W terminals are designed for a 4mm2 cable cross-section. The R911254366 (DKS01.1-W050A-D) is also equipped with a DSF type encoder, weighs approximately 11kg, and can be globally shipped.
