R911254614

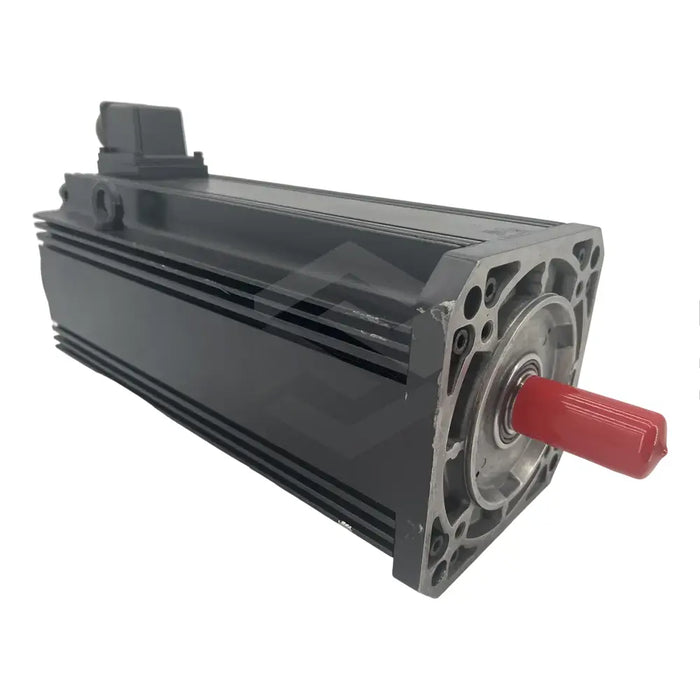

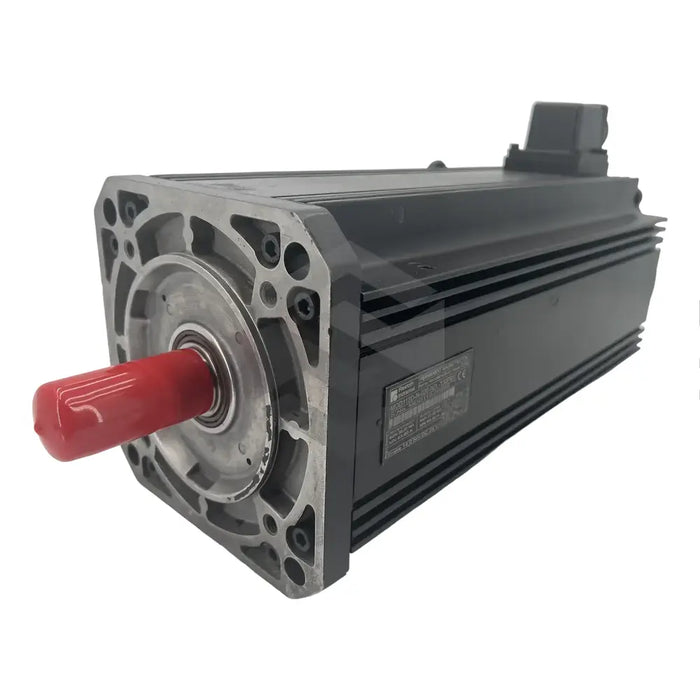

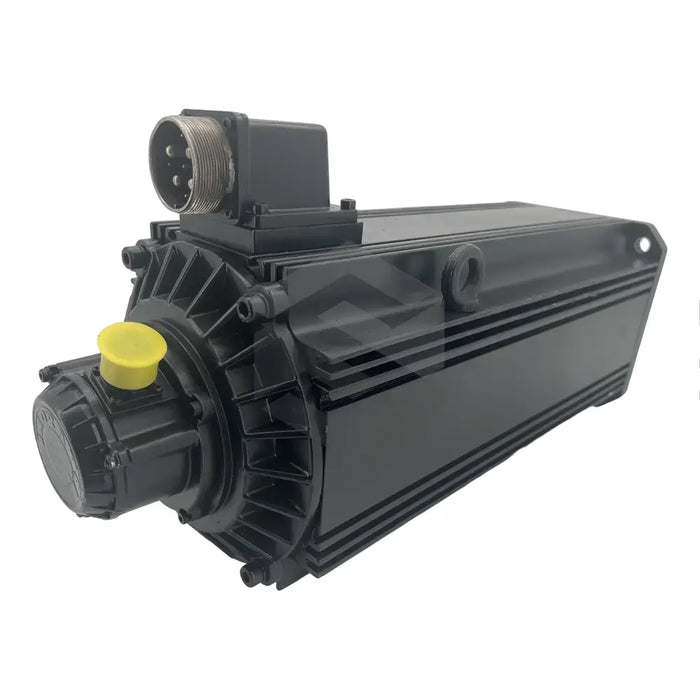

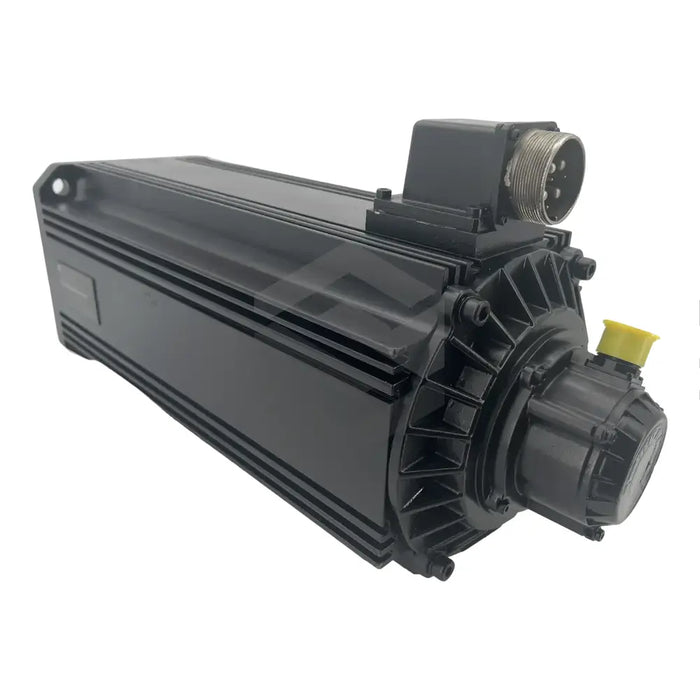

The product under discussion is the R911254614 (MDD112D-N-020-N2L-130PB1), an AC servo motor manufactured by the renowned Bosch Rexroth Indramat. This company is recognized for its industrial-grade servo motors, synchronous and spindle motors, drive controllers, digital controller cards, and frequency converters.
The R911254614 (MDD112D-N-020-N2L-130PB1) model is an IP65 compliant, high-performance servo motor. This highly reliable motor is designed to operate at a maximum height of 1000 MSL without compromising performance. The motor also showcases reduced radio frequency interference and delivers a steady torque of 38 Nm, utilizing a constant current of 43.8 A. Weighing 59 kilograms, this model offers a maximum torque of 134.6 Nm and operates at a high rotational speed of 2000 rpm. Furthermore, this unit is equipped with a holding brake that has clamping and release times of 30 and 70 milliseconds, respectively. The operating temperature range is from 0-45 degrees Celsius and installation must be done by a trained professional. Encased within the housing is a power connection located on the B side.
The R911254614 (MDD112D-N-020-N2L-130PB1) model comes complete with an output shaft integrated with keyways coupled with a digital servo feedback system, intended to regulate rotor speed and position. The servo motor also features an impressive thermal time constant of 120 minutes and is insulated to class F standards. To maximize performance and prevent unwanted vibrations, the motor should be accurately positioned within the machine in question and paired with a matching drive controller.
